The MAX38640–MAX38643 are nanoPower family of ultra-low 330nA quiescent current buck (step-down) DC-DC converters that operate from 1.8V to 5.5V input voltage and support load currents of up to 175mA, 350mA, 700mA with peak efficiencies of 96%. While in shutdown, there is only 5nA of shutdown current. The devices offer ultra-low quiescent current, small total solution size, and high efficiency throughout the load range. The MAX38640–MAX38643 are ideal for battery applications where long battery life is a must.The MAX38640–MAX38643 family utilizes a unique control scheme that allows ultra-low quiescent current and high efficiency over a wide output current range. The MAX38642 excludes active discharge resistor in shutdown which allows the output to be regulated or held high by another source or by the charged output capacitor.The MAX38640–MAX38643 devices are offered in a space-saving 1.42mm x 0.89mm 6-pin WLP (2 x 3 bump, 0.4mm pitch), as well as a 2mm x 2mm, 6-pin µDFN package. All parts are specified over the -40°C to +85°C extended temperature range.Also see: nanoPower Technology › Design Solution: Make Your Small Asset Tracker Last Longer ›ApplicationsPortable, Space-Constrained Consumer ProductsSingle Li-ion (Li+) and Coin Cell Battery ProductsWearable Devices, Ultra-Low-Power IoT, NB IoT, and Bluetooth® LEWired or Wireless Industrial Products

The MAX38802/MAX38803 are fully-integrated, highly efficient switching regulators for applications operating from 6.5V to 14V input supplies that require up to 25A maximum load. These single-chip regulators provide a compact high-efficiency, power-delivery solution for precision outputs that demand fast transient response.The two devices have different programmability options (see Tables 3a and 3b for details) to enable a wide range of configurations. The programmable features include: internal/external reference voltage, output voltage setpoint, switching frequency, overcurrent protection level (OCP), and soft-start timing. Discontinuous current mode (DCM) operation can be enabled through pin-strapping to improve light-load efficiency.The MAX38802/MAX38803 include multiple protection and measurement features. Positive and negative cycle-by-cycle OCP, short-circuit protection and overtemperature protection (OTP) ensure robust design. Input undervoltage and overvoltage lockout shut down the regulator to prevent damage when the input voltage is out of specification. Regulation is halted in case of an output overvoltage (OVP) event. A status pin indicates that the output voltage is within range and the output voltage is in regulation. The device has an analog output that can be configured to report output current or junction temperature with ±5% and ±8°C accuracy, respectively.The devices are available in a 27-bump (2.2mm x 3.8mm) WLCSP package that provides low thermal resistance and minimizes the PCB area.ApplicationsDDR memory – VDDQ, VPP and VTTGPU Core SupplyI/O and Chipset SuppliesPoint-of-Load (POL) applicationsServers/uServers

The MAX38907/MAX38908 are fast transient response,high-PSRR nMOS linear regulators that deliver up to 4Aload current.These regulators support a wide input supply range from0.9V up to 5.5V, and BIAS voltage range from 2.7V to 20Vto provide wider supply options in a variety of applications.Output accuracy of ±1% is maintained over line, load, andtemperature variations, requiring only 300mV of input-to-outputheadroom at full load for a good PSRR. The outputvoltage can be adjusted to a value in the range of 0.6V to5.0V to accommodate customers that desire to specify asingle LDO in the BOM for multiple voltage rails.The MAX38907 is configurable to one of 27 output voltagesusing three digital configuration pins. Additionally,each output voltage selection can be adjusted ±5% formargining. The output voltage on the MAX38908 can beadjusted to a value in the range of 0.6V to 5.0V by usingtwo external feedback resistors. These LDOs are fully protectedfrom damage by internal circuitry that provides programmableinrush current limiting, output overcurrent limiting,reverse-current limiting, and thermal overload protection.The MAX38907 is offered in a 20-pin, 5mm x 5mm TQFNpackage, while the MAX38908 is offered in 5 x 3 bump,0.4mm pitch WLP and 14-pin, 3mm x 3mm TDFN packages.ApplicationsBase StationsFPGAs and DSPsMedical, Audio, and InstrumentationPLCsPortable CamerasServer μPs

The MAX38907/MAX38908 are fast transient response,high-PSRR nMOS linear regulators that deliver up to 4Aload current.These regulators support a wide input supply range from0.9V up to 5.5V, and BIAS voltage range from 2.7V to 20Vto provide wider supply options in a variety of applications.Output accuracy of ±1% is maintained over line, load, andtemperature variations, requiring only 300mV of input-to-outputheadroom at full load for a good PSRR. The outputvoltage can be adjusted to a value in the range of 0.6V to5.0V to accommodate customers that desire to specify asingle LDO in the BOM for multiple voltage rails.The MAX38907 is configurable to one of 27 output voltagesusing three digital configuration pins. Additionally,each output voltage selection can be adjusted ±5% formargining. The output voltage on the MAX38908 can beadjusted to a value in the range of 0.6V to 5.0V by usingtwo external feedback resistors. These LDOs are fully protectedfrom damage by internal circuitry that provides programmableinrush current limiting, output overcurrent limiting,reverse-current limiting, and thermal overload protection.The MAX38907 is offered in a 20-pin, 5mm x 5mm TQFNpackage, while the MAX38908 is offered in 5 x 3 bump,0.4mm pitch WLP and 14-pin, 3mm x 3mm TDFN packages.ApplicationsBase StationsFPGAs and DSPsMedical, Audio, and InstrumentationPLCsPortable CamerasServer μPs

The MAX38911/MAX38912 are low-noise, high-PSRR PMOS linear regulators that deliver up to a 500mA load current with only 11µVRMS of output noise from 10Hz to 100kHz.The regulators are fully protected from damage by internal circuitry that provides programmable inrushcurrent limiting, output overcurrent limiting, reverse current limiting, and thermal overload protection.The MAX38911 is available in WLP and TDFN packages and are default factory preprogrammed to an output voltage of 1.8V. Custom fixed-output voltage levels in the range of 0.8V to 5.0V in 50mV steps are alsoavailable, see Ordering Information.MAX38912 provides enhanced flexibility with adjustable output voltage in the range of 0.8V to 5.0V by using twoexternal feedback resistors.The MAX38911ANT is packaged in a 1.42mm x 0.83mm, 3 x 2, 6-bump, 0.4mm pitch WLP, while the MAX38911ATA and MAX38912ATA are packaged in a 8-pin, 2mm x 2mm TDFN.ApplicationsDigital Camera and Audio DevicesHigh-Performance Sensors for Portable ApplicationsImaging and High-Frequency SensorsIoT SensorsMobile PhonesPortable and Battery-Powered Equipment

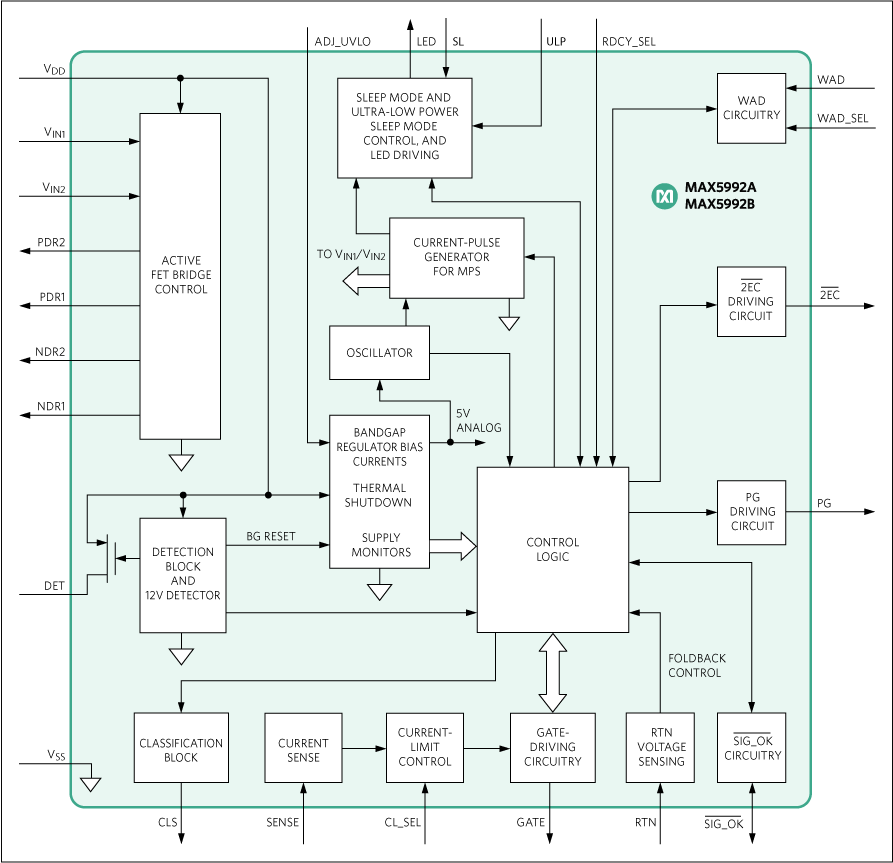

The MAX5992A/MAX5992B multisource, high-power, high-performance powered device (PD) controllers provide a complete interface control for PDs to comply with the IEEE® 802.3af/at standard in a Power-over-Ethernet (PoE) system. The devices provide the PD with a detection signature, classification signature, and an isolation MOSFET driver with current-limit control. In addition, the intelligent maintain power signature (MPS) and active FET bridge control make the PD more power efficient. The devices feature a active-low SIG_OK output signal for high-power Multi-2P PD applications. The selectable inrush-current modes allow Multi-PD, fiber-to-the-home/fiber-to-the-building (FTTH/FTTB) operation in redundancy applications. The devices feature an input UVLO, wide hysteresis, and long deglitch time to compensate for twisted-pair cable resistive drop to assure glitch-free transition during power-on/power-off conditions. The devices can operate from a 20.8V low-voltage supply by a selectable UVLO. The devices can withstand up to 100V at the input.The devices support a 2-Event classification method as specified in the IEEE 802.3at standard and provide a signal to indicate when probed by Type 2 power-sourcing equipment (PSE). The devices detect the presence of a wall adapter power-source connection and allow a smooth switchover from the PoE power source to the wall power adapter. Moreover, the selectable WAD_SEL supports seamless power transition from a wall adapter to PoE if PoE is already enabled.The devices also provide a power-good (PG) signal, 2-level current limit, foldback, and overtemperature protection. A sleep mode feature provides low-power consumption while supporting MPS. An ultra-low power sleep mode feature further reduces power consumption to comply with ultra-low power requirements while still supporting MPS. The devices also feature an LED driver that is automatically activated during sleep/ultra-low power sleep/MPS mode. The MAX5992A has 38.6V PoE UVLO and the MAX5992B has 35.4V PoE UVLO and feature a 6.5s sleep mode delay.The MAX5992A/MAX5992B are available in a 24-pin, 4mm x 4mm, TQFN power package and are rated over the -40°C to +85°C extended temperature range.ApplicationsFemtocell, Picocell, MicrocellFiber-to-the-Home/Building (FTTH/FTTB)High-Power 2x2P PDIEEE 802.3af/at-Powered Devices (PD)IP PhonesIP Security Cameras (IPC)Multi-PD RedundancyUniversal Power-over-Ethernet (UPoE)WiMAX® Base StationsWireless Access Nodes
