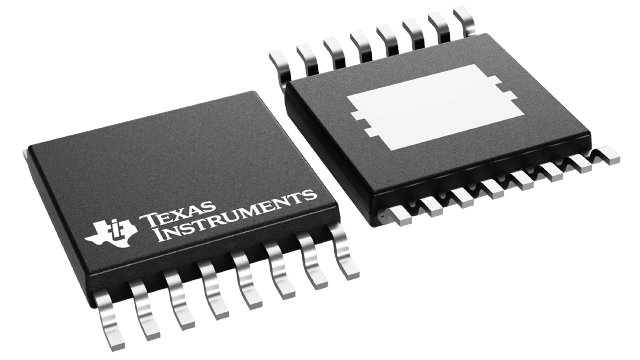

LM536023QPWPRQ1

Texas Instruments LM536023QPWPRQ1

LM536035QPWPRQ1

Texas Instruments LM536035QPWPRQ1

LM53625MQRNLRQ1

Texas Instruments LM53625MQRNLRQ1

LM53635NQRNLTQ1

Texas Instruments LM53635NQRNLTQ1

LP2985-30DBVR

Texas Instruments LP2985-30DBVR

LP2985A-28DBVR

Texas Instruments LP2985A-28DBVR

LP2986AIMMX-3.0/NOPB

Texas Instruments LP2986AIMMX-3.0/NOPB

LP2986ILD-3.3/NOPB

Texas Instruments LP2986ILD-3.3/NOPB

LP2986IM-5.0

Texas Instruments LP2986IM-5.0

LP2986IMM-3.0/NOPB

Texas Instruments LP2986IMM-3.0/NOPB

Price $2.03 $2.52 $1.54
RoHS Compliant Compliant Compliant Yes Yes Yes Compliant Yes No Yes
Lead Status No No No Yes Yes Yes No Yes No Yes
Iq(Typ)(mA) 0.023 0.023 0.018 0.018 0.065 0.85 0.1 0.1 0.1 0.1
Iout(Max)(A) 2 3 2.5 3.5 0.15 0.15 0.2 0.2 0.2 0.2
Vout(Max)(V) 9.9 9.9 10 10 3 2.8 5 5 5 5
Package Group HTSSOP HTSSOP VQFN-HR VQFN-HR SOT-23 SOT-23 SOIC,VSSOP,WSON SOIC,VSSOP,WSON SOIC,VSSOP,WSON SOIC,VSSOP,WSON
Control Mode Current Mode Current Mode Current Mode Current Mode
Switching Frequency(Min)(kHz) 1850 1850 1850 1850
Duty Cycle(Max)(%) 98 98 98 98
Rating Automotive Automotive Automotive Automotive Catalog Catalog Catalog Catalog Catalog Catalog
Approx. Price (US$) 1.65 | 1ku 1.80 | 1ku 2.48 | 1ku 2.66 | 1ku 0.18 | 1ku 0.22 | 1ku 0.60 | 1ku 0.60 | 1ku 0.60 | 1ku 0.60 | 1ku
Vout(Min)(V) 3.2 3.2 3.2 3.2 3 2.8 1.23 1.23 1.23 1.23
Type Converter Converter Converter Converter
Operating Temperature Range(C) -40 to 150 -40 to 150 -40 to 150 -40 to 150 -40 to 125 -40 to 125 -40 to 125 -40 to 125 -40 to 125 -40 to 125
Regulated Outputs(#) 1 1 1 1 1 1 1 1 1 1
Switching Frequency(Max)(kHz) 2350 2350 2350 2350
Vin(Max)(V) 42 42 42 42 16 16 16 16 16 16
Special Features Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Synchronous Rectification Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Synchronous Rectification Spread Spectrum,Synchronous Rectification Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Pre-Bias Start-Up,Synchronous Rectification N/A N/A Enable Enable Enable Enable
Vin(Min)(V) 3.5 3.5 3.5 3.5 2.2 2.2 2.1 2.1 2.1 2.1
Package Size mm2 mm2 mm2 mm2 mm2 mm2
Accuracy(%) 3 2.5 4 4 4 4
Output Options Fixed Output Fixed Output Adjustable Output,Fixed Output Adjustable Output,Fixed Output Adjustable Output,Fixed Output Adjustable Output,Fixed Output
PSRR @ 100KHz(dB) 40
Noise(uVrms) 30 30
Output Capacitor Type Ceramic,Non-Ceramic Ceramic,Non-Ceramic Non-Ceramic Non-Ceramic Non-Ceramic Non-Ceramic
Vdo(Typ)(mV) 280 280 180 180 180 180
Fixed Output Options(V) 3 2.8 3,3.3,5 3,3.3,5 3,3.3,5 3,3.3,5
