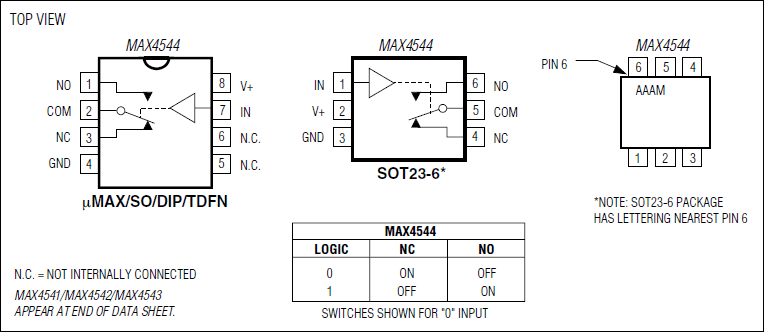

The MAX4541–MAX4544 are precision, dual analogswitches designed to operate from a single +2.7V to +12Vsupply. Low power consumption (5µW) makes these partsideal for battery-powered equipment. These switches offerlow leakage currents (100pA max) and fast switchingspeeds (tON = 150ns max, tOFF = 100ns max).When powered from a +5V supply, the MAX4541–MAX4544 offer 2Ω max matching between channels, 60Ω max on-resistance (RON), and 6Ω max RON flatness.These switches also offer 5pC max charge injection anda minimum of 2000V ESD protection per Method 3015.7.The MAX4541/MAX4542/MAX4543 are dual single-pole/single-throw (SPST) devices and the MAX4544 is a singlepole/double-throw (SPDT) device. The MAX4541 has twonormally open (NO) switches and the MAX4542 has two normally closed (NC) switches. The MAX4543 has one NO and one NC switch and can be used as an SPDT, while the MAX4544 is an SPDT. The MAX4541/MAX4542/MAX4543 are available in tiny SOT23-8 and 8-pin TDFN packages, and the MAX4544 is available in a SOT23-6 package.Applications+3V, +5V DACs and ADCsAudio and Video SwitchingBattery-Powered ApplicationsCell PhonesCommunication SystemsGuidance and Control SystemsHeads-Up DisplaysMilitary RadiosPagersPBX, PABXSample-and-Hold CircuitsTest EquipmentUltrasound

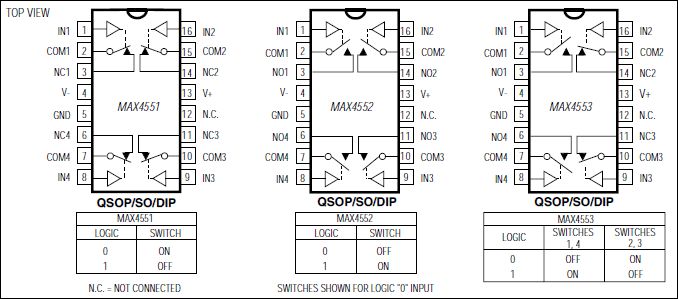

The MAX4551/MAX4552/MAX4553 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. Each switch is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup or damage. On-resistance (100Ωmax) is matched between switches to 4Ω max, and is flat (8Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C and 10nA at +85°C.The MAX4551 has four normally closed (NC) switches, and the MAX4552 has four normally open (NO) switches. The MAX4553 has two NC and two NO switches.These CMOS switches can operate with dual power supplies ranging from ±2V to ±6V or a single supply between +2V and +12V. They are fully specified for single +2.7V operation.All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply.ApplicationsAudio-Signal RoutingAvionicsBattery-Powered ApplicationsData AcquisitionNetworkingTest Equipment

The MAX4551/MAX4552/MAX4553 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. Each switch is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup or damage. On-resistance (100Ωmax) is matched between switches to 4Ω max, and is flat (8Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C and 10nA at +85°C.The MAX4551 has four normally closed (NC) switches, and the MAX4552 has four normally open (NO) switches. The MAX4553 has two NC and two NO switches.These CMOS switches can operate with dual power supplies ranging from ±2V to ±6V or a single supply between +2V and +12V. They are fully specified for single +2.7V operation.All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply.ApplicationsAudio-Signal RoutingAvionicsBattery-Powered ApplicationsData AcquisitionNetworkingTest Equipment

The MAX4581/MAX4582/MAX4583 are low-voltage,CMOS analog ICs configured as an 8-channel multiplexer(MAX4581), two 4-channel multiplexers (MAX4582), andthree single-pole/double-throw (SPDT) switches(MAX4583).These CMOS devices can operate continuously with±2V to ±6V dual power supplies or a +2V to +12V singlesupply. Each switch can handle rail-to-rail analogsignals. The off-leakage current is only 1nA at +25°C or5nA at +85°C.All digital inputs have 0.8V to 2.4V logic thresholds,ensuring TTL/CMOS-logic compatibility when using asingle +5V or dual ±5V supplies.ApplicationsAudio/Video Signal RoutingAutomotiveBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition Systems

The MAX4581/MAX4582/MAX4583 are low-voltage,CMOS analog ICs configured as an 8-channel multiplexer(MAX4581), two 4-channel multiplexers (MAX4582), andthree single-pole/double-throw (SPDT) switches(MAX4583).These CMOS devices can operate continuously with±2V to ±6V dual power supplies or a +2V to +12V singlesupply. Each switch can handle rail-to-rail analogsignals. The off-leakage current is only 1nA at +25°C or5nA at +85°C.All digital inputs have 0.8V to 2.4V logic thresholds,ensuring TTL/CMOS-logic compatibility when using asingle +5V or dual ±5V supplies.ApplicationsAudio/Video Signal RoutingAutomotiveBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition Systems

The MAX4581/MAX4582/MAX4583 are low-voltage,CMOS analog ICs configured as an 8-channel multiplexer(MAX4581), two 4-channel multiplexers (MAX4582), andthree single-pole/double-throw (SPDT) switches(MAX4583).These CMOS devices can operate continuously with±2V to ±6V dual power supplies or a +2V to +12V singlesupply. Each switch can handle rail-to-rail analogsignals. The off-leakage current is only 1nA at +25°C or5nA at +85°C.All digital inputs have 0.8V to 2.4V logic thresholds,ensuring TTL/CMOS-logic compatibility when using asingle +5V or dual ±5V supplies.ApplicationsAudio/Video Signal RoutingAutomotiveBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition Systems

The MAX4581/MAX4582/MAX4583 are low-voltage,CMOS analog ICs configured as an 8-channel multiplexer(MAX4581), two 4-channel multiplexers (MAX4582), andthree single-pole/double-throw (SPDT) switches(MAX4583).These CMOS devices can operate continuously with±2V to ±6V dual power supplies or a +2V to +12V singlesupply. Each switch can handle rail-to-rail analogsignals. The off-leakage current is only 1nA at +25°C or5nA at +85°C.All digital inputs have 0.8V to 2.4V logic thresholds,ensuring TTL/CMOS-logic compatibility when using asingle +5V or dual ±5V supplies.ApplicationsAudio/Video Signal RoutingAutomotiveBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition Systems

The MAX4610/MAX4611/MAX4612 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. On-resistance (100Ω, max) is matched between switches to 4Ω, max and is flat (4Ω, max) over the specified signal range. Each switch handles V+ to GND analog signal levels. Maximum off-leakage current is only 1nA at TA = +25°C and 2nA at TA = +85°C.The MAX4610 has four normally open (NO) switches, and the MAX4611 has four normally closed (NC) switches. The MAX4612 has two NO switches and two NC switches. These CMOS switches operate from a single +2V to +12V supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsSample-and-Hold Circuits

The MAX4610/MAX4611/MAX4612 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. On-resistance (100Ω, max) is matched between switches to 4Ω, max and is flat (4Ω, max) over the specified signal range. Each switch handles V+ to GND analog signal levels. Maximum off-leakage current is only 1nA at TA = +25°C and 2nA at TA = +85°C.The MAX4610 has four normally open (NO) switches, and the MAX4611 has four normally closed (NC) switches. The MAX4612 has two NO switches and two NC switches. These CMOS switches operate from a single +2V to +12V supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsSample-and-Hold Circuits

The DG411F/DG412F/DG413F are quad, single-pole/single-throw (SPST), fault-protected analog switches. They are pin compatible with the industry-standard nonprotected DG411/DG412/DG413. These new switches feature fault-protected inputs and rail-to-rail signal-handling capability. All terminals are protected from overvoltage faults up to ±36V with power on and up to ±40V with power off. During a fault condition, the COM, NO, or NC terminal becomes an open circuit and only microamperes of leakage current flow from the source. On-resistance is 35Ω (max) and is matched between switches to 1.5Ω (max) at +25°C.The DG411F has four normally closed (NC) switches. The DG412F has four normally open (NO) switches. The DG413F has two NC and two NO switches. These CMOS switches operate with dual power supplies ranging from ±4.5V to ±20V or a single supply between +9V and +36V. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility when using ±15V or a single +12V supply.For supply voltages of ±5V, +5V, and +3V, refer to the MAX4711/MAX4712/MAX4713 data sheet.ApplicationsAvionicsCommunication SystemsData AcquisitionIndustrial and Process Control SystemsRedundant/Backup SystemsSignal RoutingTest Equipment
