The ADM809 supervisory circuit monitors the power supply voltage in microprocessor systems. It provides a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1V. The ADM809 provides an active-low reset signal RESET, and has a push-pull output stage.Seven reset threshold options are available. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC.The ADM809 is available in 3-lead SOT-23 and SC70 and consumes only 17µA, making it suitable for low power portable equipment.APPLICATIONS Microprocessor systems Computers Controllers Intelligent instruments Automotive systems

The ADM8690–ADM8695 family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include mPreset, backup battery switchover, watchdog timer, CMOS RAM write protection and power failure warning. The complete family provides a variety of configurations to satisfy most microprocessor system requirements.The ADM8690, ADM8692 and ADM8694 are available in 8-pin DIP packages and provide: Power-on reset output during power-up, power-down and brownout conditions. The RESET output remains operational with VCC as low as 1 V. Battery backup switching for CMOS RAM, CMOS microprocessor or other low power logic. A reset pulse if the optional watchdog timer has not been toggled within a specified time. A 1.3 V threshold detector for power fail warning, low battery detection or to monitor a power supply other than +5 V.The ADM8691, ADM8693 and ADM8695 are available in 16-pin DIP and small outline packages (including TSSOP) and provide three additional functions: Write protection of CMOS RAM or EEPROM. Adjustable reset and watchdog timeout periods. Separate watchdog timeout, backup battery switchover, and low VCC status outputs.

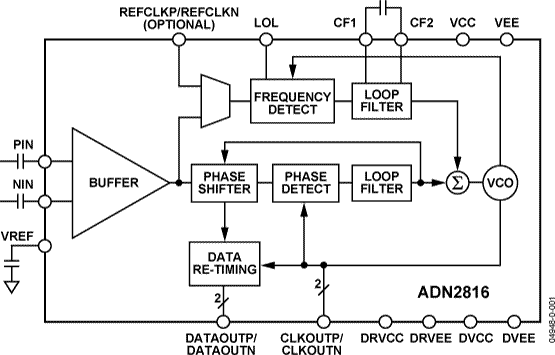

The ADN2816 provides the receiver functions of quantization and clock and data recovery for continuous data rates from 10 Mb/s to 675 Mb/s. The ADN2816 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for −40°C to +85°C ambient temperature, unless otherwise noted.The ADN2816 is available in a compact 5 mm × 5 mm 32-lead chip scale package.ApplicationsSONET OC-1/3/12 and all associated FEC rates Fibre Channel, ESCON, Fast Ethernet, SDI, etc. WDM transpondersRegenerators/repeatersTest equipmentBroadband cross-connects and routers

The ADP1111 is part of a family of step-up/step-down switchingregulators that operates from an input voltage supply of 2 Vto 12 V in step-up mode and up to 30 V in step-down mode.The ADP1111 can be programmed to operate in step-up/stepdownor inverting applications with only 3 external components.The fixed outputs are 3.3 V, 5 V and 12 V; and an adjustableversion is also available. The ADP1111 can deliver 100 mA at5 V from a 3 V input in step-up mode, or it can deliver 200 mAat 5 V from a 12 V input in step-down mode.Maximum switch current can be programmed with a singleresistor, and an open collector gain block can be arranged inmultiple configuration for low battery detection, as a post linearregulator, undervoltage lockout, or as an error amplifier.APPLICATIONS 3 V to 5 V, 5 V to 12 V Step-Up Converters 9 V to 5 V, 12 V to 5 V Step-Down Converters Laptop and Palmtop Computers Cellular Telephones Flash Memory VPP Generators Remote Controls Peripherals and Add-On Cards Battery Backup Supplies Uninterruptible Supplies Portable Instruments

The ADP1715 / ADP1716 are low dropout, CMOS linear regulators that operate from 2.5 V to 5.5 V and provide up to 500 mA of output current. Using an advanced proprietary architecture, they provide high power supply rejection and achieve excellent line and load transient response with just a small 2.2 μF ceramic output capacitor.Three versions of this part are available, one with fixed output voltage options and variable soft start (ADP1715), one with adjustable output voltage and fixed soft start (ADP1715 Adjustable), and one with voltage tracking in fixed output voltage options (ADP1716). The fixed output voltage options are internally set to one of sixteen values between 0.75 V and 3.3 V; the adjustable output voltage can be set to any value between 0.8 V and 5.0 V by an external voltage divider connected from OUT to ADJ. The variable soft start uses an external capacitor at SS to control the output voltage ramp. Tracking limits the output voltage to the at-or-below voltage at the TRK pin.The ADP1715 / ADP1716 are available in 8-lead thermally enhanced MSOP packages, making them not only a very compact solution but also providing excellent thermal performance for applications requiring up to 500 mA of output current in a small, low profile footprint.APPLICATIONS Notebook computers Memory components Telecommunications equipment Network Equipment DSP/FPGA/µP supplies Instrumentation equipment/data acquisition systems

The ADR130 is the first family of tiny, micropower, low voltage, high precision voltage references in the industry. Featuring0.35% initial accuracy and 25 ppm/°C of temperature drift inthe tiny TSOT-23 package, the ADR130 voltage reference only requires 80 μA for typical operation. The ADR130 design includes a proprietary temperature drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. temperature characteristics.Available in the industrial temperature range of −40°C to+125°C, the ADR130 is housed in a tiny TSOT-23 package.For 0.5 V output, tie SET (Pin 5) to VOUT (Pin 4). For 1.0 V output, tie SET (Pin 5) to GND (Pin 2). All Members of the ADR130 Model VOUT Accuracy Tempco 1K Price ADR130A 0.5/1.0V ±3.5mV 50ppm/°C $0.97 ADR130B 0.5/1.0V ±1.75mV 25ppm/°C $1.60 APPLICATIONS Battery-powered instrumentation Portable medical equipment Communication infrastructure equipment

The ADR391/ADR392/ADR395 are precision 2.5 V, 4.096 V, and 5 V band gap voltage references, respectively, featuring low power and high precision in a tiny footprint. Using patented temperature drift curvature correction techniques from Analog Devices, Inc., the ADR39x references achieve a low 9 ppm/°C of temperature drift in the TSOT package.The ADR39x family of micropower, low dropout voltage references provides a stable output voltage from a minimum supply of 300 mV above the output. Their advanced design eliminates the need for external capacitors, which further reduces board space and system cost. The combination of low power operation, small size, and ease of use makes the ADR39x precision voltage references ideally suited for battery-operatedapplications.Applications Battery-powered instrumentation Portable medical instrumentation Data acquisition systems Industrial process controls Automotive

The ADR430/ADR431/ADR433/ADR434/ADR435 series is a family of XFET® voltage references featuring low noise, high accuracy, and low temperature drift performance. Using Analog Devices, Inc., temperature drift curvature correction and extra implanted junction FET (XFET) technology, voltage change vs. temperature nonlinearity in the ADR430/ADR431/ADR433/ADR434/ ADR435 is minimized.The XFET references operate at lower current (800 μA) and lower supply voltage headroom (2 V) than buried Zener references. Buried Zener references require more than 5 V of headroom for operation. The ADR430/ADR431/ADR433/ADR434/ADR435 XFET references are low noise solutions for 5 V systems.The ADR430/ADR431/ADR433/ADR434/ADR435 family has the capability to source up to 30 mA of output current and sink up to −20 mA. It also comes with a trim terminal to adjust the output voltage over a ±0.5% range without compromising performance.The ADR430/ADR431/ADR433/ADR434/ADR435 are available in 8-lead MSOP and 8-lead narrow SOIC packages. All versions are specified over the extended industrial temperature range of −40°C to +125°C.Applications Precision data acquisition systems High resolution data converters Medical instruments Industrial process control systems Optical control circuits Precision instruments

The ADSP-218xN series consists of six single chip microcomputers optimized for digital signal processing applications. All series members are pin-compatible and are differentiated solely by the amount of on-chip SRAM. This feature combined with ADSP-21xx code compatibility provide a great deal of flexibility in the design decision. Specifically, the series members are - ADSP-2184N (4K PM/4K DM)  ADSP-2186N (8K PM/8K DM)  ADSP-2185N (16K PM/16K DM)  ADSP-2187N (32K PM/32K DM)  ADSP-2189N (32K PM/48K DM)  ADSP-2188N (48K PM/56K DM)The ADSP-218xN series offers the highest performance (80Mhz/MIPS) and lowest power consumption (0.55mW/MIP @ 1.8V) within the ADSP-218x portfolio. All series members are offered in a 100-lead LQFP and 144-Ball MBGA packages.

The ADSP-218xN series consists of six single chip microcomputers optimized for digital signal processing applications. All series members are pin-compatible and are differentiated solely by the amount of on-chip SRAM. This feature combined with ADSP-21xx code compatibility provide a great deal of flexibility in the design decision. The ADSP-218xN series offers products from 2 MBits of SRAM to $3.50. Specifically, the series members are - ADSP-2184N (4K PM/4K DM) ADSP-2186N (8K PM/8K DM) ADSP-2185N (16K PM/16K DM) ADSP-2187N (32K PM/32K DM) ADSP-2189N (32K PM/48K DM) ADSP-2188N (48K PM/56K DM)The ADSP-218xN series offers the highest performance (80Mhz/MIPS) and lowest power consumption (0.55mW/MIP @ 1.8V) within the ADSP-218x portfolio. All series members are offered in a 100-lead LQFP and 144-Ball MBGA packages.
