UPS-EHLCN2-A10-0232
Aaeon
UP Squared V2
Single Board Computers UP Squared V2.Celeron N6210 2GB RAM 32GB eMMC
The UP Squared V2, the successor to the acclaimed UP Squared, has arrived and represents a significant leap forward in the world of x86 pro maker boards. Building upon the legacy of its predecessor, the UP Squared V2 sets a new standard for power, affordability, and versatility.
With its cutting-edge enhancements, the UP Squared V2 is poised to become the preeminent example of what a high-performance, cost-effective maker board can offer. Boasting a 40% increase in CPU performance, unparalleled expansion options, and remarkable I/O density, all within the compact 3.37" x 3.54" (85mm x 90mm) form factor, the UP Squared V2 stands alone as the pinnacle of excellence for the UP Squared community.
Whether you prioritize pricing, performance, or development capabilities, the UP Squared V2 is a clear winner across the board. Its superior features and capabilities ensure that it cannot be surpassed by any other x86 pro maker board on the market.
40% More Processing Power with Elkhart Lake
Powered by the Intel Celeron N6210 Pentium J6426 Processor SoC (formerly Elkhart Lake), the UP Squared V2 offers a 40% improvement in CPU performance compared to the UP Squared, along with 1.7x the single-thread performance and 1.5x the multi-thread performance. Compounding this, the UP Squared V2 is equipped with up to 16GB LPDDR4 system memory, enabling faster data processing speed to optimize AI inferencing applications.
Next Generation Graphics
The UP Squared V2 also contains Intel Gen11 UHD Graphics, which offers twice the performance of the previous generation, enabling the UP Squared V2 to support up to three simultaneous 4K displays via its HDMI 1.4, DP 1.2, and eDP 1.3 ports.
Industry-Leading Expansion
Boasting an enhanced expansion interface featuring M.2 2230 E-Key, M.2 2280 M-Key, and SATA III slots; the UP Squared V2 supports AI, PCIe, and Wi-Fi modules, as well as providing additional security via its TPM 2.0 port.
Dedicated High Definition Audio Support
Equipped with an already dense I/O, the UP Squared V2 is further tailored for user-friendly functionality, with a dedicated HD audio wafer removing the need to use the I2S on the board’s 40-pin HAT when incorporating audio features to applications.
User-Friendly Interface with Enhanced Data Transmission
While the UP Squared was only equipped with UART from 10 pin header, the UP Squared V2 contains an additional RS-232 pin header, providing a more user-friendly interface for industrial applications. The RS-232 pin also offers an increase in data transmission distance.
Features
- Intel Pentium Celeron Processor SoC
- Onboard LPDDR4 Memory up to 16GB
- Onboard eMMC Storage up to 64GB
- Gb Ethernet (full speed) RJ-45 x 2
- USB 3.2 Type A x 3
- 40 pin GPIO x 1
- DP 1.2 / HDMI 1.4b / eDP 1.3
- RS232/422 pin header x 1
- M.2 2230 E-Key x 1
- M.2 2280 M-Key x 1
- SATA3 x 1
- TPM 2.0
- 12V DC-in, 5A
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Mouser Electronics | 409-UPSEHLCN2A100232 | 10 | 1 | $210.86 | $210.86 | $210.86 | $210.86 | $210.86 | $210.86 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Mouser Electronics | N/A | 0 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Mouser Electronics | N/A | 0 |
UP-APL03C2F-A10-0432
Aaeon
UP 4000
Single Board Computers UP4000 board Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0

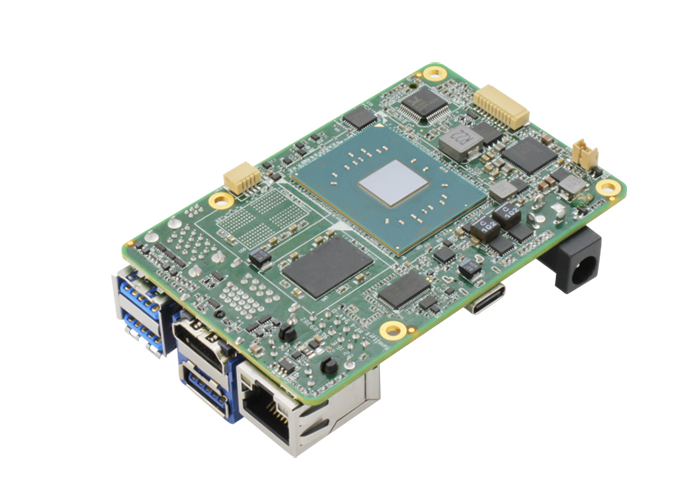

AAEON blends the classic with the modern with the introduction of the UP 4000, the successor to the trailblazing UP Board. Maintaining the classic form factor of its predecessor, the UP 4000 gives users upgrades in processing power, I/O density, and expansion options; all while remaining compatible with existing UP Board-powered systems.
Of particular note is the 30% increase in CPU speeds available with the UP 4000’s Intel Pentium N4200/ Celeron N3350/ Atom E3950 Processor SoC (formerly Apollo Lake). Further to this, there is also a twofold improvement in 3D graphic performance with the Intel Gen 9 HD processor graphics package. These upgrades give users up to 1.7 times the single thread performance compared to the previous generation, along with 1.5 times the graphics burst performance.
While the UP 4000 represents a great advancement in maker board technology, the board will follow the original UP Board’s ethos of bridging the gap by providing fantastic value for money. Despite its low price, the UP 4000 boasts a number of new features, such as a 6-pin wafer to support audio function, TPM 2.0 for enhanced security, and a HDMI 1.4 port. The introduction of mic-in and line-out utility being supported directly via the board, a DP1.2-supporting USB Type-C connector also enables dual visual displays up to 4K at 60Hz.
Further balancing the legacy of the first-generation UP Board with the more sophisticated needs of its customers, AAEON has equipped the UP 4000 with a denser I/O containing a wealth of expansion options, all on the same 3.37” x 2.22” (85.6mm x 56.5mm) form factor.
The compact board features three USB 3.2 Gen 1 ports, two USB 2.0 via 10-pin wafer, and a USB Type-C slot, with an optional carrier board, giving customers the option of supporting Wi-Fi, 5G, or AI modules via two M.2 Key ports.
AAEON sees the UP 4000 as the foundation for superior solutions typically associated with the first-generation UP Board, such as digital signage, IOT devices, and industrial automation. With its compact design and competitive pricing, the UP 4000 represents the successor to the UP Board, while maintaining the core of what made the original iconic.
Features
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Dual displays up to 4K at 60Hz
- Support M.2 2230 E-Key / M.2 2280 M-Key / M.2 3052 B-Key ( via carrier board)
- 40 pin GPIO x 1
- 6 pin wafer for Audio x 1
- TPM 2.0
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Arrow North American Components | UP-APL03C2F-A10-0432 | 0 | 1 | $260.59 | $260.59 | $260.59 | $247.88 | $247.88 | $247.88 |
| Mouser Electronics | 409-UPAPL03C2FA10432 | 36 | 1 | $186.03 | $186.03 | $186.03 | $186.03 | $186.03 | $186.03 |
| TME | UP-APL03C2F-A10-0432 | 4 | $224.00 |
UP-APL03P4F-A10-0432
Aaeon
UP 4000
Single Board Computers UP4000 board Intel Pentium N4200, 4GB RAM, 32GB eMMC, Rev A1.0
AAEON blends the classic with the modern with the introduction of the UP 4000, the successor to the trailblazing UP Board. Maintaining the classic form factor of its predecessor, the UP 4000 gives users upgrades in processing power, I/O density, and expansion options; all while remaining compatible with existing UP Board-powered systems.
Of particular note is the 30% increase in CPU speeds available with the UP 4000’s Intel Pentium N4200/ Celeron N3350/ Atom E3950 Processor SoC (formerly Apollo Lake). Further to this, there is also a twofold improvement in 3D graphic performance with the Intel Gen 9 HD processor graphics package. These upgrades give users up to 1.7 times the single thread performance compared to the previous generation, along with 1.5 times the graphics burst performance.
While the UP 4000 represents a great advancement in maker board technology, the board will follow the original UP Board’s ethos of bridging the gap by providing fantastic value for money. Despite its low price, the UP 4000 boasts a number of new features, such as a 6-pin wafer to support audio function, TPM 2.0 for enhanced security, and a HDMI 1.4 port. The introduction of mic-in and line-out utility being supported directly via the board, a DP1.2-supporting USB Type-C connector also enables dual visual displays up to 4K at 60Hz.
Further balancing the legacy of the first-generation UP Board with the more sophisticated needs of its customers, AAEON has equipped the UP 4000 with a denser I/O containing a wealth of expansion options, all on the same 3.37” x 2.22” (85.6mm x 56.5mm) form factor.
The compact board features three USB 3.2 Gen 1 ports, two USB 2.0 via 10-pin wafer, and a USB Type-C slot, with an optional carrier board, giving customers the option of supporting Wi-Fi, 5G, or AI modules via two M.2 Key ports.
AAEON sees the UP 4000 as the foundation for superior solutions typically associated with the first-generation UP Board, such as digital signage, IOT devices, and industrial automation. With its compact design and competitive pricing, the UP 4000 represents the successor to the UP Board, while maintaining the core of what made the original iconic.
Features
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Dual displays up to 4K at 60Hz
- Support M.2 2230 E-Key / M.2 2280 M-Key / M.2 3052 B-Key ( via carrier board)
- 40 pin GPIO x 1
- 6 pin wafer for Audio x 1
- TPM 2.0
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Mouser Electronics | UP-APL03P4F-A10-0432 | 74 | |||||||
| TME | UP-APL03P4F-A10-0432 | 6 | $283.00 |
UP-APL03P4F-A10-0864
Aaeon
UP 4000
Single Board Computers UP4000 board Intel Pentium N4200, 8GB RAM, 64GB eMMC, Rev A1.0
AAEON blends the classic with the modern with the introduction of the UP 4000, the successor to the trailblazing UP Board. Maintaining the classic form factor of its predecessor, the UP 4000 gives users upgrades in processing power, I/O density, and expansion options; all while remaining compatible with existing UP Board-powered systems.
Of particular note is the 30% increase in CPU speeds available with the UP 4000’s Intel Pentium N4200/ Celeron N3350/ Atom E3950 Processor SoC (formerly Apollo Lake). Further to this, there is also a twofold improvement in 3D graphic performance with the Intel Gen 9 HD processor graphics package. These upgrades give users up to 1.7 times the single thread performance compared to the previous generation, along with 1.5 times the graphics burst performance.
While the UP 4000 represents a great advancement in maker board technology, the board will follow the original UP Board’s ethos of bridging the gap by providing fantastic value for money. Despite its low price, the UP 4000 boasts a number of new features, such as a 6-pin wafer to support audio function, TPM 2.0 for enhanced security, and a HDMI 1.4 port. The introduction of mic-in and line-out utility being supported directly via the board, a DP1.2-supporting USB Type-C connector also enables dual visual displays up to 4K at 60Hz.
Further balancing the legacy of the first-generation UP Board with the more sophisticated needs of its customers, AAEON has equipped the UP 4000 with a denser I/O containing a wealth of expansion options, all on the same 3.37” x 2.22” (85.6mm x 56.5mm) form factor.
The compact board features three USB 3.2 Gen 1 ports, two USB 2.0 via 10-pin wafer, and a USB Type-C slot, with an optional carrier board, giving customers the option of supporting Wi-Fi, 5G, or AI modules via two M.2 Key ports.
AAEON sees the UP 4000 as the foundation for superior solutions typically associated with the first-generation UP Board, such as digital signage, IOT devices, and industrial automation. With its compact design and competitive pricing, the UP 4000 represents the successor to the UP Board, while maintaining the core of what made the original iconic.
Features
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Dual displays up to 4K at 60Hz
- Support M.2 2230 E-Key / M.2 2280 M-Key / M.2 3052 B-Key ( via carrier board)
- 40 pin GPIO x 1
- 6 pin wafer for Audio x 1
- TPM 2.0
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Arrow North American Components | UP-APL03P4F-A10-0864 | 0 | 1 | $397.02 | $397.02 | $397.02 | $378.58 | $378.58 | $378.58 |
| Mouser Electronics | 409-UPAPL03P4FA10864 | 80 | 1 | $291.07 | $291.07 | $291.07 | $291.07 | $291.07 | $291.07 |
| TME | UP-APL03P4F-A10-0864 | 10 | $320.00 |
UP-APL03C2F-A10-0232
Aaeon
UP 4000
Single Board Computers UP4000 board Intel Celeron N3350, 2GB RAM, 32GB eMMC, Rev A1.0
AAEON blends the classic with the modern with the introduction of the UP 4000, the successor to the trailblazing UP Board. Maintaining the classic form factor of its predecessor, the UP 4000 gives users upgrades in processing power, I/O density, and expansion options; all while remaining compatible with existing UP Board-powered systems.
Of particular note is the 30% increase in CPU speeds available with the UP 4000’s Intel Pentium N4200/ Celeron N3350/ Atom E3950 Processor SoC (formerly Apollo Lake). Further to this, there is also a twofold improvement in 3D graphic performance with the Intel Gen 9 HD processor graphics package. These upgrades give users up to 1.7 times the single thread performance compared to the previous generation, along with 1.5 times the graphics burst performance.
While the UP 4000 represents a great advancement in maker board technology, the board will follow the original UP Board’s ethos of bridging the gap by providing fantastic value for money. Despite its low price, the UP 4000 boasts a number of new features, such as a 6-pin wafer to support audio function, TPM 2.0 for enhanced security, and a HDMI 1.4 port. The introduction of mic-in and line-out utility being supported directly via the board, a DP1.2-supporting USB Type-C connector also enables dual visual displays up to 4K at 60Hz.
Further balancing the legacy of the first-generation UP Board with the more sophisticated needs of its customers, AAEON has equipped the UP 4000 with a denser I/O containing a wealth of expansion options, all on the same 3.37” x 2.22” (85.6mm x 56.5mm) form factor.
The compact board features three USB 3.2 Gen 1 ports, two USB 2.0 via 10-pin wafer, and a USB Type-C slot, with an optional carrier board, giving customers the option of supporting Wi-Fi, 5G, or AI modules via two M.2 Key ports.
AAEON sees the UP 4000 as the foundation for superior solutions typically associated with the first-generation UP Board, such as digital signage, IOT devices, and industrial automation. With its compact design and competitive pricing, the UP 4000 represents the successor to the UP Board, while maintaining the core of what made the original iconic.
Features
- Onboard LPDDR4 Memory up to 8GB
- Onboard eMMC Storage up to 64GB
- Dual displays up to 4K at 60Hz
- Support M.2 2230 E-Key / M.2 2280 M-Key / M.2 3052 B-Key ( via carrier board)
- 40 pin GPIO x 1
- 6 pin wafer for Audio x 1
- TPM 2.0
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Arrow North American Components | UP-APL03C2F-A10-0232 | 0 | 1 | $212.55 | $212.55 | $212.55 | $204.62 | $204.62 | $204.62 |
| Mouser Electronics | 409-UPAPL03C2FA10232 | 0 | 1 | $165.12 | $165.12 | $165.12 | $165.12 | $165.12 | $165.12 |
| TME | UP-APL03C2F-A10-0232 | 9 | $202.00 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| AVNET Express | ECB-970-A10-01 | 0 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
| Mouser Electronics | N/A | 0 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Mouser Electronics | N/A | 0 |
