CMD5374C
CML Innovative Technologies
LED, 3MM, YELLOW; LED Colour:Yellow; LED Mounting:Through Hole; Forward Current If:20mA; Forward Voltage:2.1V; Wavelength Typ:585nm; Luminous Intensity:9mcd; Viewing Angle:90°; Lens Shape:Round; MSL:-; SVHC:No SVHC (15-Jan-2018); Bulb Size:T-1 (3mm); Current If Luminous Intensity:20mA; Dominant Wavelength:585nm; External Diameter:3.05mm; External Length / Height:5.08mm; Forward Current If Max:20mA; Forward Voltage VF Max:2.1V; LED / Lamp Size:3mm / T-1; LED Type:Standard; Lead Cross-section Depth:0.36mm; Lead Cross-section Width:0.36mm; Lead Length:25mm; Lead Spacing:1.4mm; Luminous Intensity Typ:4mcd; No. of Pins:2Pins; Operating Temperature Max:100°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +100°C; PIV Max:5V; Peak Forward Current:35mA; Peak Wavelength:585nm; Voltage Vf Typ:2.1V
ILL3A0002A
CML Innovative Technologies
LED, ROUND, 14W, WHITE; Product Range:-; LED Module Type:Board + LED; LED Colour:Cool White; CCT:7000K; Luminous Flux @ Test:320lm; Luminous Flux @ Max:-; Power Rating:14W; Supply Voltage:-; Forward Current @ Test:700mA; Power Module Configuration:Circular; Operating Temperature Min:-65°C; Operating Temperature Max:100°C; MSL:-; SVHC:No SVHC (15-Jan-2018); Colour Temperature Typ:6000K; Forward Current If:700mA; Forward Current If Max:700mA; Luminous Flux:320lm; Operating Temperature Range:-65°C to +100°C; Power Dissipation Pd:14W; Viewing Angle:6°
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | ILL3A0002A | 0 | 1 | * $159.53 | * $140.39 | * $138.06 | * $138.06 | * $138.06 | * $138.06 |
| Farnell | ILL3A0002A | 0 | 1 | * $117.04 | * $105.63 | * $100.42 | * $100.42 | * $100.42 | * $100.42 |
CMDA30WW15D13L
CML Innovative Technologies
LED, 1W, EMITTER, WARM WHITE; LED Colour:Warm White; LED Mounting:SMD; Bulb Size:-; Forward Current If:400mA; Forward Voltage:3.4V; Luminous Intensity:35mcd; Viewing Angle:110°; Lens Shape:-; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2018); CCT:3000K; Colour Rendering Index:76; Colour Temperature Typ:3000K; Forward Current @ Test:350mA; Forward Current If Max:400mA; Forward Voltage @ Test:3.4V; Forward Voltage VF Max:3.5V; Luminous Flux:35lm; Luminous Flux @ Test:35lm; Luminous Flux Typ:35lm; Luminous Intensity Typ:35lm; Mounting Orientation:Square; No. of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Power @ Test:1.2W; Power Dissipation Pd:1.9W; Voltage Vf Typ:3.5V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | CMDA30WW15D13L | 0 | 1 | * $9.88 | * $8.15 | * $7.74 | * $7.35 | * $7.35 | * $7.35 |
| Farnell | CMDA30WW15D13L | 0 | 1 | * $7.34 | * $7.13 | * $6.98 | * $6.83 | * $6.83 | * $6.83 |
CMDA31CW15D13L
CML Innovative Technologies
LED, 1W, STAR, EMITTER, WHITE; LED Colour:Cool White; LED Mounting:SMD; Bulb Size:-; Forward Current If:400mA; Forward Voltage:-; Luminous Intensity:-; Viewing Angle:110°; Lens Shape:-; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2018); CCT:6500K; Colour Rendering Index:76; Colour Temperature Typ:6500K; Forward Current @ Test:350mA; Forward Current If Max:400mA; Forward Voltage @ Test:3.4V; Forward Voltage VF Max:3.5V; Luminous Flux:52lm; Luminous Flux @ Test:52lm; Luminous Flux Typ:52lm; Luminous Intensity Typ:52lm; Mounting Orientation:Square; No. of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Power @ Test:1.2W; Power Dissipation Pd:1.9W; Voltage Vf Typ:3.5V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | CMDA31CW15D13L | 0 | 1 | * $11.85 | * $9.77 | * $9.28 | * $8.82 | * $8.82 | * $8.82 |
| Farnell | CMDA31CW15D13L | 0 | 1 | * $8.92 | * $8.57 | * $8.39 | * $8.20 | * $8.20 | * $8.20 |
CMDA31DY15D13L
CML Innovative Technologies
LED, 1W, STAR, EMITTER, AMBER; LED Colour:Amber; LED Mounting:SMD; LED Case Size:-; Forward Current If:400mA; Forward Voltage:2.5V; Wavelength Typ:595nm; Luminous Intensity:-; Viewing Angle:128°; Lens Shape:-; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2018); Forward Current @ Test:350mA; Forward Current If Max:400mA; Forward Voltage @ Test:2.5V; Forward Voltage VF Max:2.5V; Luminous Flux @ Test:38lm; Luminous Intensity Typ:38lm; Mounting Orientation:Square; No. of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Power @ Test:0.9W; Power Dissipation Pd:1.2W; Voltage Vf Typ:2.5V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | CMDA31DY15D13L | 0 | 1 | * $4.65 | * $4.28 | * $3.69 | * $3.48 | * $3.48 | * $3.48 |
| Farnell | CMDA31DY15D13L | 0 | 1 | * $4.96 | * $4.69 | * $4.51 | * $4.41 | * $4.41 | * $4.41 |
CMDA51CW15D13L
CML Innovative Technologies
LED, 5W, EMITTER, WHITE; LED Colour:Cool White; LED Mounting:SMD; Bulb Size:-; Forward Current If:1.6A; Viewing Angle:110°; Product Range:-; MSL:-; SVHC:No SVHC (15-Jan-2018); CCT:6500K; Colour Rendering Index:70; Colour Temperature Typ:6500K; Forward Current @ Test:1.4A; Forward Current If Max:1.6A; Forward Voltage @ Test:3.5V; Forward Voltage VF Max:3.5V; Luminous Flux:178lm; Luminous Flux @ Test:178lm; Luminous Flux Typ:178lm; Luminous Intensity Typ:178lm; Mounting Orientation:Square; No. of Pins:2Pins; Operating Temperature Max:85°C; Operating Temperature Min:-30°C; Operating Temperature Range:-30°C to +85°C; Power @ Test:4.9W; Power Dissipation Pd:6.4W; Voltage Vf Typ:3.5V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | CMDA51CW15D13L | 0 | 1 | * $16.90 | * $16.24 | * $15.90 | * $15.56 | * $15.56 | * $15.56 |
| Farnell | CMDA51CW15D13L | 0 | 1 | * $19.56 | * $19.01 | * $18.60 | * $18.21 | * $18.21 | * $18.21 |
CM-200LM012-RED
CML Innovative Technologies
LED MODULE, X12, RED; Product Range:-; LED Colour:Red; Wavelength Typ:625nm; Luminous Flux @ Test:410lm; Supply Voltage:8.8V; Power Module Configuration:Square; Operating Temperature Min:-40°C; Operating Temperature Max:100°C; Luminous Flux @ Max:-; Power Rating:13W; Forward Current @ Test:1.2A; LED Module Type:Board + LED + Connector; MSL:-; SVHC:No SVHC (15-Jan-2018); Forward Current If:1.2A; Forward Current If Max:1200mA; Forward Voltage VF Max:8.8V; Luminous Intensity Typ:410lm; Operating Temperature Range:-40°C to +100°C; Viewing Angle:120°; Voltage Vf Typ:8.8V
ILL5A0001D
CML Innovative Technologies
LED, SPOT, 3W, CYAN; Product Range:-; LED Colour:Cyan; Wavelength Typ:495nm; Luminous Flux @ Test:-; Supply Voltage:30V; Power Module Configuration:Circular; Operating Temperature Min:-40°C; Operating Temperature Max:55°C; Luminous Flux @ Max:-; Power Rating:1W; Forward Current @ Test:500mA; LED Module Type:Board + LED; MSL:-; SVHC:No SVHC (15-Jan-2018); Forward Current If:500mA; Forward Current If Max:500mA; Forward Voltage VF Max:30V; Operating Temperature Range:-40°C to +55°C; Operating life Time:50000h; Viewing Angle:40°; Voltage Vf Min:10V
ILL3A0001F
CML Innovative Technologies
LED, ROUND, 3W, AMBER; Product Range:-; LED Colour:Amber; Wavelength Typ:589nm; Luminous Flux @ Test:48lm; Supply Voltage:-; Power Module Configuration:Circular; Operating Temperature Max:100°C; Luminous Flux @ Max:-; Power Rating:1.8W; Forward Current @ Test:700mA; LED Module Type:Board + LED; MSL:-; SVHC:No SVHC (15-Jan-2018); Dominant Wavelength Typ:589nm; External Diameter:44.2mm; External Length / Height:15.29mm; Forward Current If:700mA; Forward Current If Max:700mA; Head Diameter:21.59mm; Head Length:203mm; Operating life Time:50000h; Peak Forward Current:1000mA; Viewing Angle:5°
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | ILL3A0001F | 0 | 1 | * $34.57 | * $30.43 | * $29.93 | * $29.65 | * $29.65 | * $29.65 |
| Farnell | ILL3A0001F | 0 | 1 | * $24.02 | * $22.52 | * $21.78 | * $20.93 | * $20.93 | * $20.93 |

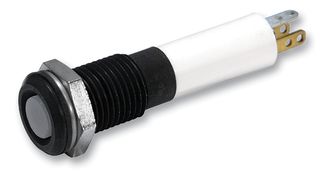

19TR0A24.
CML Innovative Technologies
LED INDICATOR, 24V TRICOLOUR; LED Colour:Red, Yellow, Green; Mounting Hole Dia:8mm; Forward Current / Colour:R 20mA, Y 40mA, G 20mA; Operating Voltage / Colour:R 24V, Y 24V, G 24V; Luminous Intensity / Colour:R 10mcd, Y 30mcd, G 20mcd; IP / NEMA Rating:IP67; Product Range:-; MSL:-; SVHC:No SVHC (15-Jan-2018); Bezel Diameter:9.5mm; Body Plating:Bright Chrome; Bulb Size:5mm; External Diameter:9.5mm; Fixing Hole Diameter:8mm; Forward Voltage / Colour:R 24V, Y 24V, G 24V; LED / Lamp Size:5mm; Length Behind Bezel:35mm; Luminous Intensity Typ:20mcd; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Operating Temperature Range:-25°C to +70°C; Operating Voltage Tolerance +:10%; Operating Voltage Tolerance -:10%; Peak Forward Current:15mA; Reverse Protection Voltage:5V; Thread Pitch:0.75mm; Thread Size:M6; Voltage Rating V DC:24V
