| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-Z1SMA13CT-ND | 5310 | 1 | $0.33 | $0.18 | $0.18 | $0.11 | $0.07 | $0.05 |
| Ameya360 | Z1SMA13 | 3505 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | |
| Arrow North American Components | Z1SMA13 | 0 | 7500 | $0.06 | |||||
| Mouser Electronics | 637-Z1SMA13 | 6409 | 1 | $0.33 | $0.17 | $0.17 | $0.11 | $0.08 | $0.07 |
| TME | Z1SMA13 | 6693 | $0.16 | ||||||
| Verical Marketplace | Z1SMA13 | 5111 | 766 | $0.09 | $0.08 | ||||
| Win Source | Z1SMA13 | 24000 | 20 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 2796-ES2J-AQTR-ND | 3000 | 3000 | $0.15 | |||||
| Arrow North American Components | ES2J | 0 | 3000 | $0.00 | |||||
| Mouser Electronics | 637-ES2J | 5299 | 1 | $0.39 | $0.26 | $0.26 | $0.18 | $0.13 | $0.09 |
| TME | ES2J | 3245 | $0.17 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-1.5SMCJ10ADKR-ND | 2850 | $0.76 | $0.47 | $0.41 | $0.30 | $0.21 | $0.16 | |
| Ameya360 | 1.5SMCJ10A | 2526 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | |
| Arrow North American Components | 1.5SMCJ10A | 0 | 3000 | $0.00 | |||||
| Mouser Electronics | 637-1.5SMCJ10A | 0 | 1 | $0.59 | $0.47 | $0.47 | $0.28 | $0.27 | $0.19 |
| TME | 1.5SMCJ10A | 2369 | $0.27 | ||||||
| Win Source | 1.5SMCJ10A | 7500 | 9 |
SIT12C065
Diotec Semiconductor
DIODE SIL CARB 6500V 12A TO220AC

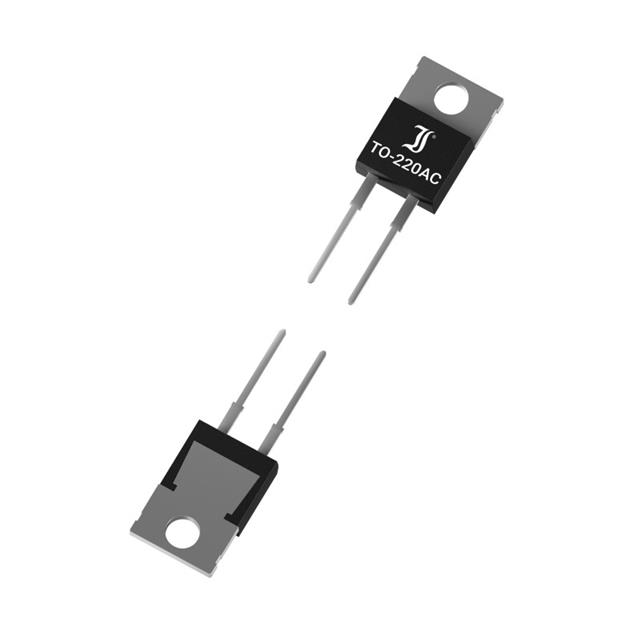

The SIT10C065 and SIT12C065 by Diotec Semiconductor are two neighboring members of the 650 V single-diode family in TO-220AC. They offer 10 A and 12 A of average forward current, respectively. Both are ideally suited for high-voltage/high-frequency switching circuits, such as power factor correction (PFC), highly efficient solar inverters, or data server power supplies. Both devices feature a high reverse voltage of 650 V combined with an extremely low reverse recovery, also known as better discharging time
Features
- High reverse voltage
- Almost zero switching losses
- Low reverse leakage current
- High-efficiency high-frequency switching
- Single diodes in industry standard case outline
Specifications
- 10 A and 12 A average forward current (IFAV)
- 650 V repetitive reverse voltage (VRRM)
- Typical forward voltage (VF 1.7 V at 10 A and +175°C (SIT10C065) and 1.75 V at 12 A and +175°C (SIT12C065)
- Typical reverse leakage 20 µA at 650 V and +175°C (IR)
- Total capacitive charge 28 nC at 400 V, 10 A, 200 A/µs (QC)
- TO-220AC case outline
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-UF4007TB-ND | 20000 | $0.30 | $0.20 | $0.20 | $0.14 | $0.09 | $0.06 | |
| Arrow Europe | UF4007 | 3372 | 1 | $0.24 | $0.16 | $0.34 | $0.14 | $0.00 | $0.00 |
| Arrow North American Components | UF4007 | 0 | 5000 | $0.33 | $0.21 | $0.19 | $0.09 | $0.07 | $0.06 |
| element14 APAC | UF4007 | 49895 | 5 | * $0.26 | * $0.21 | * $0.15 | * $0.08 | * $0.08 | |
| Mouser Electronics | 637-UF4007 | 17066 | 1 | $0.30 | $0.22 | $0.22 | $0.18 | $0.13 | $0.06 |
| Rutronik | UF4007 | 5000 | 5000 | $0.04 | |||||
| TME | UF4007 | 38240 | $0.08 | ||||||
| Verical Marketplace | UF4007 | 87842 | 489 | $0.05 | $0.05 | $0.05 | $0.05 | $0.11 | $0.07 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-DI78L12UABCT-ND | 723 | 1 | $0.20 | $0.13 | $0.12 | $0.10 | $0.08 | $0.07 |
| Ameya360 | DI78L12UAB | 685 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | |
| Arrow North American Components | DI78L12UAB | 0 | 1000 | $0.08 | $0.08 | ||||
| element14 APAC | DI78L12UAB | 747 | 500 | * $0.00 | * $0.00 | * $0.00 | * $0.00 | * $0.09 | * $0.09 |
| Farnell | DI78L12UAB | 762 | 1000 | * $0.00 | * $0.00 | * $0.00 | * $0.00 | * $0.09 | * $0.08 |
| Mouser Electronics | 637-DI78L12UAB | 2252 | 1 | $0.47 | $0.23 | $0.23 | $0.14 | $0.11 | $0.08 |
| Rutronik | DI78L12UAB | 1000 | 1000 | $0.09 | |||||
| TME | DI78L12UAB | 1845 | $0.15 | ||||||
| Verical Marketplace | DI78L12UAB | 1998 | 603 | $0.11 | $0.10 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-LDI75L05UA-ND | 0 | 1000 | $0.08 | $0.08 | ||||
| element14 APAC | LDI75L05UA | 1000 | 1 | * $0.55 | * $0.39 | * $0.27 | * $0.27 | * $0.24 | * $0.24 |
| Farnell | LDI75L05UA | 1000 | 1000 | * $0.00 | * $0.00 | * $0.00 | * $0.00 | * $0.22 | * $0.16 |
| Mouser Electronics | 637-LDI75L05UA | 0 | 1 | $0.44 | $0.32 | $0.32 | $0.22 | $0.18 | $0.10 |
| Rutronik | LDI75L05UA | 1000 | 1000 | $0.09 | |||||
| Verical Marketplace | LDI75L05UA | 1055 | 770 | $0.09 | $0.09 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-P6SMBJ6.0CA-ND | 0 | 1 | $0.35 | $0.18 | $0.18 | $0.11 | $0.08 | $0.08 |
| Mouser Electronics | 637-P6SMBJ6.0C | 0 | 1 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-3.0SMCJ110CA-ND | 0 | 3000 | $0.31 | |||||
| Arrow North American Components | 3.0SMCJ110CA | 0 | 3000 | $0.28 | |||||
| Mouser Electronics | 637-3.0SMCJ110CA | 0 | 3000 | $0.26 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 4878-3.0SMCJ12CA-ND | 0 | 3000 | $0.27 | |||||
| Mouser Electronics | 637-3.0SMCJ12CA | 0 | 1 | $0.34 | $0.28 | $0.28 | $0.23 | $0.22 | $0.22 |
