790078-01

National Instruments

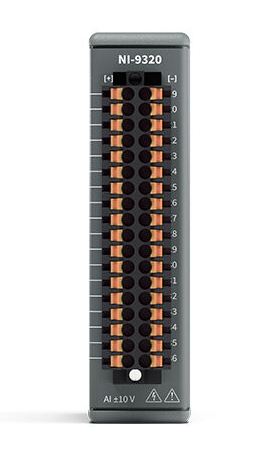

NI 9320 SPRING TERMINAL, +/-10V,

NI analog input modules feature a 200 kS/s/ch sampling rate to detect transient signals with precision

The NI-9320 16-channel simultaneous analog input module from NI helps users to leverage speed and density for high-performance data acquisition. Built on the trusted legacy of the NI-9220, this module delivers next-generation performance with a fresh design. With a 200 kS/s/ch sampling rate, the NI-9320 provides the necessary bandwidth to detect transient signals with precision, without tradeoffs in channel capacity or integrity. Designed for dynamic measurements where every microsecond matters, this module is the perfect upgrade for applications in automotive, aerospace, industrial R&D, and more.

Features:

  • 200 kS/s/ch sampling for higher-frequency dynamic signals
  • Each channel has a dedicated 16-bit SAR ADC for simultaneous sampling
  • Operating temperature range: -40°C to +70°C
  • Shock and vibration tested to 50 g
  • Compatible with CompactDAQ and CompactRIO systems
  • Programmable with LabVIEW or Python using NI-DAQ™mx or LabVIEW FPGA


Technical Specifications:

  • Channels: 16 analog input differential
  • Sampling rate: 200 kS/s/ch simultaneous
  • Isolation and safety
    • Channel-to-earth ground isolation
    • 250 V CAT II (spring terminal) RMS
    • 60 VDC CAT I (DSUB)
  • Resolution: 16-bit SAR ADC
  • Input range: ±10 V
  • Front connector
    • 36-position spring-terminal
    • 37-pin DSUB
  • Operating temperature range: -40°C to +70°C


Applications:

  • Automotive
    • EV powertrain test: characterize high-frequency inverter switching and monitor battery cell health with a single synchronized system
    • Vehicle safety systems: capture millisecond-level transients during airbag deployment and component impact tests with high fidelity
  • Aerospace and defense
    • Control surface monitoring: capture synchronized command and feedback signals to verify actuator response and control loop behavior
    • Flight test and propulsion: build compact, high-channel-count systems for wind tunnels, engine test cells, and flight test instrumentation
  • Electronics
    • PCBA and electronics validation: capture high-speed power supply ripple and transient signals to accelerate test cycles
    • Power and renewables: measure high-frequency harmonics and electrical transients for power quality and inverter testing
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
DigiKey 790078-01 0 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
element14 APAC 790078-01 5 1 * $2,281.27 * $2,281.27 * $2,281.27 * $2,281.27 * $2,281.27 * $2,281.27
Fetch live prices

781439-01

National Instruments
NI USB-6343 X SERIES DAQ (32 AI 48 DIO 4 AO)
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 781439-01 10 1 * $2,864.00 * $2,864.00 * $2,864.00 * $2,864.00 * $2,864.00 * $2,864.00
Farnell 781439-01 1 1 * $3,370.97 * $3,370.97 * $3,370.97 * $3,370.97 * $3,370.97 * $3,370.97
Mouser Electronics 781439-01 0
Newark 781439-01 2 1 $2,454.90 $2,454.90 $2,454.90 $2,454.90 $2,454.90 $2,454.90
Fetch live prices

783537-01

National Instruments
INSTRUMENT PROTECTION AND STORAGE SOFT CARRYING CASEFOR VIRTUALBENCH
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 783537-01 1 1 * $296.87 * $296.87 * $296.87 * $296.87 * $296.87 * $296.87
Farnell 783537-01 0 1 * $314.92 * $314.92 * $314.92 * $314.92 * $314.92 * $314.92
Mouser Electronics 783537-01 8 1 $181.91 $181.91 $181.91 $181.91 $181.91 $181.91
Newark 783537-01 0 1 $252.00 $252.00 $252.00 $252.00 $252.00 $252.00
Fetch live prices

783569-01

National Instruments
INSTRUMENT PROTECTION AND STORAGE DESKTOP MOUNTING KIT FOR VIRTUALBENCH
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 783569-01 1 1 * $144.89 * $144.89 * $144.89 * $144.89 * $144.89 * $144.89
Farnell 783569-01 0 1 * $143.77 * $143.77 * $143.77 * $143.77 * $143.77 * $143.77
Mouser Electronics 783569-01 0
Newark 783569-01 0 1 $118.00 $118.00 $118.00 $118.00 $118.00 $118.00
Fetch live prices

782608-01

National Instruments
USB-6003 16BIT 100 KS/S MULTIFUNCTION I/O AND NI-NAQMX
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 782608-01 46 1 * $939.44 * $939.44 * $939.44 * $939.44 * $939.44 * $939.44
Farnell 782608-01 27 1 * $1,021.42 * $1,021.42 * $1,021.42 * $1,021.42 * $1,021.42 * $1,021.42
Mouser Electronics 782608-01 0
Newark 782608-01 63 1 $856.00 $856.00 $856.00 $856.00 $856.00 $856.00
Fetch live prices

777741-01

National Instruments
ANALOG OUTPUT DEVICE, 12BIT, 1MSPS;
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 777741-01 1 1 * $2,704.18 * $2,704.18 * $2,704.18 * $2,704.18 * $2,704.18 * $2,704.18
Farnell 777741-01 0 1 * $2,717.86 * $2,717.86 * $2,717.86 * $2,717.86 * $2,717.86 * $2,717.86
Mouser Electronics 777741-01 0
Newark 777741-01 1 1 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
Fetch live prices

783090-01

National Instruments
GPIB INSTRUMENT CONTROL DEVICE, PMC;
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 783090-01 1 1 * $1,225.29 * $1,225.29 * $1,225.29 * $1,225.29 * $1,225.29 * $1,225.29
Farnell 783090-01 0 1 * $1,143.28 * $1,143.28 * $1,143.28 * $1,143.28 * $1,143.28 * $1,143.28
Mouser Electronics N/A 0
Newark 783090-01 0 1 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
Fetch live prices

779676-01

National Instruments
NI USB-6211 BUS-POWERED M SERIES MULTIFUNCTION DAQ
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 779676-01 1 1 * $2,004.68 * $2,004.68 * $2,004.68 * $2,004.68 * $2,004.68 * $2,004.68
Farnell 779676-01 28 1 * $2,127.74 * $2,127.74 * $2,127.74 * $2,127.74 * $2,127.74 * $2,127.74
Mouser Electronics N/A 0
Newark 779676-01 0 1 $1,509.90 $1,509.90 $1,509.90 $1,509.90 $1,509.90 $1,509.90
Fetch live prices

778473-04

National Instruments
USB-232/4 4-PORTUSB-232/4 4-PORT USB-TO-RS-232 CONVERTER
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 778473-04 2 1 * $1,290.65 * $1,290.65 * $1,290.65 * $1,290.65 * $1,290.65 * $1,290.65
Farnell 778473-04 2 1 * $1,344.55 * $1,344.55 * $1,344.55 * $1,344.55 * $1,344.55 * $1,344.55
Mouser Electronics 778473-04 0
Newark 778473-04 3 1 $1,102.50 $1,102.50 $1,102.50 $1,102.50 $1,102.50 $1,102.50
Fetch live prices

778835-01

National Instruments
NI PCI-6515 INDUSTRIAL 32 DI 32 SINK DO BANK ISOL. DIO & NI-DAQ
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
element14 APAC 778835-01 12 1 * $816.60 * $816.60 * $816.60 * $816.60 * $816.60 * $816.60
Farnell 778835-01 3 1 * $855.75 * $855.75 * $855.75 * $855.75 * $855.75 * $855.75
Mouser Electronics 778835-01 0
Newark 778835-01 3 1 $710.48 $710.48 $710.48 $710.48 $710.48 $710.48
