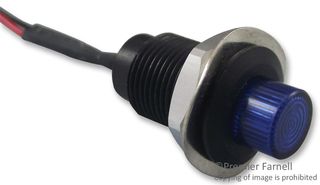

OXL/CLH/63/P/FL30/BLUE
Oxley Developments Company Ltd
LED INDICATOR 6.35MM BLU; LED Colour:Blue; Operating Voltage:3.6VDC; Mounting Hole Dia:6.35mm; Forward Current If:15mA; Luminous Intensity:900mcd; IP / NEMA Rating:IP66; Packaging:Each; Product Range:-; SVHC:No SVHC (20-Jun-2016); Bezel Depth:1.7mm; Bezel Diameter:9mm; Bulb Size:9mm; External Length / Height:13.5mm; Fixing Hole Diameter:6.35mm; Forward Current If Max:15mA; LED / Lamp Size:9mm; Lead Length:30mm; Length Behind Bezel:10.3mm; Luminous Intensity Typ:450mcd; Wavelength Typ:470nm
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | OXL/CLH/63/P/FL30/BLUE | 0 | 1 | * $7.90 | * $6.71 | * $5.85 | * $4.72 | * $4.25 | * $4.25 |
OXL/CLH/100/P/24AC/FL30/GREEN
Oxley Developments Company Ltd
LED INDICATOR 24VAC GRN; LED Colour:Green; Operating Voltage:24VAC; Mounting Hole Dia:10.15mm; Forward Current If:7.5mA; Luminous Intensity:470mcd; IP / NEMA Rating:IP66; Packaging:Each; Product Range:-; SVHC:No SVHC (12-Jan-2017); Bezel Depth:1.2mm; Bezel Diameter:12.7mm; Bulb Size:7.1mm; External Length / Height:16.5mm; Fixing Hole Diameter:10.15mm; Forward Current If Max:7.5mA; Forward Voltage:24V; Forward Voltage VF Max:24V; LED / Lamp Size:7.1mm; Lead Length:30mm; Length Behind Bezel:15.3mm; Luminous Intensity Typ:470mcd; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +85°C; Voltage Rating VAC:24V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | OXL/CLH/100/P/24AC/FL30/GREEN | 0 | 1 | * $7.98 | * $7.23 | * $6.64 | * $6.10 | * $6.10 | * $6.10 |
OXL/CLH/100/P/24AC/FL30/BLUE
Oxley Developments Company Ltd
LED INDICATOR 24VAC BLU; LED Colour:Blue; Operating Voltage:24VAC; Mounting Hole Dia:10.15mm; Forward Current If:7.5mA; Luminous Intensity:450mcd; IP / NEMA Rating:IP66; Packaging:Each; Product Range:-; SVHC:No SVHC (12-Jan-2017); Bezel Depth:1.2mm; Bezel Diameter:12.7mm; Bulb Size:7.1mm; External Length / Height:16.5mm; Fixing Hole Diameter:10.15mm; Forward Current If Max:7.5mA; Forward Voltage:24V; Forward Voltage VF Max:24V; LED / Lamp Size:7.1mm; Lead Length:30mm; Length Behind Bezel:15.3mm; Lens Shape:Dome; Luminous Intensity Typ:450mcd; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +85°C; Voltage Rating VAC:24V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | OXL/CLH/100/P/24AC/FL30/BLUE | 0 | 1 | * $2.15 | * $2.15 | * $2.15 | * $2.15 | * $2.15 | * $2.15 |
DLT4/C/330/ROHS
Oxley Developments Company Ltd
CAPACITOR FEEDTHROUGH 330PF; Capacitance:330pF; Voltage Rating:200V; Product Range:-; Capacitance Tolerance:-; Capacitor Terminals:-; Dielectric Characteristic:-; Packaging:Each; Lead Spacing:-; Operating Temperature Min:-55°C; Operating Temperature Max:+85°C; Automotive Qualification Standard:-; SVHC:No SVHC (20-Jun-2016); External Length / Height:9.1mm; Lead Diameter:0.7mm; Lead Length:14mm; Voltage Rating V DC:200V
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | DLT4/C/330/ROHS | 0 | 1 | * $15.87 | * $13.45 | * $11.72 | * $10.64 | * $10.64 | * $10.64 |
| Farnell | DLT4/C/330/ROHS | 0 | 1 | * $16.15 | * $13.69 | * $11.93 | * $9.50 | * $8.45 | * $8.45 |
050/LT/B2
Oxley Developments Company Ltd
TEST POINT PIN BALL ENDED 7A SNAPLOX; Product Range:SNAPLOX Series; Connector Colour:-; Connector Mounting:Through Hole Mount; Mounting Hole Dia:1.4mm; Contact Material:Brass; Contact Plating:Palladium Plated Contacts; SVHC:No SVHC (12-Jan-2017); Connector Type:Terminal; Contact Resistance:2mohm; Current Rating:7A; External Length / Height:10mm; Material:Brass; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; PCB Hole Diameter:1.4mm
B1060HTSMOX.R2K
Oxley Developments Company Ltd
PCB TEST POINT, COPPER ALLOY, SMD ROHS COMPLIANT: YES
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | B1060HTSMOX.R2K | 0 | 10 | * $0.00 | * $0.47 | * $0.47 | * $0.42 | * $0.39 | * $0.39 |
| Newark | B1060HTSMOX.R2K | 0 | 10 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
OXL/CLH/63/BB/24AC/FL30/ALGAAS
Oxley Developments Company Ltd
LED INDICATOR, 24VAC, RED; LED Colour:Red; Operating Voltage:24VAC; Mounting Hole Dia:6.35mm; Forward Current If:15mA; Luminous Intensity:450mcd; IP / NEMA Rating:IP66; Product Range:-; SVHC:No SVHC (07-Jul-2017); Bezel Depth:1.7mm; RoHS Compliant: Yes
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Newark | OXL/CLH/63/BB/24AC/FL30/ALGAAS | 0 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
LSB2/156/BLACK.
Oxley Developments Company Ltd
SOCKET TEST SNAPLOX; Test Probe Type:-; Test Probe Functions:-; Accuracy %:-; For Use With:-; Product Range:-; SVHC:No SVHC (20-Jun-2016); Connector Colour:Black; Contact Material:Brass; Contact Plating:Palladium Plated Contacts; Contact Resistance:2mohm; Current Rating:7A; External Length / Height:16mm; Material:PTFE; Operating Temperature Max:125°C; Operating Temperature Min:-55°C
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | LSB2/156/BLACK. | 0 | 1 | * $4.29 | * $4.29 | * $3.82 | * $3.36 | * $2.71 | * $2.71 |
| Newark | LSB2/156/BLACK. | 0 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
OXL/MIL50/FL30/H/WHITE
Oxley Developments Company Ltd
PANEL MOUNT INDICATOR LED 5MM WHITE 3.6V; LED Color:White; Mounting Hole Dia:5mm; Operating Voltage:3.6VDC; Forward Current If:20mA; Luminous Intensity:1000mcd; IP / NEMA Rating:IP67; Packaging:Each; Product Range:- ;RoHS Compliant: Yes
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Newark | OXL/MIL50/FL30/H/WHITE | 0 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
LS/B1/093 WHITE
Oxley Developments Company Ltd
$1.00
SOCKET TEST POINT WHITE; Test Probe Type:-; Test Probe Functions:-; Accuracy %:-; For Use With:-; Product Range:SMOX Series; SVHC:No SVHC (20-Jun-2016); Connector Colour:White; Contact Material:Copper; Contact Plating:Silver Plated Contacts; Contact Resistance:2mohm; Current Rating:3A; Insulation Resistance:10000Mohm; Operating Temperature Max:125°C; Operating Temperature Min:-55°C
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | LS/B1/093 WHITE | 185 | 1 | * $11.62 | * $10.26 | * $9.74 | * $9.74 | * $9.74 | * $9.74 |
| Farnell | LS/B1/093 WHITE | 263 | 1 | * $11.62 | * $10.27 | * $9.74 | * $9.74 | * $9.74 | * $9.74 |
| Newark | LS/B1/093 WHITE | 681 | 1 | $14.28 | $14.28 | $11.98 | $10.98 | $8.98 | $8.98 |
