PLUG MSTBT 2 5/ 3-ST KMGY; Product Range:-; Body Colour:Grey; Enclosure Type:Modular

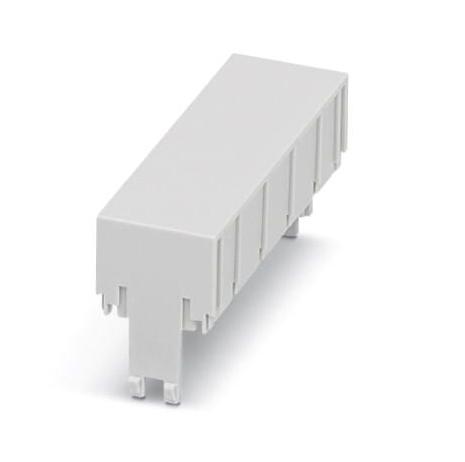

HOUSING ME MAX 6 2 SC 4-4 KMGY; Enclosure Type:Modular; Enclosure Material:PC (Polycarbonate); IP Rating:-; NEMA Rating:-; External Height - Metric:101.2mm; External Width - Metric:6.22mm; External Depth - Metric:93.1mm; Body Colour:Grey; External Height - Imperial:3.984"; External Width - Imperial:0.244"; External Depth - Imperial:3.665"; Product Range:-; No. of Switch Holes:-; SVHC:No SVHC (15-Jun-2015)

HOUSING BASE; Enclosure Type:Modular; Enclosure Material:Nylon (Polyamide) Glass Filled; IP Rating:-; NEMA Rating:-; External Height - Metric:114.5mm; External Width - Metric:22.5mm; External Depth - Metric:99mm; Body Colour:Green; External Height - Imperial:4.5"; External Width - Imperial:0.885"; External Depth - Imperial:3.897"; Product Range:-; No. of Switch Holes:-; SVHC:No SVHC (15-Jun-2015)

INTERFACE ANALOG; Signal Conditioner Input:-; Signal Conditioner Output:Current Voltage; No. of Output Channels:2Channels; Accuracy %:-; Supply Voltage Min:20VDC; Supply Voltage Max:30VDC; Power Consumption:-; Product Range:-; Accuracy:0.15%; Approval Bodies:UL; External Depth:114.5mm; External Length / Height:99mm; External Width:17.5mm; Input Voltage Max:30VDC; Input Voltage Min:20VDC; Isolation Input:Isolated; No. of Channels:1Channels; No. of Outputs:2Outputs; Operating Temperature Max:55°C; Operating Temperature Min:-20°C; Supply Voltage Range:20V DC to 30V DC; Termination Type:Screw

POWER SUPPLY 4A 24V DIN RAIL; No. of Outputs:1 Output; Output Power Max:96W; Output Voltage - Output 1:24VDC; Output Current - Output 1:4A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:85VAC; Input Voltage AC Max:264VAC; Power Supply Output Type:Adjustable Fixed; Product Range:-; Applications:General Purpose; Approval Bodies:EN UL; Height:99mm; Input Frequency:65Hz; Length:114.5mm; No. of Outputs:1Outputs; Output Current:4A; Output Voltage:24V; Power Supply Type:Switch Mode; Supply Voltage:240VAC; Supply Voltage Typ:110V AC 230V AC; Width:67.5mm

POWER SUPPLY PRIMARY SWITCH MODE; No. of Outputs:2 Output; Output Power Max:15W; Output Voltage - Output 1:15VDC; Output Current - Output 1:1A; Output Voltage - Output 2:-15VDC; Output Current - Output 2:1A; Output Voltage - Output 3:-; Output Current - Output 3:-; Output Voltage - Output 4:-; Current Output 4:-; Input Voltage AC Min:85VAC; Input Voltage AC Max:264VAC; Power Supply Output Type:Adjustable Fixed; Product Range:-; Applications:General Purpose; Approval Bodies:EN UL; Height:99mm; Input Frequency:65Hz; Length:114.5mm; No. of Outputs:2Outputs; Output Current:1A; Output Voltage:15V; Power Supply Type:Switch Mode; Supply Voltage:240VAC; Supply Voltage Typ:110V AC 230V AC; Width:45mm

CONNECTORS

TERMINAL BLOCK DIN RAIL 2POS 10AWG; No. of Positions:2Ways; Wire Size AWG Min:24AWG; Wire Size AWG Max:12AWG; Conductor Area CSA:4mm²; Wire Connection Method:Screw; Rated Current:-; Rated Voltage:-; No. of Levels:1; Product Range:USLKG; Colour:Yellow / Green; Connector Mounting:DIN Rail Mount; Connector Type:Terminal Block DIN Rail; External Width:5.2mm; Pitch Spacing:5.2mm; Voltage Rating V AC:400V; Wire Area Size Max:2.5mm²; Wire Area Size Min:0.2mm²

PLUG RJ45 CAT5E IP20 IDC/IDT; No. of Contacts:4 Contact; Gender:Plug; Connector Type:RJ45; Product Range:-; Connector Mounting:Cable Mount; Contact Plating:Tin Plated Contacts; Contact Material:Copper; Contact Termination:IDC / IDT; Contact Termination Type:IDC / IDT; No. of Contacts:4Contacts

SACCBP-MS-8CON-M16/1 0-PUR SCO
