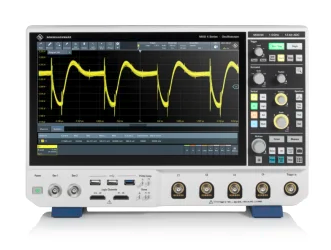

MXO44-242
Rohde & Schwarz GmbH & Co. KG
MSO / MDO Oscilloscope, MXO 4 Series, 4 Channel, 200 MHz, 2.5 GSPS, 400 Mpts, 1.75 ns
The MXO44-242 is a 4-channel oscilloscope belonging to the MXO 4 series, featuring a 13.3-inch high-definition (1,920 x 1,080) display. Numerous applications, including embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters, necessitate the observation of more than four analogue signals to accurately verify and characterize device performance, as well as to debug intricate system issues.
Features:
- 200MHz bandwidth, 4 analogue channel, 16 digital channel
- 12bit ADC, 18bit vertical architecture
- Up to 5Gsample/s sample rate
- Standard memory of 400Mpoints per channel with option for 800Mpoints
- Minimal noise of 104µV at 1GHz with 1mV/div sensitivity
- ±5V offset range with 500µV/div sensitivity
- History and segmented memory to capture up to 1 million acquisitions
- Industry's most sensitive trigger: 1/1000 vertical division
- Best-in-class trigger jitter of just 1ps
- Adjustable digital trigger filters with user-selectable hysteresis
Contents:
- Oscilloscope
- 700MHz passive probe (10:1) per channel
- Accessories bag
- Quick start guide
- Power cord
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | MXO44-242 | 2 | 1 | * $10,406.04 | * $10,406.04 | * $10,406.04 | * $10,406.04 | * $10,406.04 | * $10,406.04 |
| Farnell | MXO44-242 | 1 | 1 | * $10,081.86 | * $10,081.86 | * $10,081.86 | * $10,081.86 | * $10,081.86 | * $10,081.86 |
| Newark | MXO44-242 | 1 | 1 | $9,780.00 | $9,780.00 | $9,780.00 | $9,780.00 | $9,780.00 | $9,780.00 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | MXO44-2410 | 1 | 1 | * $28,939.61 | * $28,939.61 | * $28,939.61 | * $28,939.61 | * $28,939.61 | * $28,939.61 |
| Farnell | MXO44-2410 | 1 | 1 | * $18,156.35 | * $18,156.35 | * $18,156.35 | * $18,156.35 | * $18,156.35 | * $18,156.35 |
| Newark | MXO44-2410 | 1 | 1 | $17,999.34 | $17,999.34 | $17,999.34 | $17,999.34 | $17,999.34 | $17,999.34 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | MXO4-Z4 | 2 | 1 | * $2,349.00 | * $2,349.00 | * $2,349.00 | * $2,349.00 | * $2,349.00 | * $2,349.00 |
| Farnell | MXO4-Z4 | 1 | 1 | * $1,943.18 | * $1,943.18 | * $1,943.18 | * $1,943.18 | * $1,943.18 | * $1,943.18 |
| Newark | MXO4-Z4 | 1 | 1 | $2,335.00 | $2,335.00 | $2,335.00 | $2,335.00 | $2,335.00 | $2,335.00 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | HM8118 REFURBISHED | 0 | 1 | * $1,416.08 | * $1,416.08 | * $1,416.08 | * $1,416.08 | * $1,416.08 | * $1,416.08 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | HMP4040 REFURBISHED | 0 | 1 | * $1,077.42 | * $1,077.42 | * $1,077.42 | * $1,077.42 | * $1,077.42 | * $1,077.42 |
MXO4-B245.03
Rohde & Schwarz GmbH & Co. KG
500 Mhz Bandwidth Upgrade For R&s Mxo 44 Series Oscilloscope (Unregistered License) |Rohde & Schwarz MXO4-B245.03
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Newark | MXO4-B245.03 | 0 | 1 | $9,205.00 | $9,205.00 | $9,205.00 | $9,205.00 | $9,205.00 | $9,205.00 |
MXO4-B6.03
Rohde & Schwarz GmbH & Co. KG
Arbitrary Waveform Generator With 16 Bit Resolution, 2 Analog Channels, 100 Mhz, Bandwidth, 40 Msa/Ch Memory,312.5 Msa/S Sample Rate For R&s Mxo 4 Series Oscilloscope |Rohde & Schwarz MXO4-B6.03
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Newark | MXO4-B6.03 | 0 | 1 | $1,750.00 | $1,750.00 | $1,750.00 | $1,750.00 | $1,750.00 | $1,750.00 |
MXO4-K520.03
Rohde & Schwarz GmbH & Co. KG
Triggering And Decoding: - Can - Can-Fd - Lin For R&s Mxo 4 Series Oscilloscopes (Unregistered License) |Rohde & Schwarz MXO4-K520.03
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Newark | MXO4-K520.03 | 0 | 1 | $2,860.00 | $2,860.00 | $2,860.00 | $2,860.00 | $2,860.00 | $2,860.00 |
