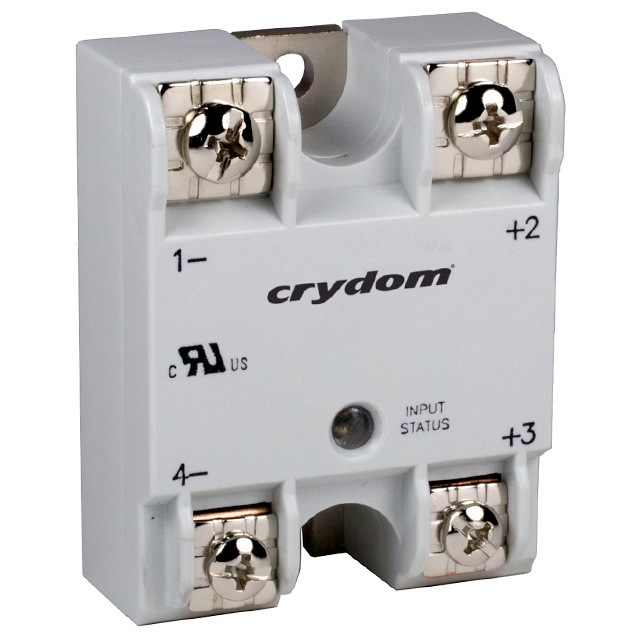

A1225
Sensata Technologies
SSR PANEL MOUNT 240VAC 280VAC 25A; C; SSR PANEL MOUNT 240VAC 280VAC 25A; Contact Configuration:SPST-NO; Load Current:25A; Operating Voltage Max:140VAC; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | CC1011-ND | 14 | 1 | $58.25 | $55.48 | $52.95 | $51.40 | $51.40 | $51.40 |
| element14 APAC | A1225 | 2 | 1 | * $51.07 | * $48.65 | * $46.44 | * $45.08 | * $45.08 | * $45.08 |
| Farnell | A1225 | 2 | 1 | * $50.06 | * $45.45 | * $43.34 | * $43.34 | * $43.34 | * $43.34 |
| Newark | A1225 | 1 | 1 | $86.56 | $81.93 | $78.60 | $78.60 | $78.60 | $78.60 |
| Verical Marketplace | A1225 | 17 | 1 | $63.07 | $42.32 | $42.32 | $42.32 | $42.32 | $42.32 |
| Win Source | A1225 | 1630 | 1 |
CMX60D10
Sensata Technologies
SSR 10A 60VDC; Contact Configuration:SPST-NO; Load Current:10A; Operating Voltage Max:60VDC; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:DC Switch; Operating Voltage Min:0VDC; Control Voltage Min:3VDC; Control Voltage Max:10VDC; Product Range:CMX Series; SVHC:No SVHC (07-Jul-2017); Control Current @ 5VDC:15mA; Control Voltage DC Max:10VDC; Control Voltage DC Min:3VDC; Control Voltage Range:3V DC to 10V DC; Control Voltage Type:DC; Dielectric Strength VAC:2500V; External Depth:7.6mm; External Length / Height:25.4mm; External Width:43mm; Forward Current If:15mA; Input Current:15mA; Input Impedance:300ohm; Input Voltage:3V DC to 10V DC; Insulation Resistance:1000Mohm; Isolation Voltage:2.5kV; Leakage Current:0.1mA; Load Current Max:10A; Load Current Min:0A; Load Current RMS Max:10A; Load Voltage DC Max:60V; Load Voltage DC Min:0V; Load Voltage Max:60VDC; Load Voltage Range:0V DC to 60V DC; No. of Pins:4Pins; Operating Temperature Max:80°C; Output Type:MOSFET
CN024D24
Sensata Technologies
SSR SIP 24VDC/3.5A 24VDC INPUT; Contact Configuration:SPST-NO; Load Current:3.5A; Operating Voltage Max:24VDC; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:0VDC; Control Voltage Min:15VDC; Control Voltage Max:30VDC; Product Range:CN Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:30VDC; Control Voltage DC Min:15VDC; Control Voltage Range:15V DC to 30V DC; Control Voltage Type:DC; Current Rating:7mA; Input Voltage:0V DC to 24V DC; Load Voltage Range:15V DC to 30V DC; Operating Voltage Range:0V DC to 24V DC
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | CN024D24 | 59 | 1 | $62.28 | $59.32 | $56.62 | $54.96 | $54.96 | $54.96 |
| element14 APAC | CN024D24 | 64 | 1 | * $29.59 | * $25.11 | * $24.09 | * $24.09 | * $24.09 | * $24.09 |
| Farnell | CN024D24 | 64 | 1 | * $28.79 | * $25.89 | * $25.37 | * $25.37 | * $25.37 | * $25.37 |
| Newark | CN024D24 | 54 | 1 | $27.58 | $27.58 | $27.58 | $27.58 | $27.58 | $27.58 |
| TME | CN024D24 | 17 | $29.20 | ||||||
| Verical Marketplace | CN024D24 | 2 | 2 | $23.69 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
CX380D5
Sensata Technologies
SSR 5A 380VAC; Contact Configuration:SPST-NO; Load Current:5A; Operating Voltage Max:530Vrms; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:48Vrms; Control Voltage Min:4VDC; Control Voltage Max:15VDC; Product Range:CX Series; SVHC:No SVHC (07-Jul-2017); Approval Bodies:CSA VDE; Approval Category:UL Recognised; Blocking voltage:1200V; Control Current Typ:15mA; Control Voltage DC Max:15VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 15V DC; Control Voltage Type:DC; Current Load AC Max:5A; Dielectric Strength VAC:4000V; External Depth:7.6mm; External Length / Height:25.4mm; External Width:43.1mm; I2t:260s; Input Impedance:240ohm; Insulation Resistance:1000Mohm; Leakage Current:0.1mA; Load Current Min:0.06A; Load Current RMS Max:5A; Load Voltage Range:48Vrms to 530Vrms; No. of Pins:4Pins; Operating Temperature Max:80°C; Operating Temperature Min:-30°C; Output Type:SCR; Pin Length:7.6mm; RMS Load Current Min:0.06A
D06D60
Sensata Technologies
SSR 60A 60VDC; Contact Configuration:SPST-NO; Load Current:60A; Operating Voltage Max:60VDC; Relay Mounting:Panel; Relay Terminals:Screw; Switching Mode:DC Switch; Operating Voltage Min:0VDC; Control Voltage Min:3.5VDC; Control Voltage Max:32VDC; Product Range:D06D Series; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:32VDC; Control Voltage DC Min:3.5VDC; Control Voltage Range:3.5V DC to 32V DC; Control Voltage Type:DC; Current Rating:60A; External Depth:22.9mm; External Length / Height:47.5mm; External Width:45.7mm; Insulation Resistance:1000Mohm; Isolation Voltage:2.5kV; Leakage Current:0.1mA; Load Current Min:5mA; Load Current RMS Max:60A; Load Voltage DC Max:32VDC; Load Voltage DC Min:3.5VDC; Operating Temperature Max:80°C; Operating Temperature Min:-30°C; Operating Voltage Range:0V DC to 60V DC; Output Type:MOSFET; RMS Load Current Min:5mA; RMS Load Voltage Max:60VDC; Single Cycle Surge Current:180A; Surge Current:180A; Turn Off Time:1µs; Turn On Time:300µs
DR24D12
Sensata Technologies
SSR 240VAC/12A 4-32VDC IN 18MM; Contact Configuration:-; Load Current:12A; Operating Voltage Max:280VAC; Relay Mounting:DIN Rail; Relay Terminals:Screw; Switching Mode:Zero Crossing; Operating Voltage Min:24VAC; Control Voltage Min:4VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Control Voltage DC Max:32VDC; Control Voltage DC Min:4VDC; Control Voltage Range:4V DC to 32V DC; Control Voltage Type:DC; Operating Voltage Range:24V AC to 280V AC; Peak Surge Current:750A
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | DR24D12 | 0 | 1 | $84.18 | $80.17 | $76.53 | $74.28 | $74.28 | $74.28 |
| element14 APAC | DR24D12 | 58 | 1 | * $76.35 | * $74.86 | * $74.86 | * $74.86 | * $74.86 | * $74.86 |
| Farnell | DR24D12 | 66 | 1 | * $78.52 | * $70.67 | * $70.67 | * $70.67 | * $70.67 | * $70.67 |
| Newark | DR24D12 | 1 | 1 | $92.38 | $87.44 | $87.44 | $87.44 | $87.44 | $87.44 |
| Verical Marketplace | DR24D12 | 12 | 1 | $68.89 | $68.89 | $68.89 | $68.89 | $68.89 | $68.89 |
DRA1-CMXE100D10
Sensata Technologies
SSR 10A 20-28VDC 1-100VDC; Contact Configuration:SPST-NO; Load Current:10A; Operating Voltage Max:100VDC; Relay Mounting:DIN Rail; Relay Terminals:Cage Clamp; Switching Mode:DC Switch; Operating Voltage Min:1VDC; Control Voltage Min:20VDC; Control Voltage Max:28VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017)
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | DRA1-CMXE100D10 | 1 | |||||||
| element14 APAC | DRA1-CMXE100D10 | 256 | $145.98 | ||||||
| Farnell | DRA1-CMXE100D10 | 555 | $81.77 | ||||||
| Newark | DRA1-CMXE100D10 | 2 | $117.90 | ||||||
| TME | DRA1-CMXE100D10 | 4 | $91.94 | ||||||
| Verical Marketplace | DRA1-CMXE100D10 | 3 |
DRA1-CXE240D5
Sensata Technologies
SSR DIN MODULE 280VAC 5A; Contact Configuration:SPST-NO; Load Current:5A; Operating Voltage Max:280VAC; Relay Mounting:DIN Rail; Relay Terminals:Cage Clamp; Switching Mode:Zero Crossing; Operating Voltage Min:12VAC; Control Voltage Min:15VDC; Control Voltage Max:32VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017); Control Current @ 5VDC:15mA; Control Voltage DC Max:32VDC; Control Voltage DC Min:15VDC; Control Voltage Range:15V DC to 32V DC; Control Voltage Type:DC; Isolation Voltage:4kV; Load Current RMS Max:5A; Operating Voltage Range:12V AC to 280V AC; Peak Surge Current:250A; RMS Load Current Min:0.06A; RMS Load Voltage Max:280V; RMS Load Voltage Min:12V; Surge Current:239A
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | DRA1-CXE240D5 | 15 | |||||||
| element14 APAC | DRA1-CXE240D5 | 64 | $85.13 | ||||||
| Farnell | DRA1-CXE240D5 | 28 | $48.82 | ||||||
| Newark | DRA1-CXE240D5 | 1 | $70.05 | ||||||
| TME | DRA1-CXE240D5 | 15 | $58.30 | ||||||
| Verical Marketplace | DRA1-CXE240D5 | 7 |
DRH3P60D20
Sensata Technologies
CONTACTOR 3P 600VAC 20A DINRAIL; Load Current:20A; Operating Voltage Max:600VAC; Control Voltage Max:32VDC; Switching Mode:Zero Voltage Turn On; Contactor Mounting:DIN Rail; Contactor Terminals:Screw; Operating Voltage Min:48VAC; Control Voltage Min:4VDC; Product Range:-; SVHC:No SVHC (12-Jan-2017)
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | DRH3P60D20 | 1 | 1 | $193.80 | $184.57 | $176.18 | $176.18 | $176.18 | $176.18 |
| element14 APAC | DRH3P60D20 | 5 | 1 | * $205.13 | * $205.13 | * $205.13 | * $205.13 | * $205.13 | * $205.13 |
| Farnell | DRH3P60D20 | 7 | 1 | * $196.69 | * $196.69 | * $196.69 | * $196.69 | * $196.69 | * $196.69 |
| Newark | DRH3P60D20 | 5 | 1 | $246.94 | $246.94 | $246.94 | $246.94 | $246.94 | $246.94 |
| Verical Marketplace | DRH3P60D20 | 15 | 1 | $232.30 | $170.60 | $170.60 | $170.60 | $170.60 | $170.60 |
DR-IDC5
Sensata Technologies
I/O MODULE; Current Rating:34mA; Product; I/O MODULE; Current Rating:34mA; Product Range:DR Series; Accessory Type:DC Input Module; External Depth:17.5mm; External Width:70mm; For Use With:Crouzet Solid State Relays; Length:59mm; No. of Analog Inputs:1; Output Current:16mA
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | CC1906-ND | 0 | 1 | $71.85 | $68.43 | $65.32 | $63.40 | $63.40 | $63.40 |
| element14 APAC | DR-IDC5 | 1 | 1 | * $59.52 | * $56.69 | * $54.12 | * $52.51 | * $52.51 | * $52.51 |
| Farnell | DR-IDC5 | 1 | 1 | * $49.70 | * $46.91 | * $46.05 | * $46.05 | * $46.05 | * $46.05 |
| Newark | DR-IDC5 | 12 | 2 | $99.00 | $93.71 | $89.90 | $89.90 | $89.90 | $89.90 |
| Verical Marketplace | DR-IDC5 | 12 | 1 | $94.18 | $78.27 | $78.27 | $78.27 | $78.27 | $78.27 |
