THM 15-4822WI
TRACOPOWER
TRACOPOWER THM 15WI 15W Isolated DC-DC Converter Through Hole, Vin 18 → 75 V dc, Vout ±12V dc Medical Approved. Input Voltage Nominal: 48 V dc. Output Current: ±625mA. Medical Approved: Yes. Package: 1.6 x 1 in. Efficiency: 0.885. Minimum Temperature: -40°C. Maximum Temperature: +85°C. Load Regulation: 0.01. Line Regulation: 0.005. Length: 40.6mm. MPN: THM 15-4822WI
TIM 3.5-0915SM
TRACOPOWER
TRACOPOWER TIM 3.5 3.5W Isolated DC-DC Converter Surface Mount, Vin 4.5 → 12 V dc, Vout 24V dc Medical Approved. Input Voltage Nominal: 9 V dc. Medical Approved: Yes. Package: SMD 16. Protection Features: Patient Protection. Standards Met: EN 55022, IEC/EN/ES 60601-1. Length: 24.3mm. Special Features: 2:1 Input Voltage with Extended, Isolation 5000 Vrms ac Rated for 250 Vrms ac Working Voltage, Low Leakage Current. Width: 14.4mm. MPN: TIM 3.5-0915SM
TIM 3.5-1211
TRACOPOWER
TRACOPOWER TIM 3.5 3.5W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout 5V dc Medical Approved. Input Voltage Nominal: 12 V dc. Medical Approved: Yes. Package: DIP 16. Protection Features: Patient Protection. Depth: 10.2mm. Width: 14.4mm. Special Features: 2:1 Input Voltage with Extended, Isolation 5000 Vrms ac Rated for 250 Vrms ac Working Voltage, Low Leakage Current. Standards Met: EN 55022, IEC/EN/ES 60601-1. Length: 24.3mm. MPN: TIM 3.5-1211
TIM 3.5-4813
TRACOPOWER
TRACOPOWER TIM 3.5 3.5W Isolated DC-DC Converter Through Hole, Vin 36 → 75 V dc, Vout 15V dc Medical Approved. Input Voltage Nominal: 48 V dc. Medical Approved: Yes. Package: DIP 16. Length: 24.3mm. Protection Features: Patient Protection. Depth: 10.2mm. Width: 14.4mm. Special Features: 2:1 Input Voltage with Extended, Isolation 5000 Vrms ac Rated for 250 Vrms ac Working Voltage, Low Leakage Current. Standards Met: EN 55022, IEC/EN/ES 60601-1. MPN: TIM 3.5-4813
TPP 30-109A-J
TRACOPOWER

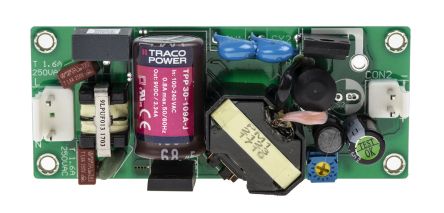

TRACOPOWER 30W Embedded Switch Mode Power Supply SMPS, 3.34A, 9V dc Medical Approved. Input Voltage: 120 → 370 V dc, 85 → 264 V ac. Number of Outputs: 1. Mounting Type: Chassis Mount. Package Type: Open Frame. Length: 84.8mm. Width: 34.6mm. Medical Approved: Yes. Depth: 19.6mm. Ripple And Noise: 50mV Pk-Pk. Load Regulation: 0.005. Line Regulation: 0.002. Minimum Temperature: -40°C. MPN: TPP 30-109A-J
TMR 6-2410WIR
TRACOPOWER
TRACOPOWER TMR 6WI 6W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout 3.3V dc. Input Voltage Nominal: 24 V dc. Isolation Voltage: 1600V dc. Output Current: 1.5A. Number of Outputs: 1. Package: SIP 8. Railway Approved: Yes. Minimum Temperature: -40°C. Maximum Temperature: +100°C. Load Regulation: 0.005. Line Regulation: 0.002. Length: 21.8mm. MPN: TMR 6-2410WIR
TIM 3.5-0911SM
TRACOPOWER
TRACOPOWER TIM 3.5 3.5W Isolated DC-DC Converter Surface Mount, Vin 4.5 → 12 V dc, Vout 5V dc Medical Approved. Input Voltage Nominal: 9 V dc. Medical Approved: Yes. Package: SMD 16. Depth: 10.5mm. Protection Features: Patient Protection. Length: 24.3mm. Width: 14.4mm. Standards Met: EN 55022, IEC/EN/ES 60601-1. MPN: TIM 3.5-0911SM
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | TIM 3.5-0911SM | 10 | $56.24 | ||||||
| Farnell | TIM 3.5-0911SM | 10 | $34.70 | ||||||
| Newark | TIM 3.5-0911SM | 0 | $40.45 | ||||||
| RS Components | TIM 3.5-0911SM | 0 | $207.60 | ||||||
| RS Components (APAC) | TIM 3.5-0911SM | 0 | $715.44 | ||||||
| TME | TIM 3.5-0911SM | 2 | $60.98 |
TIM 3.5-1219
TRACOPOWER
TRACOPOWER TIM 3.5 3.5W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout 9V dc Medical Approved. Input Voltage Nominal: 12 V dc. Medical Approved: Yes. Package: DIP 16. Length: 24.3mm. Protection Features: Patient Protection. Depth: 10.2mm. Width: 14.4mm. Special Features: 2:1 Input Voltage with Extended, Isolation 5000 Vrms ac Rated for 250 Vrms ac Working Voltage, Low Leakage Current. Standards Met: EN 55022, IEC/EN/ES 60601-1. MPN: TIM 3.5-1219
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | TIM 3.5-1219 | 5 | 1 | $50.60 | $48.19 | $46.72 | $42.83 | $42.83 | $42.83 |
| Farnell | TIM 3.5-1219 | 5 | 1 | $28.29 | $26.80 | $25.80 | $25.38 | $25.38 | $25.38 |
| Newark | TIM 3.5-1219 | 5 | 10 | $37.86 | $37.86 | $37.86 | $37.86 | $37.86 | $37.86 |
| RS Components | TIM 3.5-1219 | 0 | $37.07 | ||||||
| RS Components (APAC) | TIM 3.5-1219 | 0 | $680.68 |
TIM 2-1223
TRACOPOWER
TRACOPOWER TIM 2 2W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout ±15V dc Medical Approved. Input Voltage Nominal: 12 V dc. Output Current: ±67mA. Medical Approved: Yes. Package: DIP 16. Efficiency: 0.83. Minimum Temperature: -40°C. Maximum Temperature: +105°C. Load Regulation: 0.01. Line Regulation: 0.002. Length: 24.3mm. MPN: TIM 2-1223
TIM 2-1213
TRACOPOWER
TRACOPOWER TIM 2 2W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout 15V dc Medical Approved. Input Voltage Nominal: 12 V dc. Output Current: 134mA. Medical Approved: Yes. Package: DIP 16. Minimum Temperature: -40°C. Maximum Temperature: +105°C. Load Regulation: 0.01. Line Regulation: 0.002. Special Features: Isolation 5000 Vrms ac Rated for 250 Vrms ac Working Voltage, Low Leakage Current, Wide 2:1 Input Voltage. Ripple And Noise: 50mV Pk-Pk. MPN: TIM 2-1213
