ADS1274IPAPTG4

Texas Instruments ADS1274IPAPTG4

ADS1278MPAPTEP

Texas Instruments ADS1278MPAPTEP

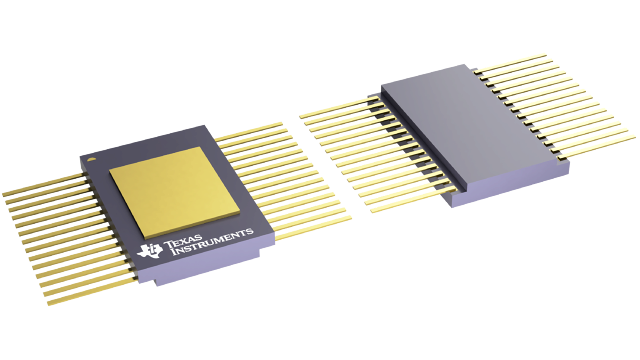

ADS1282HKV/EM

Texas Instruments ADS1282HKV/EM

ADS1282IPW

Texas Instruments ADS1282IPW

ADS131A02IPBS

Texas Instruments ADS131A02IPBS

ADS1606IPAPT

Texas Instruments ADS1606IPAPT

ADS4125IRGZT

Texas Instruments ADS4125IRGZT

ADS41B29IRGZT

Texas Instruments ADS41B29IRGZT

ADS4222IRGCR

Texas Instruments ADS4222IRGCR

ADS4222IRGCT

Texas Instruments ADS4222IRGCT

Price $27.16
RoHS Compliant Compliant TBD Compliant Yes Yes Yes Yes Compliant Yes
Lead Status No No No No Yes Yes Yes Yes No Yes
Digital Supply(Max)(V) 2.2 2.2 3.6 3.6 3.6 5.25
Input Range(Min)(V) 0 -1.5 0
Integrated Features Daisy-Chainable PGA Daisy-Chainable N/A
Power Consumption(Typ)(mW) 275 530 30 27 1.2 560 136 350 183 183
Analog Voltage AVDD(Max)(V) 5.25 5.25 5.25 5.25 5.5 5.25
Interface SPI SPI SPI Serial,Serial SPI SPI Parallel Parallel CMOS,Parallel LVDS Parallel CMOS,Parallel LVDS Parallel CMOS,Parallel LVDS Parallel CMOS,Parallel LVDS
THD(Typ)(dB) -108 -100 -101
Input Type Differential Differential Differential
Rating Catalog HiRel Enhanced Product Space Catalog Catalog Catalog Catalog Catalog Catalog Catalog
Package Size mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2
Operating Temperature Range(C) -40 to 125 -55 to 125 -55 to 115,-55 to 125,25 to 25 -40 to 85 -40 to 125 -40 to 85 -40 to 85 -40 to 85 -40 to 85 -40 to 85
Digital Supply(Min)(V) 1.65 1.65 1.75 1.65 1.65 2.7
# Input Channels 4 8 2 2 2 1 1 1 2 2
Approx. Price (US$) 14.65 | 1ku 34.50 | 1ku 2.10 | 1ku 22.42 | 1ku 22.55 | 1ku 38.25 | 1ku 14.40 | 1ku 14.40 | 1ku
Architecture Delta-Sigma Delta-Sigma Delta-Sigma Delta-Sigma Delta-Sigma Delta-Sigma Pipeline Pipeline Pipeline Pipeline
Package Group HTQFP HTQFP CFP TSSOP TQFP HTQFP VQFN VQFN VQFN VQFN
Resolution(Bits) 24 24 31 31 24 16 12 12 12 12
Input Range(Max)(V) 5.25 4.5 4.7
Reference Mode Ext Ext Ext Ext Ext,Int Ext,Int Int Int Int Int
INL(Max)(+/-LSB) 201.4 201.4 8 0.75 3.5 3.5 3.5 3.5
Analog Voltage AVDD(Min)(V) 4.75 4.75 4.75 4.75 3 4.75
Sample Rate (max)(SPS) 144kSPS 144kSPS 4kSPS 4kSPS 128kSPS 5MSPS
SNR(dB) 111 111 124 130 115.2 84 70.9 69.2 70.9 70.9
Multi-Channel Configuration Simultaneous Sampling Simultaneous Sampling N/A
SINAD(dB) 101 84 70.1 68.3 70.8 70.8
Sample Rate(Max)(MSPS) 125 250 65 65
Input Buffer No Yes No No
SFDR(dB) 88 89 91 91
Input Range 2V (p-p) 1.5V (p-p) 2V (p-p) 2V (p-p)
ENOB(Bits) 11.4 11.07 11.5 11.5
DNL(Max)(+/-LSB) 0.95 1.5 1.5
Analog Input BW(MHz) 800 800 600 600
