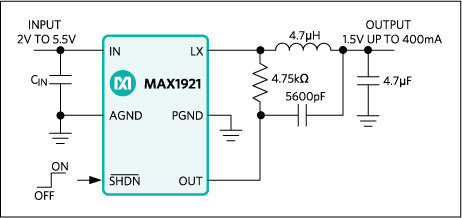

The MAX1920/MAX1921 step-down converters deliver over 400mA to outputs as low as 1.25V. These converters use a unique proprietary current-limited control scheme that achieves over 90% efficiency. These devices maintain extremely low quiescent supply current (50µA), and their high 1.2MHz (max) operating frequency permits small, low-cost external components. This combination makes the MAX1920/MAX1921 excellent high-efficiency alternatives to linear regulators in space-constrained applications.Internal synchronous rectification greatly improves efficiency and eliminates the external Schottky diode required in conventional step-down converters. Both devices also include internal digital soft-start to limit input current upon startup and reduce input capacitor requirements.The MAX1920 provides an adjustable output voltage (1.25V to 4V). The MAX1921 provides factory-preset output voltages (see the Selector Guide). Both are available in space-saving 6-pin SOT23 packages. TheMAX1920 is also available in a 6-pin TDFN package.ApplicationsBattery-Powered ApplicationsCDMA Power Amplifier SupplyNext-Generation Wireless handsetsPDAs, Palmtops, and Handy Terminals

Ethernet Modules IE-MiniMc/Telco-LFPT FX-MM1300-ST

USB Cables / IEEE 1394 Cables har-port USB 2.0 A-A; PFT 0,5m cable

Headers & Wire Housings 5POS,PICO MQS,REC HSG,UNSLD

Automotive-Grade Mini Signal Connector System

TE Connectivity's PicoMQS is a 1.27 mm miniaturized, robust, and reliable connector system designed for space-constrained signal interfaces in automotive applications.

Benefits:

• Automotive-Grade Robustness: Class 2 vibration stability, with a maximum temperature of +130°C (Sn) or +150°C (Ag). It supports 0.22 mm² wire and continuous current capability up to 4 A at +80°C.
• Space and Weight Reduction: Achieves up to a 78% reduction in packaging weight compared to traditional MQS systems, a 30% reduction in pin pitch to 1.27 mm, and a 55% reduction in crimp length, all while maintaining full LV214 qualification.
• Enhanced Connection Security: Features anti-scooping design, secondary locking system, and Kojiri connector design for secure connections.
• Manufacturing Efficiency: Simplifies manufacturing with automated pin insertion and S-bending solder pin design for precise header board positioning, reducing pin length by 4 mm (42% shorter).

Key Features:

• Pin-to-Pin Pitch: 1.27 mm
• Vibration Grade: SG2
• Wire Range: 0.13 mm² to 0.22 mm²
• Current Capacity: 4 A at +90°C
• Mating Blade Size: 0.5 mm x 0.4 mm
• Header Design: S-bended pin
• Maximum Temperature: +130°C (Sn) / +150°C (Ag)
• Compliance: Automotive standard LV214
• Locking Mechanisms: Primary and secondary contact locking with a click-audible connector position assurance (CPA) possible
• Electrical Specifications: Clearance and creepage distance suitable for 12 V applications
• Future Developments: FFC terminal in development
• Configurations: Available in 2- to 10-position side latch housings and headers, and receptacle options (0.22 FLU and FLR, 0.13 FLR)

Applications:

• Automotive Lighting: Headlamps and indicators
• Controls: Steering wheel controls
• Cameras: Front and rear cameras
• Sensors and Modules: Switches, sensors, roof controls, and antenna modules
• HVAC Systems
• Electrical Systems: Wire harnesses and electrical systems
• Audio Systems: Audio modules
• Battery Management: Battery applications, including battery management systems and battery/cell control modules
