Ethernet Development Tools 3-Port Copper 10/100 Ethernet Switch with 1x RMII Interface - Evaluation Board

Ethernet Development Tools 5-Port 10/100 with RGMII/GMII - Evaluation Board

Ethernet Development Tools Single Ethernet Port + Generic (16-bit) Bus Interface Eval Board

Ethernet Development Tools Eval - 10/100 PHY w/EEE & WOL, 0.11u

Ethernet Development Tools Eval - 10/100 PHY w/EEE & WOL, 0.11u

Ethernet Development Tools 5-Port 10/100 with RGMII/GMII - Evaluation Board

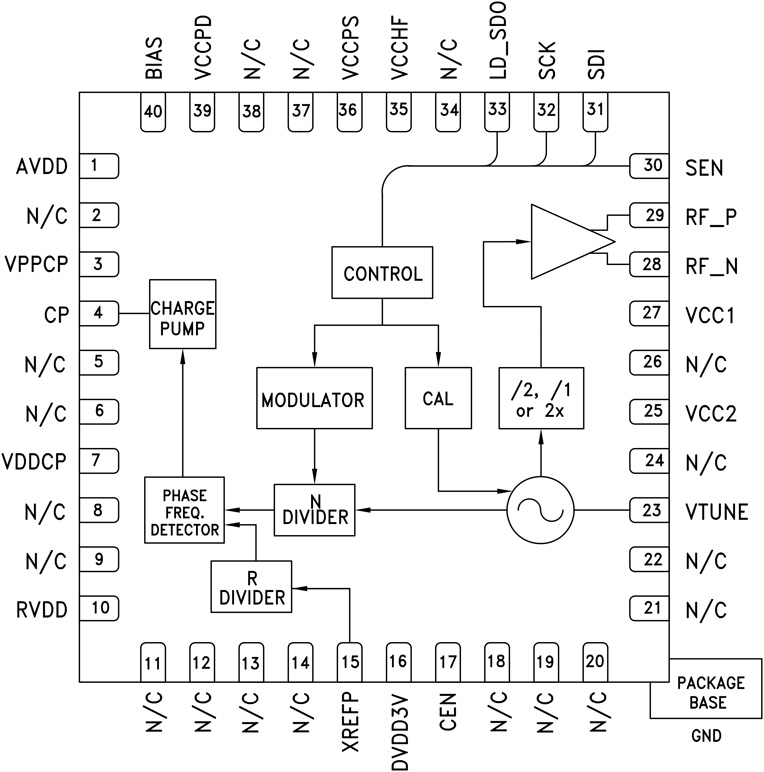

The HMC820LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an Integrated Voltage Controlled Oscillator (VCO). The synthesizer consists of an integrated low noise VCO with a triband output, an autocalibration subsystem for low voltage VCO tuning, a very low noise digital Phase Detector (PD), a precision controlled charge pump, a low noise reference path divider and a fractional divider.The fractional synthesizer features an advanced delta-sigma modulator design that allows both ultra-fine step sizes and low spurious products. The phase detector (PD) features cycle slip prevention (CSP) technology to allow faster frequency hopping times. Ultra low in-close phase noise and low spurious also allows wider loop bandwidths for faster frequency hopping and low micro-phonics.For theory of operation and register map refer to the 'PLLs with Integrated VCO - RF VCOs' Operating Guide.Applications Cellular/4G Infrastructure Repeaters and Femtocells Communications Test Equipment CATV Equipment Phased Array Applications DDS Replacement? Very High Data Rate Radios

The HMC767LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an integrated Voltage Controlled Oscillator (VCO). The input reference frequency range is DC to 350 MHz while the advanced delta-sigma modulator design in the fractional synthesizer allows both ultra-fine step sizes and very low spurious products. The highly integrated structure provides excellent phase noise performance over temperature, shock and process. In addition, the HMC767LP6CE offers frequency sweep and modulation features, external triggering, double-buffering, exact frequency control, phase modulation and more. The HMC767LP6CE is packaged in a leadless QFN 6 x 6 mm surface mount package.For theory of operation and register map refer to the 'PLLs w/ Integrated VCO - Microwave VCOs' Operating Guide.Applications VSAT Radio Microwave Point-To-Point Radios Test Equipment & Industrial Control Military End-Use Phased Array Applications FMCW Radar Systems

The HMC1010LP4E Power Detector is designed for RF power measurement, and control applications for frequencies up to 3.9 GHz. The detector provides an accurate RMS representation of any RF/IF input signal. The output is a temperature compensated monotonic, representation of real signal power, measured with an input sensing range of 60 dB.The HMC1010LP4E is ideally suited to those wide bandwidth, wide dynamic range applications, requiring repeatable measurement of real signal power, especially where RF/IF wave shape and/or crest factor change with time.The integration bandwidth of the HMC1010LP4E is digitally programmable with the use of input pins SC I1- 4 with a range of more than 4 decades. This allows the user to dynamically set the operation bandwidth providing the capability of handling different types of modulations on the same platform.The HMC1010LP4E features an internal op-amp at output stage, which provides for slope & intercept adjustments and enables controller application.Applications Log ?> Root-Mean-Square?(RMS) Conversion Received Signal Strength?Indication (RSSI) Transmitter Signal Strength?Indication (TSSI) RF Power Amplifier Efficiency Control Receiver Automatic Gain Control Transmitter Power Control

The HMC704 has been designed for the best phase noise and lowest spurious content possible in an integrated synthesizer. Fabricated in a SiGe BiCMOS process, this Fractional-N frequency synthesizer consists of a very low noise digital phase detector, VCO divider, reference divider and a precision controlled charge pump.Ultra low in-close phase noise and low spurious allows wide loop bandwidths for faster frequency hopping and low micro-phonics. Exact frequency mode with 24-bit fractional modulator provides the ability to generate fractional frequencies with zero frequency error, an important feature for Digital Pre-Distortion systems.The serial interface offers read back capability and is compatible with a wide variety of protocols.Applications Microwave Point-to-Point Radios? Base Stations for Mobile Radio (GSM, PCS, DCS, CDMA, WCDMA) Wireless LANs, WiMAX Communications Test Equipment CATV Equipment Automotive
