2.5 V to 5.5 V, 230 A, Dual Rail-to-Rail Voltage Output 8-Bit DAC in a 10-Lead MicroSOIC Package Features: Two 8-Bit DACS in one package Micropower: 300 µA @ 5 V (including Reference Current) Power-Down to 200 nA @ 5 V, 50nA @ 3 V Guaranteed Monotonic by Design Power-On-Reset to Zero Volts Buffered/Unbuffered Reference Input Options O-VREF Output Voltage Low Power,SPI™, QSPI™, MICROWIRE™ and DSP-Compatible 3-Wire Serial Interface Output Buffer Amplifiers with Rail-to-Rail Operation Simultaneous Update of DAC Outputs via LDAC pin (active low) Temperature Range: -40°C to 105°C Three Power-Down Functions

CONNECTORS D-SUB PLUG R/A 25POS PCB AU

minSO G=15dB LO DISTORTN 1.2GHz DiffAmp

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

1 nV/Hz, Low Power, Rail-to-Rail Output Amplifiers Features: Low wideband noise   1 nV/√Hz   2.8 pA/√Hz Low 1/f noise   2.4 nV/√Hz @ 10 Hz Low distortion: −115 dBc @ 100 kHz, VOUT = 2 V p-p Low power: 3 mA/amp Low input offset voltage: 0.5 mV maximum High speed   230 MHz, −3 dB bandwidth       (G = +1)   120 V/μs slew rate   45 ns settling time to 0.1% Rail-to-rail output Wide supply range: 3 V to 10 V Disable feature (ADA4897-1)

2.7 V to 5.5 V, 450 A, Rail-to-Rail Output, Quad, 16-Bit nanoDAC Features: Low power quad nanoDACs: 16 Bits Relative Accuracy: ±12 LSBs max Guaranteed monotonic by design 10-lead MSOP and 3mm × 3mm LFCSP_WD package 2.7 V to 5.5 V power supply Power-on reset to zero Per channel power-down Serial interface, up to 50MHz

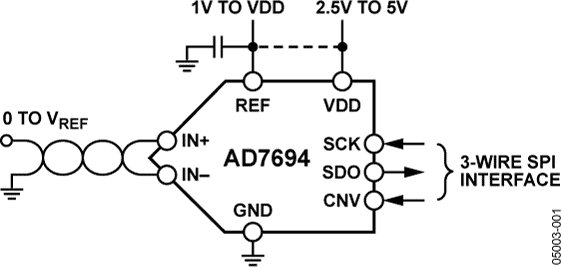

250 kSPS 16-BIT PulSAR A/D Converter in SOIC Features: 16 Bits Resolution Throughput: 250 kSPS INL: ±4 LSB Max Power Dissipation: 800 µA @ 5V/100 kSPS 540 µA @ 2.7V/100 kSPS Pseudo-Differential Analog Input Range: 0 V to VREF with VREF up to VDD S/(N+D): 92 dB @ 20 kHz No Pipeline Delay Single Supply Operation 2.7 V or 5 V Serial Interface SPI®/QSPI™/µWire/DSP compatible µSOIC Package (µSO8) Improved 2nd Source of LTC1864 and LTC1864L

Low Cost, High Speed Rail-to-Rail Amplifier (Dual) Features:Low cost single (AD8091) and dual (AD8092) amplifiers Fully specified at +3 V, +5 V, and 5 V supplies Single-supply operation Output swings to within 25 mV of either rail High speed and fast settling on 5 V110 MHz, 3 dB bandwidth (G = +1)145 V/s slew rate50 ns settling time to 0.1% Good video specifications (G = +2)Gain flatness of 0.1 dB to 20 MHz; RL = 150 0.03% differential gain error; RL = 1 k0.03%differential phase error; RL = 1 kLow distortion 80 dBc total harmonic @ 1 MHz; RL = 100 Outstanding load drive capabilityDrives 45 mA, 0.5 V from supply railsDrives 50 pF capacitive load (G = +1) Low power of 4.4 mA per amplifier

Low Cost 200 MHz Differential Receiver Amplifier Features:High SpeedAD8130: 270 MHz, 1090 V/s @ G = +1AD8129: 200 MHz, 1060 V/s @ G = +10High CMRR94 dB min, dc to 100 kHz80 dB min @ 2 MHz70 dB @ 10 MHzHigh input impedance: 1 M differentialLow noiseAD8130: 12.5 nV/HzAD8129: 4.5 nV/HzInput common-mode range 10.5 VLow distortion, 1 V p-p @ 5 MHz:AD8130, -79 dBc worst harmonic @ 5 MHzAD8129, -74 dBc worst harmonic @ 5 MHzUser-adjustable gainNo external components for G = +1Power supply range +4.5 V to 12.6 VPower-down

Low Cost 200 MHz Differential Receiver Amplifier Features:High SpeedAD8130: 270 MHz, 1090 V/s @ G = +1AD8129: 200 MHz, 1060 V/s @ G = +10High CMRR94 dB min, dc to 100 kHz80 dB min @ 2 MHz70 dB @ 10 MHzHigh input impedance: 1 M differentialLow noiseAD8130: 12.5 nV/HzAD8129: 4.5 nV/HzInput common-mode range 10.5 VLow distortion, 1 V p-p @ 5 MHz:AD8130, -79 dBc worst harmonic @ 5 MHzAD8129, -74 dBc worst harmonic @ 5 MHzUser-adjustable gainNo external components for G = +1Power supply range +4.5 V to 12.6 VPower-down
