LP2985A-50DBVRM3

Texas Instruments LP2985A-50DBVRM3

LP875241JRNFRQ1

Texas Instruments LP875241JRNFRQ1

OPA2205ADT

Texas Instruments OPA2205ADT

OPA310SIDCKR

Texas Instruments OPA310SIDCKR

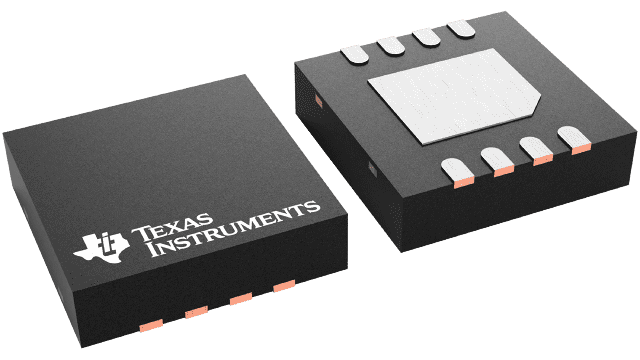

OPA817DTKR

Texas Instruments OPA817DTKR

OPT3005DTST

Texas Instruments OPT3005DTST

6PAIC3104TRHBRQ1

Texas Instruments 6PAIC3104TRHBRQ1

INA241A1QDDFRQ1

Texas Instruments INA241A1QDDFRQ1

INA241A5QDDFRQ1

Texas Instruments INA241A5QDDFRQ1

INA241B5QDDFRQ1

Texas Instruments INA241B5QDDFRQ1

Price
RoHS Y Not Compliant Y Y Y Y Y Y Y Y
Lead Status Y Y Y Y Y Y Y Y Y Y
Accuracy(%) 3
Dropout voltage (Vdo)(typ)(mV) 280
Features Enable Diagnostics,Dynamic voltage scaling,Enable,Enable pin,I2C control,Overcurrent protection,Power good,Power sequencing,Power supply and system monitoring,Spread-Spectrum Clock (SSC) Generation,Thermal shutdown,UVLO fixed EMI Hardened,Super Beta,e-Trim Shutdown,Small Size Shutdown Matrix mixing,Notch filter,Phase-locked loop (PLL),Stereo headphone amplifier Bi-directional,Bidirectional,Enhanced PWM Rejection,Low-side Capable,Ultra precise Bi-directional,Bidirectional,Enhanced PWM Rejection,Low-side Capable,Ultra precise Bi-directional,Bidirectional,Enhanced PWM Rejection,High precision,Low-side Capable
Fixed output options(V) 5
Iout(max)(A) 0.15 4
Iq(typ)(mA) 0.065 0.0067
Load capacitance(min)(F) 2.2
Maximum package height(mm) 1.45
Noise(Vrms) 30
Operating temperature range(C) -40 -40 -40 -40 -40 -40 -40 -40 -40 -40
Output options Fixed Output
PSRR at 100 KHz(dB) 40
Package area(mm^2) 8.12 18 29.4 4.2 9 2.52 25
Package size (L x W)(mm) 2.9 x 2.8 4.5 x 4 4.9 x 6 2 x 2.1 3 x 3 2.1 x 1.2 5 x 5 2.9 x 2.8 2.9 x 2.8 2.9 x 2.8
Package type SOT-23 VQFN-HR SOIC SOT-SC70 WSON SOT-5X3 VQFN SOT-23-THN SOT-23-THN SOT-23-THN
Pin count 5 26 8 6 8 8 32
Rating Catalog Automotive Catalog Catalog Catalog Catalog Automotive Automotive Automotive Automotive
Regulated outputs(#) 1 4
TI functional safety category Functional Safety-Capable Functional Safety-Capable Functional Safety-Capable
Thermal resistance JA(C/W) 206
Vin(max)(V) 16 5.5
Vin(min)(V) 2.2 2.8
Vout(max)(V) 10 3.36
Vout(min)(V) 1.8 0.6
TI.com inventory 52020 14304 1222 185237 113848 0 10032 2846 2751 2725
Approx. price(US$) .125 | 1ku 2.139 | 1ku 4.2 | 1ku .209 | 1ku 3.141 | 1ku 1.188 | 1ku 1.872 | 1ku 1.593 | 1ku 1.593 | 1ku 1.121 | 1ku
Configurability Factory programmable,Software configurable
LDO 0
Pitch(mm) 0.5
Processor name Generic
Processor supplier Generic
Product type Radar sensor Analog output Analog output Analog output
Shutdown current (ISD)(typ)(A) 1.4
Step-down DC/DC controller 0
Step-down DC/DC converter 4
Step-up DC/DC controller 0
Step-up DC/DC converter 0
Switching frequency(max)(kHz) 2200
Switching frequency(typ)(kHz) 2000
Architecture Bipolar CMOS FET / CMOS Input,Voltage FB
CMRR(typ)(dB) 140 95 110
GBW(typ)(MHz) 3.6 3 400
Input bias current(max)(pA) 400 30 20
Input common mode headroom (to negative supply)(typ)(V) 1 -0.1
Input common mode headroom (to positive supply)(typ)(V) -1.4 0.1
Iout(typ)(A) 0.025 0.15
Iq per channel(typ)(mA) 0.22 0.165 23.5
Number of channels 2 1 1 1 1 1
Offset drift(typ)(V/C) 0.04 0.5 1
Output swing headroom (to negative supply)(typ)(V) 0.2 0.001
Output swing headroom (to positive supply)(typ)(V) 0.2 -0.001
Rail-to-rail Out In,Out No
Slew rate(typ)(V/s) 4 3 1000
THD + N at 1 kHz(typ)(%) 0.0004
TI package name D DCK DTK
Total supply voltage (+5 V = 5, 5 V = 10)(max)(V) 36 5.5 12.6
Total supply voltage (+5 V = 5, 5 V = 10)(min)(V) 4.5 1.5 6
Vn at 1 kHz(typ)(nVHz) 7.2 16 7.5
Vos (offset voltage at 25C)(max)(mV) 0.025 1.3 0.25
2nd harmonic(dBc) -100
3rd harmonic(dBc) -120
Acl, min spec gain(V/V) 1
BW at Acl(MHz) 800
Frequency of harmonic distortion measurement(MHz) 1
Iout(typ)(mA) 80
Vn at flatband(typ)(nVHz) 4.5
Input type Light
Interface type I2C
ADC SNR(typ)(dB) 92
Analog inputs 6
Analog outputs 6
DAC SNR(typ)(dB) 102
Digital audio interface DSP,I2S,L,R,TDM
Number of ADC channels 2
Number of DAC channels 2
Sampling rate(max)(kHz) 96
Bandwidth(kHz) 1100 1100 1000,1100
CMRR(min)(dB) 150 150 120
Common-mode voltage(max)(V) 110 110 110
Common-mode voltage(min)(V) -5 -5 -5
Comparators(#) 0 0 0
Gain error drift ()(max)(ppm/C) 1 1 5
Gain error(%) 0.01,0.015 0.01,0.015 0.1
Input offset ()(max)(V) 10,15,20,8 10,15,20,8 150
Input offset drift ()(typ)(V/C) 0.05,0.1 0.05,0.1 0.5
Iq(max)(mA) 3.2 3.2 3.2
Slew rate(V/s) 5 5 5
Supply voltage(max)(V) 20 20 20
Supply voltage(min)(V) 2.7 2.7 2.7
Voltage gain(V/V) 10,100,20,200,50 10,100,20,200,50 10,100,20,200,50,500
