ADC12D1600CIUT/NOPB
Texas Instruments
Category: Data Converters
ADC12D1600 12-bit, dual 1.6-GSPS or single 3.2-GSPS analog-to-digital converter (ADC)
$1,502.40 - $2,624.73
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-43897-ND | 0 | 40 | $2,344.01 | $1,740.46 | $2,210.00 | $2,210.00 | $2,210.00 | $2,210.00 | Buy |
|
|
Ameya360 | ADC12D1600CIUT/NOPB | 27 | $2,624.73 | $2,624.73 | $2,624.73 | $2,624.73 | $2,624.73 | $2,624.73 | Buy | |
|
 |
Arrow North American Components | ADC12D1600CIUT/NOPB | 2 | 1 | $2,800.35 | $2,703.32 | $2,649.52 | $2,623.02 | $1,620.88 | $1,724.74 | Buy |
|
 |
AVNET Europe | ADC12D1600CIUT/NOPB | 28 | 40 | * $1,855.27 | * $1,855.27 | * $1,855.27 | * $1,855.27 | Buy | ||
|
|
AVNET Express | ADC12D1600CIUT/NOPB | 1 | $2,466.68 | $2,259.70 | $1,964.96 | $1,866.71 | $1,866.71 | $1,866.71 | Buy | |
|
|
Mouser Electronics | 595-DC12D1600CIUTNPB | 0 | 40 | $1,619.63 | $1,619.63 | $1,619.63 | $1,619.63 | Buy | ||
|
|
Newark | ADC12D1600CIUT/NOPB | 40 | $1,965.04 | $1,880.83 | $1,796.61 | $1,796.61 | $1,796.61 | $1,796.61 | Buy | |
|
|
Texas Instruments | ADC12D1600CIUT/NOPB | 1277 | 1 | $1,502.40 | $1,502.40 | $1,502.40 | $1,377.20 | $1,252.00 | $1,252.00 | Buy |
|
|
Verical Marketplace | ADC12D1600CIUT/NOPB | 2 | 1 | $2,849.64 | $2,703.32 | $2,649.52 | $2,623.02 | $1,670.95 | $1,613.33 | Buy |
|
|
Win Source | ADC12D1600CIUT/NOPB | 150 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| # Input Channels | 2,1 |
| Analog Input BW(MHz) | 2800 |
| Approx. Price (US$) | 1799.46 | 100u |
| Architecture | Folding Interpolating |
| DNL(Max)(+/-LSB) | 0.4 |
| DNL(Typ)(+/-LSB) | 0.4 |
| ENOB(Bits) | 9.4 |
| INL(Max)(+/-LSB) | 2.5 |
| INL(Typ)(+/-LSB) | 2.5 |
| Input Buffer | Yes |
| Input Range(Vp-p) | 0.8 |
| Interface | Parallel LVDS |
| Operating Temperature Range(C) | -40 to 85 |

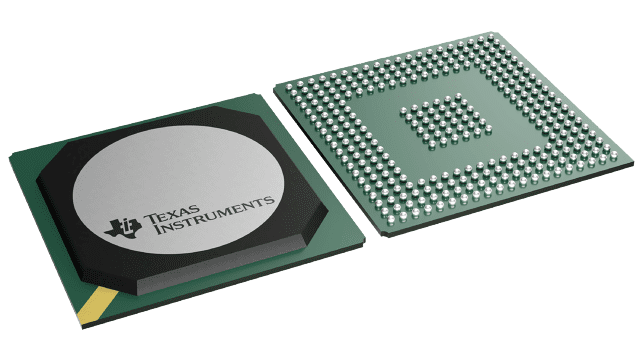

| Package Group | BGA |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 3880 |
| Rating | Catalog |
| Reference Mode | Int |
| Resolution(Bits) | 12 |
| SFDR(dB) | 70.3 |
| SINAD(dB) | 58.2 |
| SNR(dB) | 58.5 |
| Sample Rate(Max)(MSPS) | 1600,3200 |
