ADPA7004CHIP-SX
Analog Devices Inc.
Category: RF and Microwave

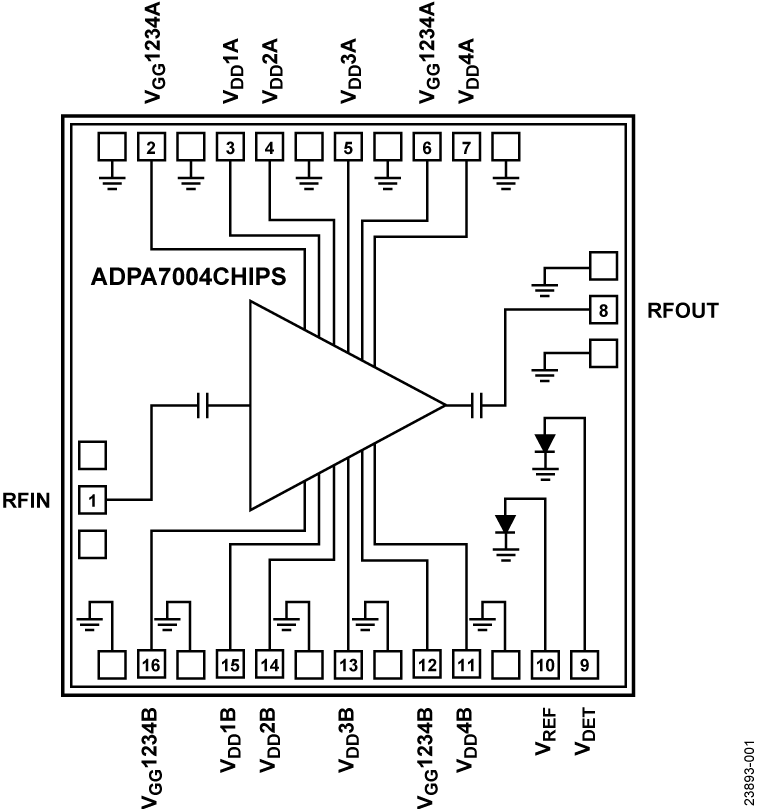

40 GHz to 80 GHz, GaAs, pHEMT, MMIC, Wideband Power Amplifier Features: Gain: 18.5 dB typical at 45 GHz to 75 GHz Input return loss: 20.0 dB typical at 45 GHz to 75 GHz Output return loss: 22.0 dB typical at 45 GHz to 75 GHz Output P1dB: 22.0 dBm typical at 45 GHz to 75 GHz PSAT: 24.0 dBm typical at 45 GHz to 75 GHz Output IP3: 31.0 dBm typical at 45 GHz to 75 GHz Supply voltage: 3.5 V at 550 mA 50 Ω matched input and output Die size: 2.940 mm × 3.320 mm × 0.05 mm
$409.28 - $474.14
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 505-ADPA7004CHIP-SX-ND | 2 | $478.35 | $400.92 | $377.68 | $377.68 | $377.68 | $377.68 | Buy | |
|
|
Analog Devices Inc | ADPA7004CHIP-SX | $409.28 | $402.57 | $402.57 | $402.57 | $402.57 | $402.57 | Buy | ||
|
|
Mouser Electronics | 584-ADPA7004CHIP-SX | 4 | 2 | $397.82 | $377.70 | $377.70 | $377.70 | $377.70 | Buy | |
|
|
Win Source | ADPA7004CHIP-SX | 1 | 1 | Buy |
Parts in family
Technical Specifications
| ROHS Compliance | Compliant |
