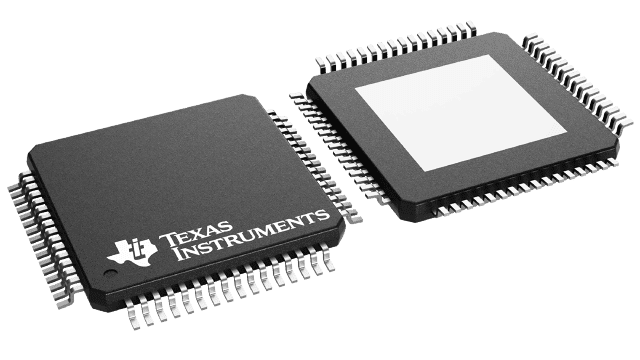

ADS1174IPAPT
Texas Instruments
Category: Data Converters
ADS1174 Quad, Simultaneous Sampling, 16-Bit Analog-to-Digital Converter
$9.92 - $18.72
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-ADS1174IPAPT-ND | 3330 | 1 | $18.72 | $14.91 | $13.96 | $12.91 | $11.96 | $11.96 | Buy |
|
 |
Arrow North American Components | ADS1174IPAPT | 132 | 1 | $9.86 | $9.70 | $9.54 | $9.38 | $7.58 | $9.05 | Buy |
|
 |
AVNET Asia Pacific | ADS1174IPAPT | 250 | $10.35 | Buy | ||||||
|
 |
AVNET Europe | ADS1174IPAPT | 1000 | 250 | * $10.45 | * $9.22 | Buy | ||||
|
|
AVNET Express | ADS1174IPAPT | 8795 | 1 | $9.81 | $9.58 | $9.21 | $9.21 | Buy | ||
|
|
element14 APAC | ADS1174IPAPT | 9 | 10 | * $13.29 | * $13.29 | * $13.29 | * $13.29 | * $13.29 | Buy | |
|
 |
Farnell | ADS1174IPAPT | 9 | 1 | * $13.96 | * $13.96 | * $13.96 | * $13.96 | * $13.96 | * $13.96 | Buy |
|
|
Mouser Electronics | 595-ADS1174IPAPT | 577 | 1 | $12.54 | $10.98 | $10.53 | $10.03 | $9.52 | $9.52 | Buy |
|
|
Newark | ADS1174IPAPT | 9 | 1 | $18.72 | $17.42 | $15.83 | $15.15 | $15.15 | $15.15 | Buy |
|
|
Perceptive | ADS1174IPAPT | 65830 | 1+ | Buy | ||||||
|
|
Texas Instruments | ADS1174IPAPT | 12501 | 1 | $12.15 | $12.15 | $12.15 | $10.61 | $7.32 | $7.32 | Buy |
|
|
Verical Marketplace | ADS1174IPAPT | 132 | 1 | $9.86 | $9.70 | $14.44 | $9.38 | $12.28 | $11.55 | Buy |
|
|
Win Source | ADS1174IPAPT | 13000 | 4 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| # Input Channels | 4 |
| Analog Voltage AVDD(Max)(V) | 5.25 |
| Analog Voltage AVDD(Min)(V) | 4.75 |
| Approx. Price (US$) | 6.30 | 1ku |
| Architecture | Delta-Sigma |
| Digital Supply(Max)(V) | 1.95 |
| Digital Supply(Min)(V) | 1.65 |
| INL(Max)(+/-LSB) | 0.0045 |
| Integrated Features | Simultaneous Sampling |
| Interface | Serial SPI |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | HTQFP |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 135 |
| Rating | Catalog |
| Reference Mode | Ext |
| Resolution(Bits) | 16 |
| SNR(dB) | 97 |
| Sample Rate (max)(SPS) | 52kSPS |
