ADS5411IPGPR
Texas Instruments
Category: Data Converters

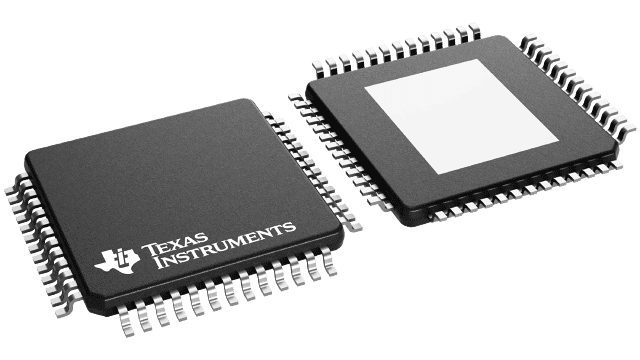

ADC Single Pipelined 105Msps 11-bit Parallel 52-Pin HTQFP EP T/R
$39.61 - $42.01
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | ADS5411IPGPR-ND | 0 | 1000 | $41.12 | $41.12 | Buy | ||||
|
 |
Arrow North American Components | ADS5411IPGPR | 0 | 1000 | $52.90 | $41.67 | Buy | ||||
|
|
AVNET Express | ADS5411IPGPR | 1000 | $39.61 | $36.78 | Buy | |||||
|
|
Mouser Electronics | 595-ADS5411IPGPR | 0 | 1000 | $40.25 | $40.25 | Buy | ||||
|
|
Win Source | ADS5411IPGPR | 1600 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| # Input Channels | 1 |
| Analog Input BW(MHz) | 750 |
| Approx. Price (US$) | 32.15 | 1ku |
| DNL(Max)(+/-LSB) | 0.25 |
| ENOB(Bits) | 10.7 |
| INL(Max)(+/-LSB) | 0.2 |
| Input Buffer | Yes |
| Input Range | 2.2V (p-p) |
| Interface | Parallel LVDS,Serial SPI Interface |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | HTQFP |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 1900 |
| Rating | Catalog |
| Reference Mode | Int |
| Resolution(Bits) | 11 |
| SFDR(dB) | 90 |
| SINAD(dB) | 66.3 |
| SNR(dB) | 66.4 |
| Sample Rate(Max)(MSPS) | 105 |
