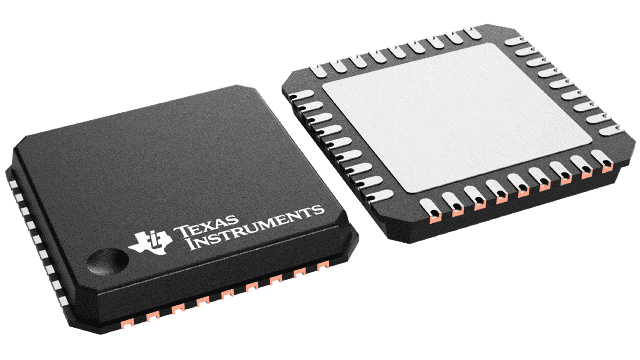

CC2511F16RSPR
Texas Instruments
Category: RF and Microwave
CC2511 - 2.4 GHz Radio Transceiver, 8051 MCU, 16KB or 32KB Flash memory and full-speed USB interface
$3.55 - $5.07
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | CC2511F16RSPRG3-ND | 0 | $3.38 | $3.38 | $4.41 | Buy | ||||
|
 |
Arrow North American Components | CC2511F16RSPR | 0 | 2500 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $5.14 | Buy |
|
 |
AVNET Europe | CC2511F16RSPR | 2500 | * $3.46 | Buy | ||||||
|
|
AVNET Express | CC2511F16RSPR | 14294 | 1 | $3.55 | $3.30 | $3.30 | Buy | |||
|
|
Mouser Electronics | 839-CC2511F16RSPR | 0 | 2500 | $3.56 | Buy | |||||
|
|
Texas Instruments | CC2511F16RSPR | 2450 | 1 | $5.07 | $5.07 | $5.07 | $4.14 | $2.76 | $2.76 | Buy |
|
|
Win Source | CC2511F16RSPR | 3700 | 15 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 2.36 | 1ku |
| Data Rate(Max)(kbps) | 500 |
| Device Type | Wireless MCU |
| Flash (KB) | 8, 16, 32 |
| Key Software Features | SimpliciTI Supported |
| Max VCC | 3.6 |
| Min VCC | 2 |
| Modulation Techniques | 2-FSK,GFSK,MSK |
| Operating Temperature Range(C) | -50 to 150 |
| RAM size(KB) | N/A |
| RX Current (Lowest)(mA) | 14.7 |
| Rating | Catalog |
| Sensitivity (Best)(dBm) | -103 |
| TX Power(Max)(dBm) | 1 |
| Technology | Proprietary 2.4 GHz |
| USB 2.0 | Yes |
