DC2061A
Analog Devices Inc.
Category: Power Management ICs

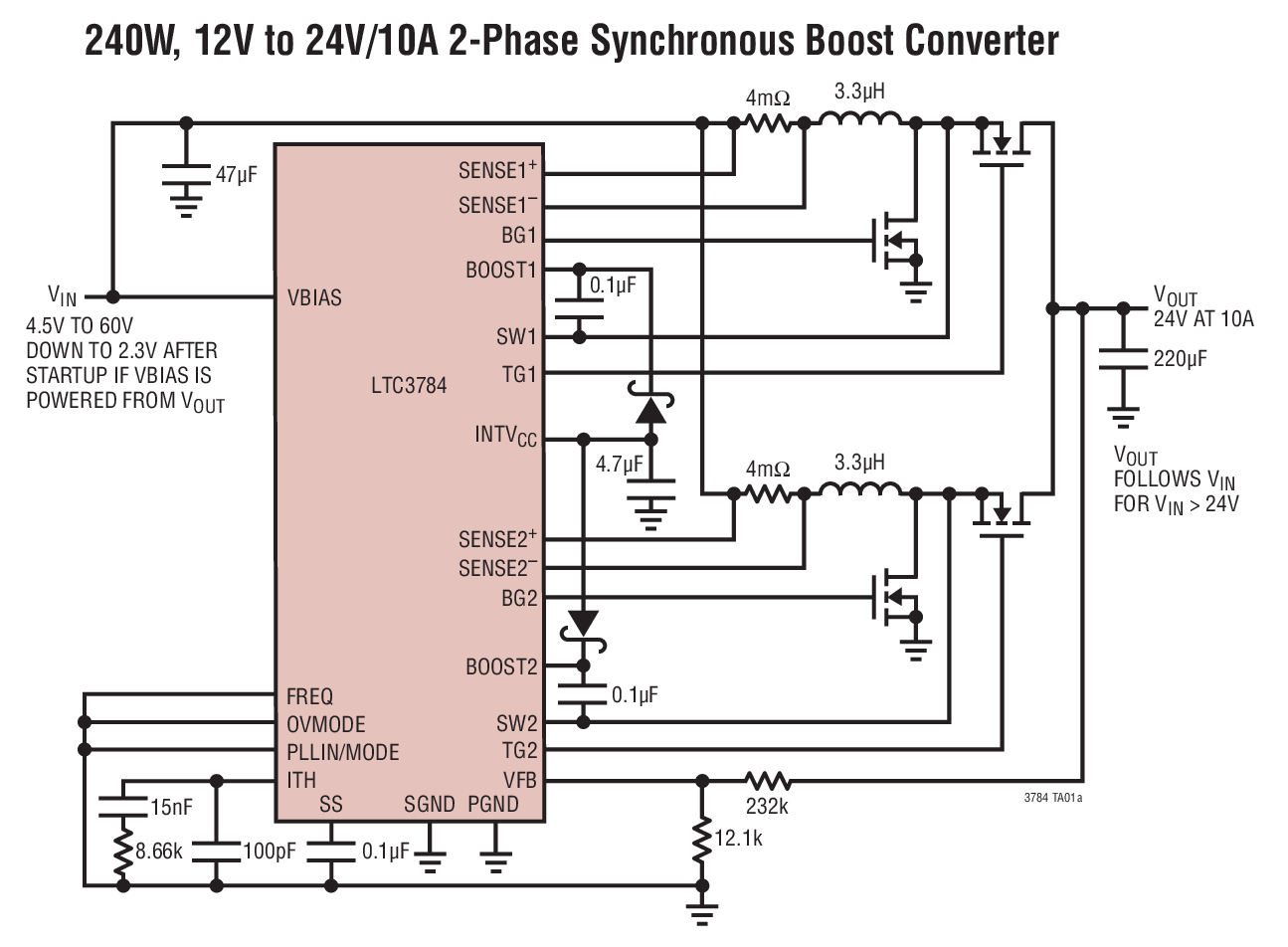

60V PolyPhase Synchronous Boost Controller with PassThru Features:PolyPhase® Operation Reduces Required Input and Output Capacitance and Power Supply Induced NoiseSynchronous Operation for Highest Efficiency and Reduced Heat DissipationWide VIN Range: 4.5V to 60V (65V Abs Max); Operates Down to 2.3V After Start-UpOutput Voltage Up to 60V±1% 1.200V Reference VoltageRSENSE or Inductor DCR Current Sensing100% Duty Cycle Capability for Synchronous MOSFETLow Quiescent Current: 28μAPhase-Lockable Frequency (75kHz to 850kHz)Programmable Fixed Frequency (50kHz to 900kHz)Power Good Output Voltage MonitorLow Shutdown Current, IQ < 4μAInternal LDO Powers Gate Drive from VBIAS or EXTVCCThermally Enhanced Low Profile 28-Pin 4mm × 5mm QFN Package and Narrow SSOP Package
* $135.60 - * $148.76
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 505-DC2061A-ND | 1 | 1 | $138.47 | $138.47 | $138.47 | $138.47 | $138.47 | $138.47 | Buy |
|
|
Analog Devices Inc | DC2061A | $117.70 | $117.70 | $117.70 | $117.70 | $117.70 | $117.70 | Buy | ||
|
 |
Arrow North American Components | DC2061A | 0 | 1 | $109.66 | $109.66 | $109.66 | $109.66 | $109.66 | $109.66 | Buy |
|
 |
element14 APAC | DC2061A | 1 | 1 | * $148.76 | * $148.76 | * $148.76 | * $148.76 | * $148.76 | * $148.76 | Buy |
|
 |
Farnell | DC2061A | 1 | 1 | * $135.60 | * $135.60 | * $135.60 | * $135.60 | * $135.60 | * $135.60 | Buy |
|
|
Mouser Electronics | 584-DC2061A | 6 | 1 | $122.42 | $122.42 | $122.42 | $122.42 | $122.42 | $122.42 | Buy |
|
|
Newark | DC2061A | 1 | 1 | $135.70 | $135.70 | $135.70 | $135.70 | $135.70 | $135.70 | Buy |
|
|
Verical Marketplace | DC2061A | 116 | 1 | $116.46 | $116.46 | $116.46 | $116.46 | $116.46 | $116.46 | Buy |
Parts in family
Technical Specifications
| ROHS Compliance | Compliant |
