DC2173A
Analog Devices Inc.
Category: Power Management ICs

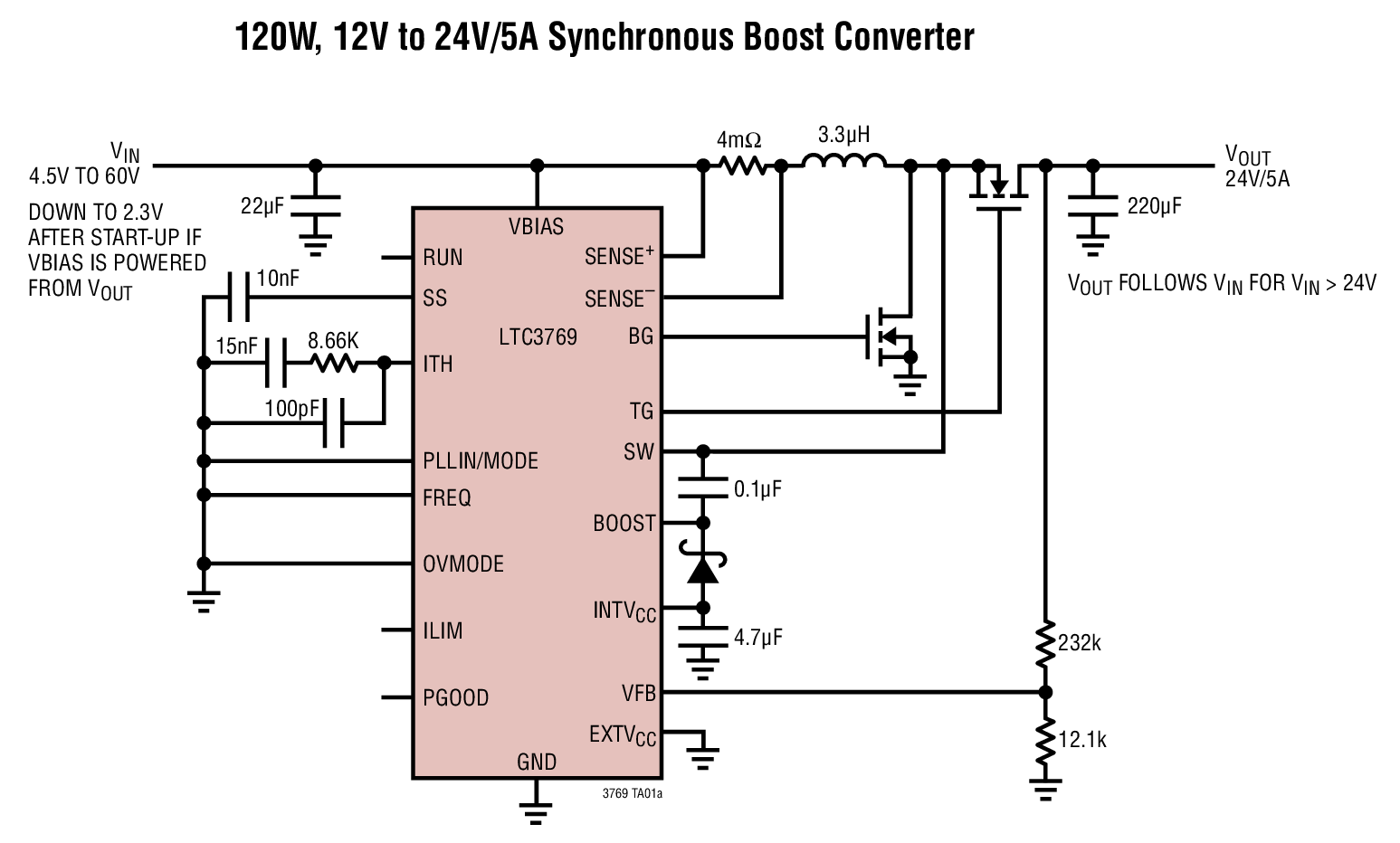

60V Low IQ Synchronous Boost Controller with PassThru Features: Synchronous Operation for Highest Efficiency and Reduced Heat Dissipation Wide VIN Range: 4.5V to 60V (65V Abs Max); Operates Down to 2.3V After Start-Up Output Voltage Up to 60V ±1% 1.200V Reference Voltage RSENSE or Inductor DCR Current Sensing 100% Duty Cycle Capability for Synchronous MOSFET Low Quiescent Current: 28μA Phase-Lockable Frequency (75kHz to 850kHz) Programmable Fixed Frequency (50kHz to 900kHz) Power Good Output Voltage Monitor Low Shutdown Current: 4μA Internal LDO Powers Gate Drive from VBIAS or EXTVCC Thermally Enhanced Low Profile 24-Pin 4mm × 4mm QFN Package and 20-Lead TSSOP Package
$116.76 - $218.73
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 505-DC2173A-ND | 6 | 1 | $158.01 | $158.01 | $158.01 | $158.01 | $158.01 | $158.01 | Buy |
|
|
Analog Devices Inc | DC2173A | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | Buy | ||
|
 |
element14 APAC | DC2173A | 2 | 1 | * $167.79 | * $167.79 | * $167.79 | * $167.79 | * $167.79 | * $167.79 | Buy |
|
 |
Farnell | DC2173A | 2 | 1 | * $152.72 | * $152.72 | * $152.72 | * $152.72 | * $152.72 | * $152.72 | Buy |
|
|
Mouser Electronics | 584-DC2173A | 3 | 1 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | Buy |
|
 |
Newark | DC2173A | 2 | 1 | $158.00 | $158.00 | $158.00 | $158.00 | $158.00 | $158.00 | Buy |
Parts in family
Technical Specifications
| ROHS Compliance | Compliant |
