DC2581A-B
Analog Devices Inc.
Category: Data Converters

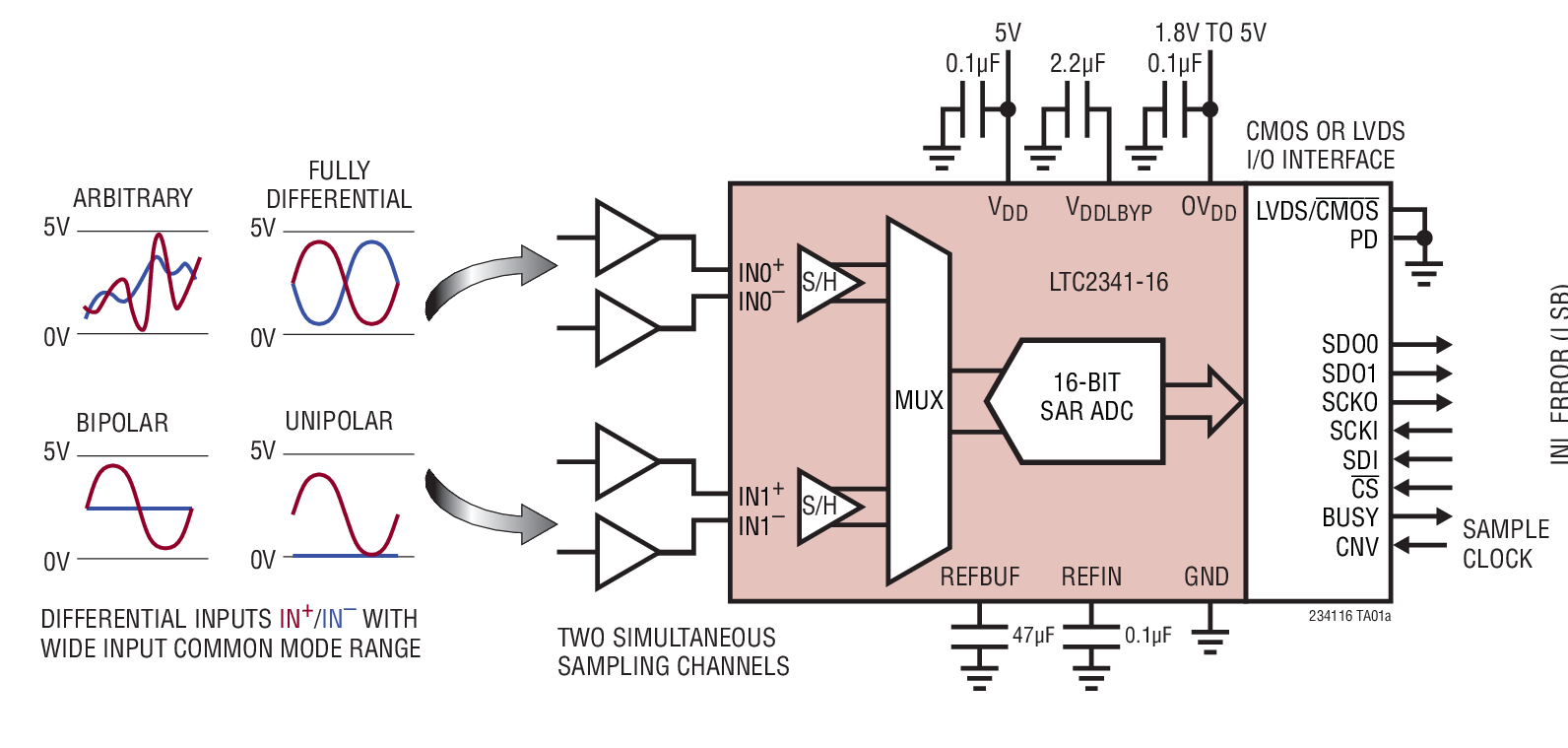

Dual, 16-Bit, 666ksps/ch Differential SoftSpan ADC with Wide Input Common Mode Range Features: 666ksps per Channel Throughput Two Simultaneous Sampling Channels ±1.25LSB INL (Maximum) Guaranteed 16-Bit, No Missing Codes Differential, Wide Common Mode Range Inputs Per-Channel SoftSpan Input Ranges: ±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V ±5V, 0V to 5V, ±2.5V, 0V to 2.5V 93.4dB Single-Conversion SNR (Typical) −114dB THD (Typical) at fIN = 2kHz 105dB CMRR (Typical) at fIN = 200Hz Rail-to-Rail Input Overdrive Tolerance Guaranteed Operation to 125°C Integrated Reference and Buffer (4.096V) SPI CMOS (1.8V to 5V) and LVDS Serial I/O Internal Conversion Clock, No Cycle Latency 74mW Power Dissipation (Typical) 32-Lead (5mm × 5mm) QFN Package
$184.58 - $191.02
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2581A-B-ND | 1 | $182.30 | $182.30 | $182.30 | $182.30 | $182.30 | $182.30 | Buy | |
|
|
Analog Devices Inc | DC2581A-B | $184.58 | $184.58 | $184.58 | $184.58 | $184.58 | $184.58 | Buy | ||
|
|
Mouser Electronics | 584-DC2581A-B | 0 | 1 | $191.02 | $191.02 | $191.02 | $191.02 | $191.02 | $191.02 | Buy |
Parts in family
Technical Specifications
| ROHS Compliance | Compliant |
