Texas Instruments

Category: Power Management ICs

12W, 12V 3-Phase Sensorless BLDC Motor Driver 16-WQFN -40 to 125

$0.97 - $2.07
Distributor SKU Stock MOQ 1 10 50 100 1000 10000 Purchase
DigiKey 296-51060-6-ND 0 3000 $0.00 $2.28 $2.15 $1.72 $1.16 $1.15 Buy
Arrow Asia DRV10974RUMR 3000 3000 $1.09 Buy
Arrow North American Components DRV10974RUMR 0 3000 $1.00 $1.00 $1.00 $1.00 $1.00 $0.95 Buy
AVNET Express DRV10974RUMR 3000 $1.16 Buy
Mouser Electronics 595-DRV10974RUMR 2654 1 $2.07 $1.86 $1.86 $1.50 $1.02 $0.91 Buy
Texas Instruments DRV10974RUMR 229424 1 $1.57 $1.57 $1.57 $1.30 $0.70 $0.70 Buy
Verical Marketplace DRV10974RUMR 5970 7 $0.00 $1.80 $1.78 $1.42 $0.94 $1.07 Buy
Win Source DRV10974RUMR 5150 Buy

Parts in family

Technical Specifications

Lead Free Status No
ROHS Compliance Compliant
Approx. price(US$) 0.95 | 1ku
Architecture Integrated FET
Control I/F 1xPWM,Analog
Control method Integrated Sinusiodal
Features Self-tuning,Rotor Lock Protection,Integrated Motor Control,Integrated FETs,Tach/FG Feedback
Operating temperature range(C) -40 to 125

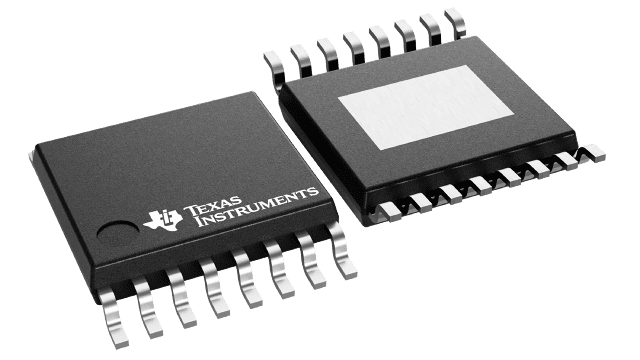

Package Group HTSSOP|16,WQFN|16
Peak output current(A) 2.5
RDS(ON) (HS + LS)(mOhms) 800
Rating Catalog
Sensor type Sensorless
Vs ABS(Max)(V) 20
Vs(Max)(V) 18
Vs(Min)(V) 4.4
