DRV8305NQPHPQ1
Texas Instruments
Category: Power Management ICs

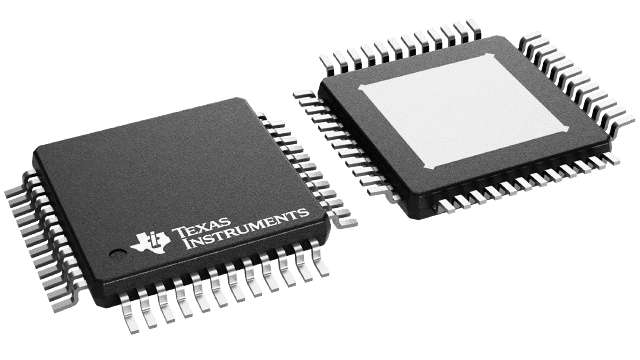

3-Phase Gate Driver 4.3V to 45V 48-Pin HTQFP T/R
$4.25 - $7.35
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-48533-ND | 0 | 1 | $7.58 | $6.85 | $6.53 | $4.64 | $4.51 | $3.36 | Buy |
|
 |
Arrow North American Components | DRV8305NQPHPQ1 | 0 | 250 | $0.00 | $0.00 | $0.00 | $0.00 | $3.61 | $4.31 | Buy |
|
 |
AVNET Asia Pacific | DRV8305NQPHPQ1 | 1000 | 250 | $4.56 | Buy | |||||
|
|
AVNET Express | DRV8305NQPHPQ1 | 4047 | 1 | $4.20 | $3.95 | $3.95 | Buy | |||
|
|
Mouser Electronics | 595-DRV8305NQPHPQ1 | 2500 | 1 | $7.18 | $6.48 | $5.37 | $5.36 | $3.92 | $3.88 | Buy |
|
|
Newark | DRV8305NQPHPQ1 | 250 | $7.35 | $7.35 | $7.35 | $6.01 | $4.81 | $4.81 | Buy | |
|
|
Texas Instruments | DRV8305NQPHPQ1 | 6354 | 1 | $5.53 | $5.53 | $5.53 | $4.51 | $3.01 | $3.01 | Buy |
|
|
Verical Marketplace | DRV8305NQPHPQ1 | 6750 | 250 | $6.50 | $6.50 | $6.50 | $6.50 | $3.65 | $0.00 | Buy |
|
|
Win Source | DRV8305NQPHPQ1 | 1670 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| # of half-bridges | 3 |
| Additional Features | SPI Management I/F |
| Approx. Price (US$) | 2.65 | 1ku |
| Control I/F | PWM |
| Current Sense Amps | 3 |
| Gate Drive(A) | 1.0 |
| Operating Temperature Range(C) | -40 to 125,-40 to 150 |
| Package Group | HTQFP |
| Package Size | mm2 |
| Rating | Automotive |
| Vs(Max)(V) | 45 |
| Vs(Min)(V) | 4.4 |
