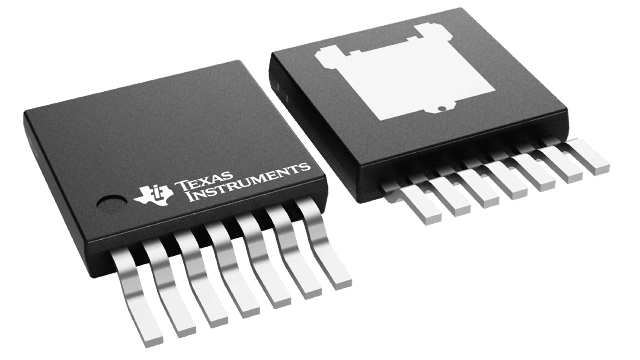

LM22670QTJE-ADJ/NOPB
Texas Instruments
Category: Power Management ICs
LM22670-Q1 3A SIMPLE SWITCHER, Step-Down Voltage Regulator with Synchronization or Adjustable Switching Freq
* $3.64 - $6.25
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-LM22670QTJE-ADJ/NOPBCT-ND | 135 | 1 | $7.32 | $5.66 | $5.24 | $4.78 | $4.36 | $4.25 | Buy |
|
 |
Arrow Asia | LM22670QTJE-ADJ/NOPB | 750 | 250 | $4.26 | $4.06 | Buy | ||||
|
 |
Arrow North American Components | LM22670QTJE-ADJ/NOPB | 0 | 250 | $2.36 | $2.36 | $2.36 | $2.36 | $5.04 | $4.85 | Buy |
|
 |
AVNET Europe | LM22670QTJE-ADJ/NOPB | 250 | * $3.22 | * $2.84 | Buy | |||||
|
|
AVNET Express | LM22670QTJE-ADJ/NOPB | 2468 | 114 | $4.02 | $4.02 | $3.88 | $3.69 | $3.33 | $3.33 | Buy |
|
|
Mouser Electronics | 926-L22670QTJEADJNPB | 233 | 1 | $5.92 | $4.20 | $4.20 | $3.82 | $3.37 | $3.33 | Buy |
|
|
Texas Instruments | LM22670QTJE-ADJ/NOPB | 51 | 1 | $4.55 | $4.55 | $4.55 | $3.71 | $2.47 | $2.47 | Buy |
|
|
Verical Marketplace | LM22670QTJE-ADJ/NOPB | 1250 | 250 | $2.51 | $2.48 | Buy | ||||
|
|
Win Source | LM22670QTJE-ADJ/NOPB | 4540 | 4 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 1.95 | 1ku |
| Control Mode | Voltage Mode |
| Duty Cycle(Max)(%) | 90 |
| Iout(Max)(A) | 3 |
| Iq(Typ)(mA) | 3.4 |
| Operating Temperature Range(C) | -40 to 125 |
| Package Group | SO PowerPAD,TO-263 |
| Rating | Automotive |
| Regulated Outputs(#) | 1 |
| Special Features | Enable |
| Switching Frequency(Max)(kHz) | 1000 |
| Switching Frequency(Min)(kHz) | 200 |
| Type | Converter |
| Vin(Max)(V) | 42 |
| Vin(Min)(V) | 4.5 |
| Vout(Max)(V) | 37 |
| Vout(Min)(V) | 1.285 |
