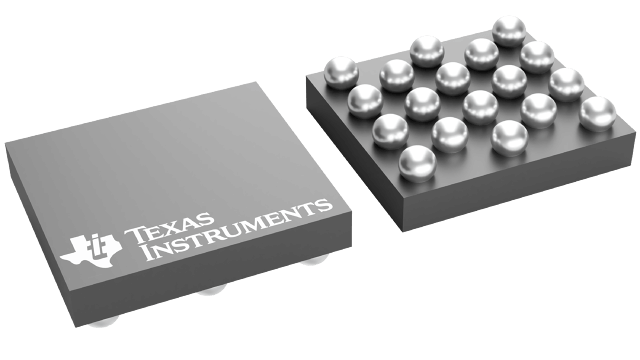

LM2796TL/NOPB
Texas Instruments
Category: Drivers and Interfaces
LED DRVR 7Segment 3.3V/5V 18-Pin uSMD T/R
$1.33 - $2.43
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | LM2796TL/NOPBDKR-ND | 0 | 500 | $0.00 | $0.00 | $0.00 | $0.00 | $1.45 | $1.45 | Buy |
|
 |
Arrow North American Components | LM2796TL/NOPB | 0 | 250 | $1.37 | $1.25 | Buy | ||||
|
 |
AVNET Asia Pacific | LM2796TL/NOPB | 250 | $1.54 | Buy | ||||||
|
 |
AVNET Europe | LM2796TL/NOPB | 1 | * $1.63 | * $1.53 | * $1.36 | * $1.29 | * $1.29 | * $1.29 | Buy | |
|
|
AVNET Express | LM2796TL/NOPB | 250 | $1.32 | $1.24 | Buy | |||||
|
|
Mouser Electronics | 926-LM2796TL/NOPB | 0 | 1 | $2.43 | $2.19 | $2.07 | $1.77 | $1.20 | $1.20 | Buy |
|
|
Texas Instruments | LM2796TL/NOPB | 7700 | 1 | $1.58 | $1.58 | $1.58 | $1.38 | $0.78 | $0.78 | Buy |
|
|
Verical Marketplace | LM2796TL/NOPB | 4250 | 250 | $1.62 | $1.62 | Buy | ||||
|
|
Win Source | LM2796TL/NOPB | 8600 | 5 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 0.95 | 1ku |
| Channels(#) | 7 |
| Duty Cycle(Max)(%) | 100 |
| LED Current Per Channel(mA) | 20 |
| LED(#) | 7 |
| Operating Temperature Range(C) | -30 to 85 |
| Package Group | DSBGA |
| Package Size | mm2 |
| Peak Efficiency(%) | 80 |
| Rating | Catalog |
| Shutdown Current(Typ)(uA) | 4.5 |
| Special Features | Direct PWM Dimming |
| Switching Frequency(Max)(kHz) | 675 |
| Topology | Boost |
| Type | Capacitive |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 2.7 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | 2.7 |
