LM76002RNPT

Texas Instruments
Category: Power Management ICs

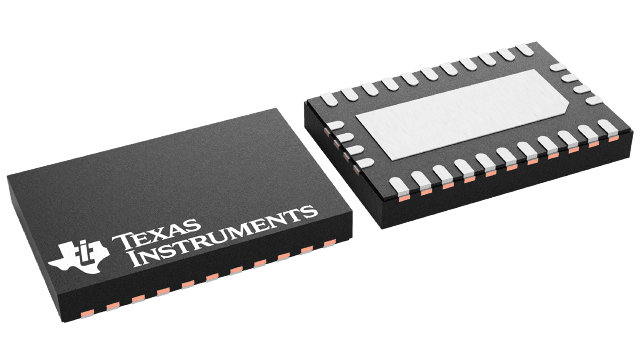

LM76002 Synchronous Step-Down DC-DC Voltage Regulator Single Output 2.5A 3.5V to 60V 30-Pin WQFN T/R
$2.42 - * $6.49Distributors
Currency:
Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
DigiKey | 296-47535-6-ND | 3460 | $4.85 | $3.69 | $3.40 | $3.08 | $3.17 | $2.07 | Buy | ||
![]() |
Arrow North American Components | LM76002RNPT | 0 | 250 | $6.49 | $6.49 | $6.49 | $6.49 | $2.38 | $0.00 | Buy | |
![]() |
AVNET Asia Pacific | LM76002RNPT | 250 | Buy | ||||||||
![]() |
AVNET Europe | LM76002RNPT | 250 | * $2.71 | * $2.39 | Buy | ||||||
![]() |
AVNET Express | LM76002RNPT | 250 | 250 | $2.33 | $2.24 | Buy | |||||
![]() |
element14 APAC | LM76002RNPT | 194 | 1 | * $6.49 | * $5.83 | * $5.52 | * $4.92 | * $4.92 | * $4.92 | Buy | |
![]() |
Farnell | LM76002RNPT | 113 | 1 | * $6.83 | * $6.14 | * $5.42 | * $5.02 | * $5.02 | * $5.02 | Buy | |
![]() |
Mouser Electronics | 595-LM76002RNPT | 2057 | 1 | $4.83 | $3.39 | $3.39 | $3.07 | $2.63 | $2.61 | Buy | |
![]() |
Newark | LM76002RNPT | 288 | 1 | $5.78 | $5.53 | $5.03 | $4.81 | $4.81 | $4.81 | Buy | |
![]() |
Texas Instruments | LM76002RNPT | 30925 | 1 | $3.64 | $3.64 | $3.64 | $2.97 | $1.98 | $1.98 | Buy | |
![]() |
Verical Marketplace | LM76002RNPT | 10000 | 250 | $4.30 | $4.26 | $4.26 | $4.26 | $3.53 | $3.16 | Buy | |
![]() |
Win Source | LM76002RNPT | 109310 | 18 | Buy | |||||||
Parts in family
Technical Specifications
Lead Free Status | No |
ROHS Compliance | Compliant |
Approx. Price (US$) | 2.50 | 1ku |
Control Mode | Current Mode |
Features | Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Synchronous Rectification |
Iout(Max)(A) | 2.5 |
Iq(Typ)(mA) | 0.015 |
Operating Temperature Range(C) | -40 to 125 |
Package Group | WQFN |
Rating | Catalog |
Regulated Outputs(#) | 1 |
Switching Frequency(Max)(kHz) | 2200 |
Switching Frequency(Min)(kHz) | 300 |
Switching Frequency(Typ)(kHz) | 500 |
Type | Converter |
Vin(Max)(V) | 60 |
Vin(Min)(V) | 3.5 |
Vout(Max)(V) | 57 |
Vout(Min)(V) | 1 |
