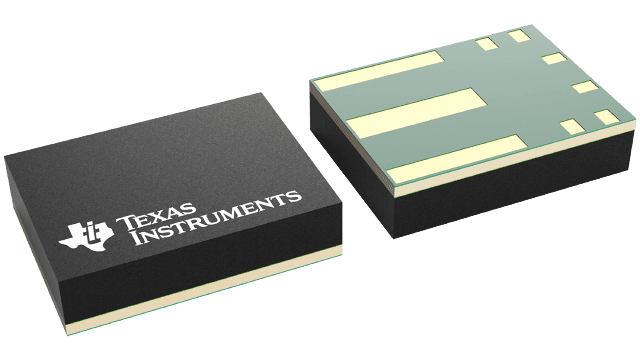

LMG5200MOFT
Texas Instruments
Category: Drivers and Interfaces
MOS Power Transistors HV (>= 200V)
$9.21 - $249.00
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-45474-6-ND | 0 | 1 | $15.28 | $14.04 | $13.46 | $11.86 | $9.21 | $7.89 | Buy |
|
|
Ameya360 | LMG5200MOFT | 1 | Buy | |||||||
|
 |
Arrow North American Components | LMG5200MOFT | 0 | 250 | $8.10 | $8.10 | $8.10 | $8.10 | $8.24 | $13.15 | Buy |
|
 |
AVNET Europe | LMG5200MOFT | 1000 | 250 | * $9.91 | * $8.74 | Buy | ||||
|
|
AVNET Express | LMG5200MOFT | 250 | $8.90 | $8.55 | Buy | |||||
|
 |
element14 APAC | LMG5200MOFT | 196 | 1 | * $17.02 | * $15.65 | * $15.00 | * $14.71 | * $14.71 | * $14.71 | Buy |
|
 |
Farnell | LMG5200MOFT | 200 | 1 | * $15.99 | * $14.69 | * $13.26 | * $12.41 | * $12.41 | * $12.41 | Buy |
|
|
Mouser Electronics | 595-LMG5200MOFT | 990 | 1 | $14.79 | $13.58 | $13.02 | $11.47 | $9.84 | $9.47 | Buy |
|
|
Newark | LMG5200EVM-02 | 1 | $206.03 | $206.03 | $206.03 | $206.03 | $206.03 | $206.03 | Buy | |
|
|
Texas Instruments | LMG5200EVM-02 | 61 | 1 | $199.00 | $199.00 | $199.00 | $199.00 | $199.00 | $199.00 | Buy |
|
|
Verical Marketplace | LMG5200MOFT | 2250 | 250 | $10.20 | $10.20 | $10.20 | $10.20 | $8.66 | $8.54 | Buy |
|
|
Win Source | LMG5200MOFT | 4193 | 3 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 9.50 | 1ku |
| Configuration | Half Bridge Power Stage |
| Control Method | External |
| Coss(pF) | 266 |
| ID(Max)(A) | 10 |
| Logic Level | 3V to 5V CMOS and TTL |
| Package Group | QFM |
| Prop Delay Matching(ns) | 2 |
| Prop Delay(ns) | 29.5 |
| PulseWidth Min(ns) | 10 |
| RDS (on)(Milliohm) | 15 |
| Rating | Catalog |
| VCC(V) | 5 |
| VDS(Max)(V) | 80 |
| VDS(V) | 80 |
