LMZM33606RLXR
Texas Instruments
Category: Power Management ICs

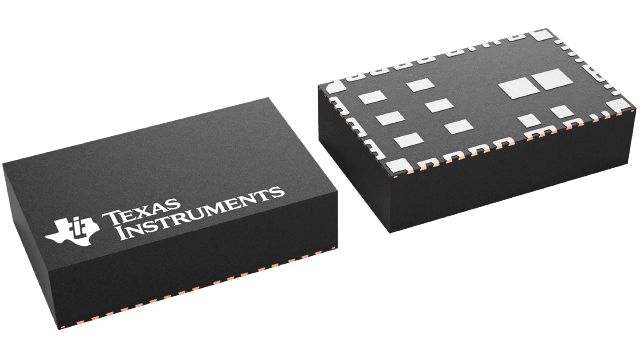

3.5V to 36V Input, 1V to 20V Output, 6A Power Module in 10x16x4mm QFN Package with Frequency Sync 41-B2QFN -40 to 105
$6.85 - $14.84
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-52221-1-ND | 481 | 1 | $17.04 | $13.53 | $12.65 | $11.69 | $10.95 | $10.95 | Buy |
|
 |
Arrow Asia | LMZM33606RLXR | 500 | 500 | $6.12 | $6.12 | Buy | ||||
|
 |
Arrow North American Components | LMZM33606RLXR | 85 | 1 | $11.79 | $11.40 | $11.01 | $8.03 | $11.01 | $6.77 | Buy |
|
 |
AVNET Europe | LMZM33606RLXR | 500 | * $8.40 | * $7.06 | Buy | |||||
|
|
AVNET Express | LMZM33606RLXR | 500 | 500 | $6.78 | $6.36 | Buy | ||||
|
|
Mouser Electronics | 595-LMZM33606RLXR | 1324 | 1 | $14.84 | $12.09 | $11.35 | $10.34 | $9.72 | $9.63 | Buy |
|
|
Texas Instruments | LMZM33606RLXR | 432 | 1 | $11.95 | $11.95 | $11.95 | $10.44 | $7.20 | $7.20 | Buy |
|
|
Verical Marketplace | LMZM33606RLXR | 85 | 1 | $11.79 | $11.40 | $15.99 | $8.03 | $11.01 | $12.54 | Buy |
|
|
Win Source | LMZM33606RLXR | 6566 | 2 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Not Compliant |
| Approx. Price (US$) | 8.30 | 1ku |
| Duty Cycle(Max)(%) | 90 |
| Features | EMI Tested,Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Tracking |
| Iout(Max)(A) | 6 |
| Iq(Typ)(mA) | 0.021 |
| Operating Temperature Range(C) | -40 to 105 |
| Package Size | mm2 |
| Package Type | QFN |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Soft Start | Adjustable |
| Switching Frequency(Max)(kHz) | 2200 |
| Switching Frequency(Min)(kHz) | 350 |
| Switching Frequency(Typ)(kHz) | 500 |
| Type | Module |
| Vin(Max)(V) | 36 |
| Vin(Min)(V) | 3.5 |
| Vout(Max)(V) | 20 |
| Vout(Min)(V) | 1 |
