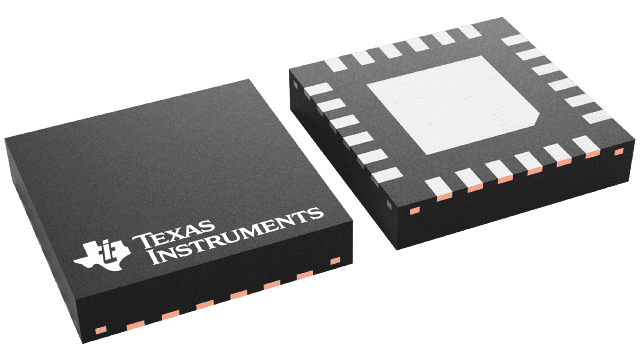

LP3943ISQX/NOPB
Texas Instruments
Category: Drivers and Interfaces
LED DRVR 16Segment 2.5V/3.3V/5V 24-Pin LLP EP T/R
$1.03 - $23.22
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-LP3943ISQX/NOPBCT-ND | 0 | 1 | $2.19 | $2.19 | $2.19 | $2.19 | $2.19 | $1.27 | Buy |
|
 |
Arrow Asia | LP3943ISQX/NOPB | 4500 | 4500 | $1.39 | Buy | |||||
|
 |
Arrow North American Components | LP3943ISQX/NOPB | 0 | 4500 | $0.00 | Buy | |||||
|
 |
AVNET Asia Pacific | LP3943ISQX/NOPB | 4500 | 4500 | $1.07 | Buy | |||||
|
 |
AVNET Europe | LP3943ISQX/NOPB | 4500 | * $1.26 | Buy | ||||||
|
|
AVNET Express | LP3943ISQX/NOPB | 4500 | $1.02 | Buy | ||||||
|
|
Mouser Electronics | 926-LP3943ISQX/NOPB | 0 | 4500 | $1.05 | Buy | |||||
|
|
Texas Instruments | LP3943ISQX/NOPB | 11000 | 1 | $1.82 | $1.82 | $1.82 | $1.50 | $0.81 | $0.81 | Buy |
|
|
Win Source | LP3943ISQX/NOPB | 35000 | 5 | $18.78 | $16.00 | $16.00 | $16.00 | $16.00 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 0.84 | 1ku |
| Channels(#) | 16 |
| Iout(Max)(A) | 0.2 |
| Iq(Typ)(mA) | 0.35 |
| LED Configuration | Parallel |
| LED Current Per Channel(mA) | 25 |
| LED(#) | 16 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | WQFN |
| Package Size | mm2 |
| Peak Efficiency(%) | 100 |
| Program Memory | No |
| Programmable Ramp Control | No |
| Rating | Catalog |
| Shutdown Current(Typ)(uA) | 2 |
| Special Features | I2C Control |
| Topology | Linear |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 2.3 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | -0.5 |
