Analog Devices Inc.

Category: Power Management ICs

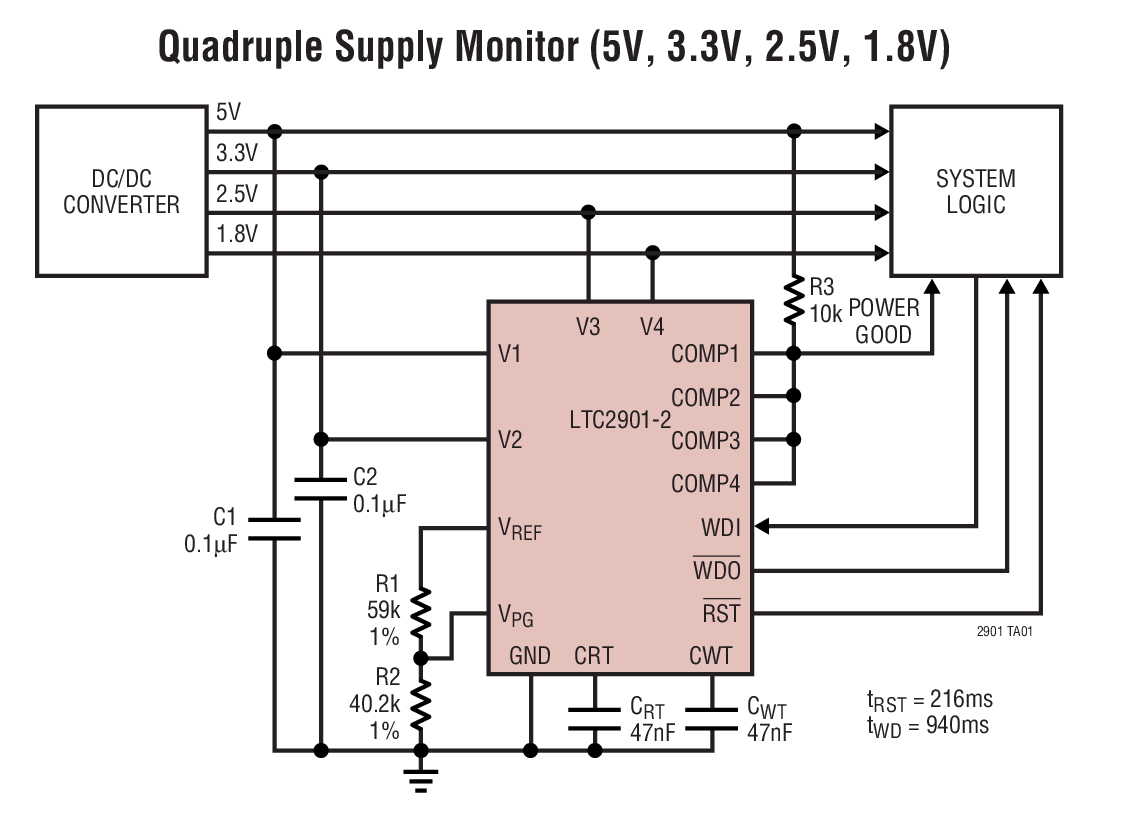

Programmable Quad Supply Monitor with Adjustable Reset and Watchdog Timers Features: Simultaneously Monitors Four Supplies 16 User Selectable Combinations of 5V, 3.3V, 3V, 2.5V, 1.8V, 1.5V and/or ±Adj Voltage Thresholds Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage Over Temperature Selectable Supply Tolerance: 5% and 10% Below Monitored Voltage (LTC2901-3/LTC2901-4) Low Supply Current: 43µA Typ Adjustable Reset Time Adjustable Watchdog Time Open-Drain RST Output (LTC2901-1/LTC2901-3) Push-Pull RST Output (LTC2901-2/LTC2901-4) Individual Nondelayed Monitor Output for Each Supply Power Supply Glitch Immunity Guaranteed RST for VCC ≥ 1V 16-Lead Narrow SSOP Package

$8.20 - $8.34
