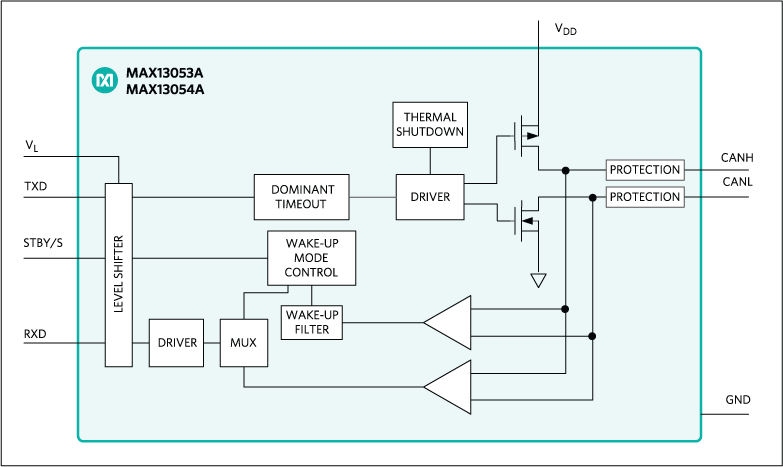

The MAX13053A and MAX13054A are +5V CAN (Control Area Network) transceivers with integrated protection for industrial applications. These devices have extended ±65V fault protection for equipment where overvoltage protection is required. It also incorporates high ±25kV ESD HBM and an input common mode range (CMR) of ±25V, exceeding the ISO11898 specification of -2V to +7V. This makes these parts well suited for applications that are in electrically noisy environments, where the ground planes are shifting relative to each other. This family features a variety of options to address common CAN application requirements; logic-level supply input VL for interfacing with 1.62V to 5.5V logic, low-current standby mode, silent-mode to disable the transmitter, and a slow slew rate to minimize EMI.These devices operate at a high-speed CAN data rate, allowing up to 2Mbps on small networks. Maximum speed on large networks may be limited by the number of nodes in a network, type of cabling, stub length, and other factors. These transceivers include a dominant timeout to prevent bus lockup caused by controller error or by a fault on the TXD input. When TXD remains in the dominant state (low) for longer than TDOM, the driver is switched to the recessive state, releasing the bus. The MAX13053Afeatures a S pin where it enables and disables the transmitter for applications where you need thetransceiver to receive only. The MAX13054A features a STBY pin for 3 modes of operation; standby mode for low current consumption, normal high speed mode, or a slow slew rate mode when an external 26.1kΩ is connected between ground and STBY pin.The MAX13053A and MAX13054A are available in a standard 8-pin SOIC package, and operate over the -40°C to +125°C temperature range.Design Solution: Lifting the City’s Workers with CANbus ›Design Solution: Ruggedize Your Production Floor with a CAN Bus Interface ›Using the MAX13054AESHLD Evaluation Kit CAN vs. RS-485: What's the Difference?Using the MAX13054A CAN Transceiver with High Protection and Multi-Function Standby  -->ApplicationsBuilding AutomationDroneIndustrial AutomationInstrumentationMotor ControlProgrammable Logic ControllerSmart Grid Equipment
