MAX1488ECPD+
Analog Devices Inc.
Category: Drivers and Interfaces

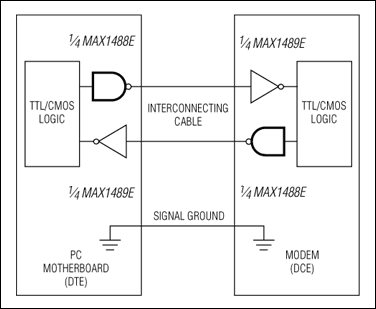

The MAX1488E quad, low-power line driver is designed for EIA/TIA-232, EIA/TIA-562, and CCITT V.28 communications in harsh environments. Each transmitter output is protected against ±15kV electrostatic discharge (ESD) shocks. The inputs are TTL and CMOS compatible with minimal loading. The outputs feature internally controlled slew-rate limiting and current limiting. This device has a guaranteed 120kbps data rate. Power-supply current is less than 180µA over a ±4.5V to ±13.2V supply voltage range.The MAX1488E is pin compatible with the MC1488, MC14C88, SN75188, SN75C188, DS1488, and DS14C88. It is available in 14-pin plastic DIP and SO packages.ApplicationsEquipment Meeting IEC 1000-4-2 (Formerly IEC 801-2) or ±15kV ESD ProtectionInterfacing Data Terminal Equipment (DTE) with Data Circuit-Terminating Equipment (DCE)ModemsPC Motherboards
$2.13 - * $5.80
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX1488ECPD+ | $2.13 | $2.13 | Buy | ||||||
|
 |
element14 APAC | MAX1488ECPD+ | 24 | 1 | * $5.80 | * $4.44 | * $4.08 | * $3.62 | * $3.48 | * $3.48 | Buy |
|
 |
Farnell | MAX1488ECPD+ | 69 | 1 | * $5.76 | * $4.41 | * $4.04 | * $3.59 | * $3.46 | * $3.46 | Buy |
|
|
Mouser Electronics | 700-MAX1488ECPD | 0 | 1 | $6.71 | $4.45 | $3.85 | $3.25 | $2.77 | $2.77 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
