MAX1703ESE+

Analog Devices Inc.

Category: Power Management ICs

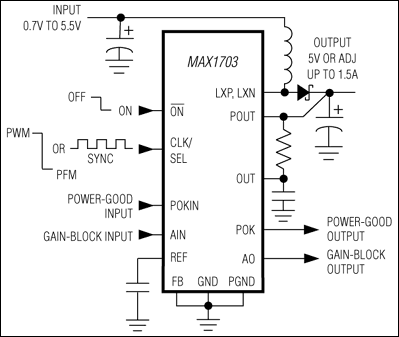

The MAX1703 is a high-efficiency, low-noise, step-up DC-DC converter intended for use in battery-powered wireless applications. It uses a synchronous-rectified pulse-width-modulation (PWM) boost topology to generate a 2.5V to 5.5V output from battery inputs, such as one to three NiCd/NiMH cells or one Li-Ion cell. The device includes a 2A, 75mΩ, N-channel MOSFET switch and a 140mΩ, P-channel synchronous rectifier.With its internal synchronous rectifier, the MAX1703 delivers up to 5% better efficiency than similar nonsynchronous converters. It also features a pulse-frequency-modulation (PFM) low-power mode to improve efficiency at light loads, and a 1µA shutdown mode.The MAX1703 comes in a 16-pin narrow SO package and includes an uncommitted comparator that generates a power-good or low-battery-warning output. It also contains a linear gain block that can be used to build a linear regulator.For lower-power outputs and a smaller package, refer to the MAX1700/MAX1701. For dual outputs (step-up plus linear regulator), refer to the MAX1705/MAX1706. For an on-board analog-to-digital converter, refer to the MAX848/MAX849.The MAX1703 evaluation kit is available to speed designs.ApplicationsDigital Cordless PhonesHandheld Instruments (PDAs, Palmtops)Palmtop ComputersPCS PhonesPersonal CommunicatorsTwo-Way PagingWireless Handsets

$5.71 - $20.55
Distributor SKU Stock MOQ 1 10 50 100 1000 10000 Purchase
Analog Devices Inc MAX1703ESE+ $5.71 $5.71 Buy
element14 APAC MAX1703ESE+ 43 1 * $16.11 * $12.40 * $10.60 * $10.09 * $9.56 * $9.56 Buy
Farnell MAX1703ESE+ 43 1 * $15.60 * $11.26 * $9.62 * $9.40 * $9.17 * $9.17 Buy
