MAX17545EVKITA#
Analog Devices Inc.
Category: Power Management ICs

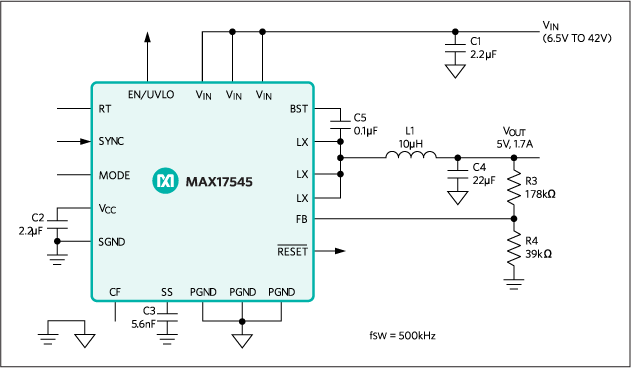

The MAX17545 high-efficiency, high-voltage, synchronousstep-down DC-DC converter with integrated MOSFETsoperates over 4.5V to 42V input. The converter can deliverup to 1.7A and generates output voltages from 0.9V up to0.9 x VIN. The feedback (FB) voltage is accurate to within±1.1% over -40°C to +125°C.The MAX17545 uses peak-current-mode control. Thedevice can be operated in pulse-width modulation (PWM),pulse-frequency modulation (PFM), or discontinuousconduction mode (DCM) control schemes.The device is available in a 20-pin (4mm × 4mm) TQFNpackage. Simulation models are available.ApplicationsBase Station Power SupplyDistributed Supply RegulationGeneral-Purpose Point-of-LoadHigh-Voltage Single-Board SystemsIndustrial Power Supplies
* $76.49 - * $91.16
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX17545EVKITA# | 2 | 1 | * $91.16 | * $91.16 | * $91.16 | * $91.16 | * $91.16 | * $91.16 | Buy |
|
 |
Farnell | MAX17545EVKITA# | 3 | 1 | * $76.49 | * $76.49 | * $76.49 | * $76.49 | * $76.49 | * $76.49 | Buy |
|
 |
Mouser Electronics | 700-MAX17545EVKITA# | 1 | 1 | $84.74 | $84.74 | $84.74 | $84.74 | $84.74 | $84.74 | Buy |
Technical Specifications
| ROHS Compliance | Not Compliant |
