MAX20323FENC+
Analog Devices Inc.
Category: Power Management ICs

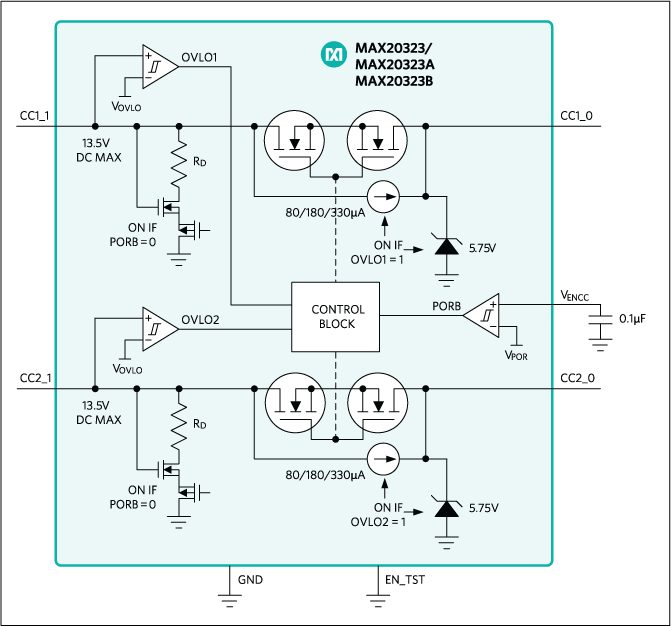

The MAX20323, MAX20323A, MAX20323B, MAX20323C, MAX20323D, MAX20323E, MAX20323F overvoltage protectors feature internal overvoltage threshold and surge protection to turn off the switches and prevent damage to USB type-C CC/SBU pins.The devices have two channels switches with 0.27Ω (typ) on-resistance that are turned on when inputs are below overvoltage threshold. When overvoltage threshold is exceeded on one of the channels, the corresponding switch is turned off and replaced by an accurate pullup current to output (CC1_O/CC2_O) that is sourced from input (CC1_I/CC2_I). (The MAX20323A/C/F does not have pullup current feature).The devices are available in a 12-bump (0.4mm pitch, 1.7mm x 1.32mm) WLP package and operate over the -40°C to +85°C extended temperature range.ApplicationsIndustrial PCsPhabletsSmart PhonesTablets
$1.82 - * $3.10
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX20323FENC+ | 20 | 1 | * $3.10 | * $1.96 | * $1.92 | * $1.88 | * $1.84 | * $1.84 | Buy |
|
 |
Farnell | MAX20323FENC+ | 20 | 1 | * $3.04 | * $1.91 | * $1.87 | * $1.83 | * $1.80 | * $1.80 | Buy |
|
 |
Mouser Electronics | 700-MAX20323FENC+ | 0 | 1 | $1.82 | $1.54 | $1.54 | $1.47 | $1.36 | $1.34 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
