MAX3161CAG+
Analog Devices Inc.
Category: Drivers and Interfaces

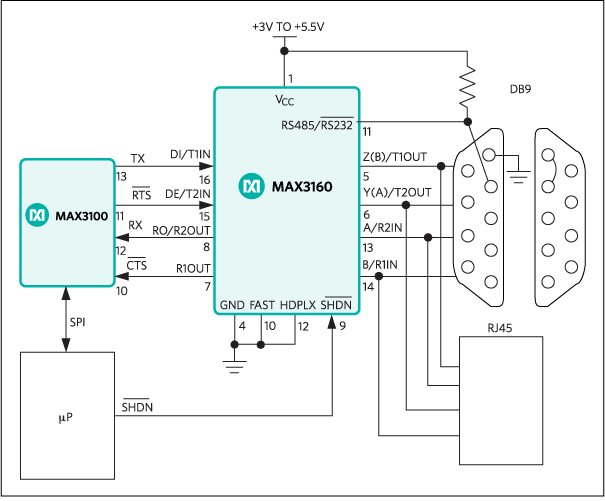

The MAX3160/MAX3161/MAX3162 are programmable RS-232/RS-485/422 multiprotocol transceivers. The MAX3160/MAX3161 are pin programmable as a 2TX/2RX RS-232 interface or a single RS-485/422 transceiver. The MAX3162 is configured as a 2TX/2RX RS-232 interface and a single RS-485/422 transceiver simultaneously.All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232 and RS-485/422 compliant performance from a +3V to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for both RS-232 and RS-485/422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting allows these devices to transmit at data rates up to 10Mbps in RS-485/422 mode and up to 1Mbps in RS-232 mode. The MAX3160/MAX3162 offer a flow-through pinout that facilitates board layout. The MAX3160/MAX3161/MAX3162 are available in tiny SSOP packages and operate from -40°C to +85°C.ApplicationsIndustrial ControlsNetworkingPeripheralsPoint-of-Sale EquipmentRS-232 to RS-485 Interface Converters
* $19.52 - * $19.61
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX3161CAG+ | 20 | 1 | * $19.61 | * $15.67 | * $15.67 | * $13.97 | * $13.38 | * $13.38 | Buy |
|
 |
Farnell | MAX3161CAG+ | 20 | 1 | * $19.52 | * $15.60 | * $15.60 | * $13.91 | * $13.32 | * $13.32 | Buy |
|
 |
Mouser Electronics | 700-MAX3161CAG | 44 | 1 | $21.38 | $15.25 | $12.76 | $12.76 | $12.76 | $12.76 | Buy |
|
 |
Newark | MAX3161CAG+ | 3 | 1 | $19.30 | $19.30 | $17.05 | $16.15 | $16.15 | $16.15 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
