MAX4053ACEE+
Analog Devices Inc.
Category: Switches and Multiplexers

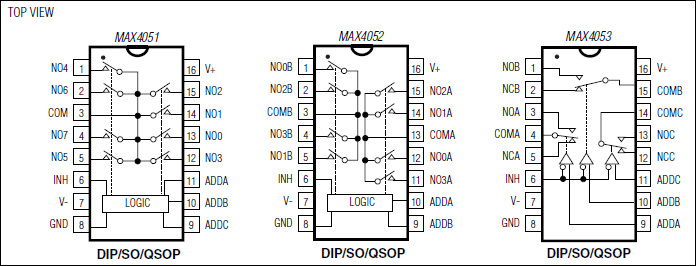

The MAX4051/MAX4052/MAX4053 and MAX4051A/MAX4052A/MAX4053A are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4051/A), two 4-channel multiplexers (MAX4052/A), and three single-pole/double-throw (SPDT) switches (MAX4053/A). The A-suffix parts are fully characterized for on-resistance match, on-resistance flatness, and low leakage.These CMOS devices can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.7V and +16V. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 0.1nA at +25°C or 5nA at +85°C (MAX4051A/MAX4052A/MAX4053A).All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition Systems
$0.00 - $9.58
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX4053ACEE+ | 60 | 1 | * $7.43 | * $6.68 | * $6.32 | * $5.48 | * $5.19 | * $5.19 | Buy |
|
 |
Farnell | MAX4053ACEE+ | 60 | 200 | * $4.12 | * $4.12 | Buy | ||||
|
 |
Mouser Electronics | 700-MAX4053ACEE | 1232 | 1 | $6.53 | $5.62 | $5.62 | $4.87 | $3.50 | $3.32 | Buy |
|
 |
Newark | MAX4053ACEE+ | 100 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
