Analog Devices Inc.

Category: Switches and Multiplexers

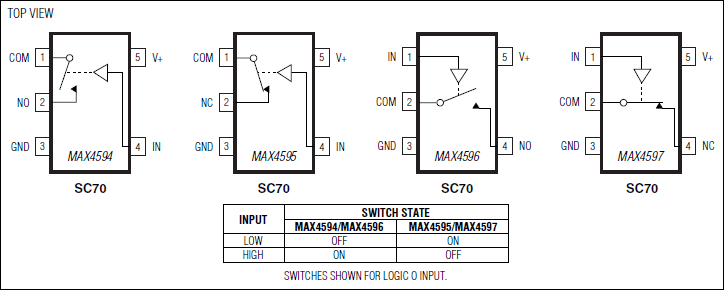

The MAX4594–MAX4597 single-pole/single-throw(SPST) analog switches operate from a single +2.0V to+5.5V supply. The MAX4594/MAX4596 switches arenormally open (NO), and the MAX4595/MAX4597 arenormally closed (NC). The MAX4596/MAX4597 pinoutsare optimized for the highest SC70 package off-isolationavailable.These switches have 10Ω max on-resistance (RON),with 1.5Ω max RON flatness over the analog signal range when powered from a +5V supply. TheMAX4594–MAX4597 offer low 0.5nA leakage currentsand fast switching times less than 40ns. They are packagedin an ultra-small 5-pin SC70 and 6-pin µDFN.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCell PhonesCommunications CircuitsDSL ModemsPCMCIA Cards

[no prices available]
