MAX4634EUB+
Analog Devices Inc.
Category: Switches and Multiplexers

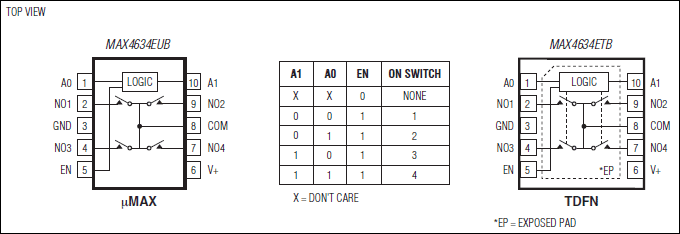

The MAX4634 fast, low-voltage, 4-channel CMOS analog multiplexer features 4Ω (max) on-resistance (RON). It offers RON matching between switches to 0.3Ω (max) and RON flatness of 1Ω (max) over the specified signal range. Each switch can handle V+ to GND analog signals. Off-leakage current is only 0.1nA (max) at +25°C. The MAX4634 features fast turn-on (tON) and turn-off (tOFF) times of 18ns and 11ns, respectively. All this comes in the tiny 10-pin µMAX® and 10-pin, 3mm x 3mm, TDFN packages.This low-voltage multiplexer operates from a +1.8V to +5.5V single supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility with +5V operation.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsSample-and-Hold Circuits
$2.11 - $7.36
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX4634EUB+ | $2.11 | $2.11 | Buy | ||||||
|
 |
element14 APAC | MAX4634EUB+ | 58 | 1 | * $5.73 | * $4.37 | * $3.82 | * $3.61 | * $3.38 | * $3.38 | Buy |
|
 |
Farnell | MAX4634EUB+ | 58 | 1 | * $5.67 | * $4.32 | * $3.77 | * $3.58 | * $3.34 | * $3.34 | Buy |
|
|
Mouser Electronics | 700-MAX4634EUB | 9417 | 1 | $6.66 | $4.41 | $3.46 | $3.16 | $2.74 | $2.74 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
