MAX653ESA+
Analog Devices Inc.
Category: Power Management ICs

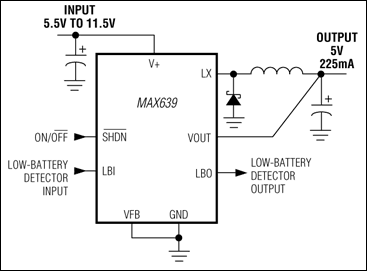

The MAX639/MAX640/MAX653 step-down switching regulators provide high efficiency over a wide range of load currents, delivering up to 225mA. A current-limiting pulse-frequency-modulated (PFM) control scheme gives the devices the benefits of pulse-width-modulated (PWM) converters (high efficiency at heavy loads), while using only 10µA of supply current (vs. 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads.The MAX639/MAX640/MAX653 input range is 4V to 11.5V, and the devices provide lower preset output voltages of 5V, 3.3V, and 3V, respectively. Or, the output can be user-adjusted to any voltage from 1.3V to the input voltage.The MAX639/MAX640/MAX653 have an internal 1A power MOSFET switch, making them ideal for minimum-component, low- and medium-power applications. For increased output drive capability, use the MAX649/MAX651/MAX652 step-down controllers, which drive an external P-channel FET to deliver up to 5W.Applications5V to 3.3V Conversion9V Battery to 5V, 3.3V, or 3V ConversionHigh-Efficiency Linear Regulator ReplacementPortable Instruments and Handy-Terminals
$0.00 - $7.95
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX653ESA+ | $2.20 | $2.20 | Buy | ||||||
|
 |
element14 APAC | MAX653ESA+ | 94 | 1 | * $6.19 | * $5.19 | * $4.88 | * $4.55 | * $4.33 | * $4.33 | Buy |
|
 |
Farnell | MAX653ESA+ | 94 | 200 | * $3.69 | * $3.69 | Buy | ||||
|
|
Mouser Electronics | 700-MAX653ESA | 384 | 1 | $7.82 | $5.35 | $4.73 | $4.01 | $3.27 | $3.27 | Buy |
|
 |
Newark | MAX653ESA+ | 94 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
