MAX7034AUI/V+
Analog Devices Inc.
Category: RF and Microwave

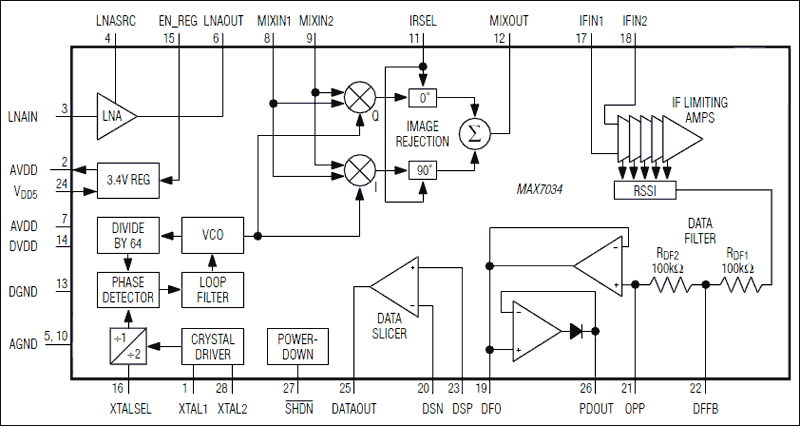

The MAX7034 fully integrated low-power CMOS super-heterodyne receiver is ideal for receiving amplitude-shift-keyed (ASK) data in the 300MHz to 450MHz frequency range (including the popular 315MHz and 433.92MHz frequencies). The receiver has an RF sensitivity of -114dBm. With few external components and a low-current power-down mode, it is ideal for cost-sensitive and power-sensitive applications typical in the automotive and consumer markets. The MAX7034 consists of a low-noise amplifier (LNA), a fully differential image-rejection mixer, an on-chip phase-locked loop (PLL) with integrated voltage-controlled oscillator (VCO), a 10.7MHz IF limiting amplifier stage with received-signal-strength indicator (RSSI), and analog baseband data-recovery circuitry.The MAX7034 is available in a 28-pin (9.7mm x 4.4mm) TSSOP package and is specified over the automotive (-40°C to +125°C) temperature range.ApplicationsAutomotive Remote Keyless EntryGarage Door OpenersHome AutomationLocal TelemetryRemote ControlsSecurity SystemsWireless Sensors
$2.68 - $8.20
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX7034AUI/V+ | $2.68 | $2.68 | Buy | ||||||
|
 |
element14 APAC | MAX7034AUI/V+ | 109 | 1 | * $4.54 | * $4.06 | * $3.98 | * $3.90 | * $3.82 | * $3.82 | Buy |
|
 |
Farnell | MAX7034AUI/V+ | 109 | 1 | * $5.90 | * $5.61 | * $5.35 | * $4.82 | * $4.82 | * $4.82 | Buy |
|
|
Mouser Electronics | 700-MAX7034AUI/V+ | 0 | 1 | $8.20 | $5.63 | $4.98 | $4.23 | $3.37 | $3.34 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
