MAX861ISA+
Analog Devices Inc.
Category: Power Management ICs

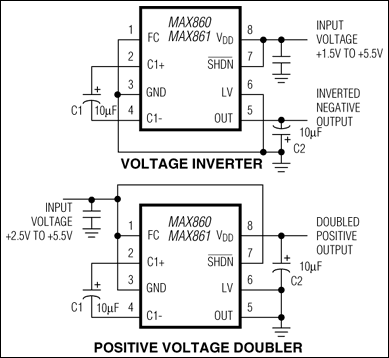

The MAX860/MAX861 charge-pump voltage converters invert input voltages ranging from +1.5V to +5.5V, or double input voltages ranging from +2.5V to +5.5V. Because of their high switching frequencies, these devices use only two small, low-cost capacitors. Their 50mA output makes switching regulators unnecessary, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of the load-current range, combined with a typical operating current of only 200µA (MAX860), provides ideal performance for both battery-powered and board-level voltage-conversion applications.A frequency-control (FC) pin provides three switching-frequencies to optimize capacitor size and quiescent current and to prevent interference with sensitive circuitry. Each device has a unique set of three available frequencies. A shutdown (active-low SHDN) pin reduces current consumption to less than 1µA. The MAX860/MAX861 are suitable for use in applications where the ICL7660 and MAX660's switching frequencies are too low. The MAX860/MAX861 are available in 8-pin µMAX® and SO packages.ApplicationsHandheld Instruments (PDAs, Palmtops)Interface Power SuppliesMedical InstrumentsOperational Amplifier Power SuppliesPortable Computing
$1.26 - * $4.46
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX861ISA+ | $1.39 | $1.39 | Buy | ||||||
|
 |
element14 APAC | MAX861ISA+ | 466 | 1 | * $4.46 | * $3.10 | * $2.81 | * $2.52 | * $2.45 | * $2.45 | Buy |
|
 |
Farnell | MAX861ISA+ | 466 | 1 | * $4.59 | * $3.19 | * $3.03 | * $2.87 | * $2.59 | * $2.59 | Buy |
|
|
Mouser Electronics | 700-MAX861ISA | 1083 | 1 | $3.67 | $3.07 | $3.07 | $2.69 | $2.03 | $1.82 | Buy |
|
 |
Newark | MAX861ISA+ | 93 | 1 | $1.26 | $1.26 | $1.26 | $1.26 | $1.26 | $1.26 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
