MAX96705GTJ/V+
Analog Devices Inc.
Category: Drivers and Interfaces

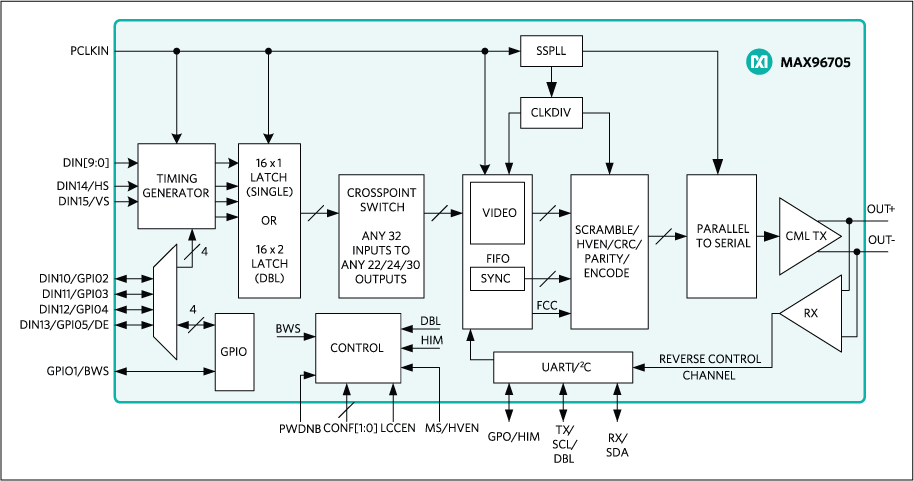

The MAX96705 is a compact serializer with features especially suited for automotive camera applications. It is function and pin compatible with the MAX9271. In high-bandwidth mode, the parallel-clock maximum is 116MHz for 12-bit linear or combined HDR data types. The embedded control channel operates at 9.6kbps to 1Mbps in UART, I²C, and mixed UART/I²C modes, allowing programming of serializer, deserializer, and camera registers independent of video timing. For driving longer cables, the IC has programmable pre/deemphasis. Programmable spread spectrum is available on the serial output. The serial output meets ISO 10605 and IEC 61000-4-2 ESD standards. The core supply range is 1.7V to 1.9V, and the I/O supply range is 1.7V to 3.6V. The MAX96705 is available in a 32-pin (5mm × 5mm) TQFN package with 0.5mm lead pitch, and operates over the -40°C to +115°C temperature range.Design Solution: GMSL SerDes Enables ADAS ›ApplicationsAutomotive Camera Applications
$0.00 - * $11.78
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX96705GTJ/V+ | 199 | 1 | * $11.78 | * $9.25 | * $8.62 | * $7.93 | * $7.87 | * $7.87 | Buy |
|
 |
Farnell | MAX96705GTJ/V+ | 199 | 1 | * $13.45 | * $10.10 | * $8.96 | * $8.24 | * $7.69 | * $7.69 | Buy |
|
 |
Mouser Electronics | 700-MAX96705GTJ/V+ | 2404 | 1 | $8.25 | $7.59 | $7.19 | $7.19 | $7.19 | $7.19 | Buy |
|
 |
Newark | MAX96705GTJ/V+ | 248 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
