SCAN921821TSM/NOPB
Texas Instruments
Category: Drivers and Interfaces
SCAN921821 Dual 18-Bit Serializer with Pre-Emphasis, IEEE 1149.1 (JTAG), and At-Speed BIST
$8.96 - $21.03
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | SCAN921821TSM/NOPB-ND | 0 | $16.95 | $13.46 | $12.58 | $12.58 | $10.77 | $10.77 | Buy | |
|
|
Ameya360 | SCAN921821TSM/NOPB | 190 | $14.00 | $14.00 | $14.00 | $14.00 | Buy | |||
|
 |
Arrow North American Components | SCAN921821TSM/NOPB | 0 | 2400 | $0.00 | Buy | |||||
|
 |
AVNET Asia Pacific | SCAN921821TSM/NOPB | 240 | $9.41 | Buy | ||||||
|
 |
AVNET Europe | SCAN921821TSM/NOPB | 190 | 240 | * $9.86 | * $9.34 | Buy | ||||
|
|
AVNET Express | SCAN921821TSM/NOPB | 1 | $11.54 | $11.27 | $10.84 | $10.84 | Buy | |||
|
|
Mouser Electronics | 926-SCAN921821TSMNPB | 0 | 240 | $12.28 | $11.19 | Buy | ||||
|
|
Perceptive | SCAN921821TSM/NOPB | 7130 | 1+ | Buy | ||||||
|
|
Texas Instruments | SCAN921821TSM/NOPB | 3050 | 1 | $13.08 | $13.08 | $13.08 | $11.42 | $7.88 | $7.88 | Buy |
|
|
Win Source | SCAN921821TSM/NOPB | 180 | 3 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 7.75 | 1ku |
| Clock Max(MHz) | 66 |
| Clock Min(MHz) | 15 |
| Communications | Yes |
| Compression Ratio | 6 to 1 |
| Data Throughput(Mb/s) | 2376 |
| ESD(kV) | 15 |
| Function | Serializer |
| ICC(Max)(mA) | 325 |
| Input Compatibility | LVTTL |
| JTAG1149.1 | Yes |
| No. of Tx | 2 |
| Number Transmitters(Count) | 2 |
| Operating Temperature Range(C) | -40 to 85 |
| Output Compatibility | LVDS,BLVDS |
| PLL Frequency(MHz) | 15-66 |

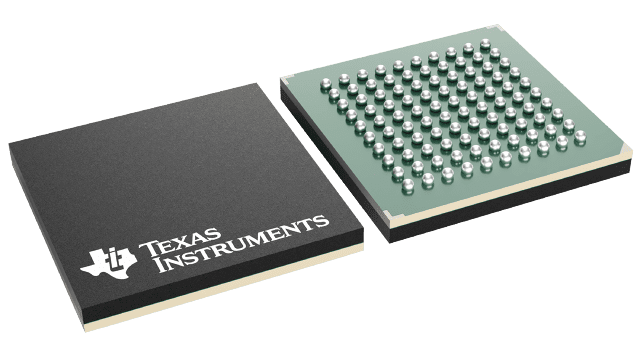

| Package Group | NFBGA |
| Package Size | mm2 |
| Parallel Bus Width | 18 |
| Parallel Bus Width(bits) | 18 |
| Payload/Channel(Mbps) | 1188 |
| Power Consumption(mW) | 594 |
| Rating | Catalog |
| Sensing & Imaging | Yes |
| Signal Conditioning | Pre-Emphasis |
| Start/Stop Bit | Yes |
| Supply Voltage(s)(V) | 3.3 |
| SupplyVoltage(Volt) | 3.3 |
| Total Throughput(Mbps) | 2376 |
