Texas Instruments

Category: Switches and Multiplexers

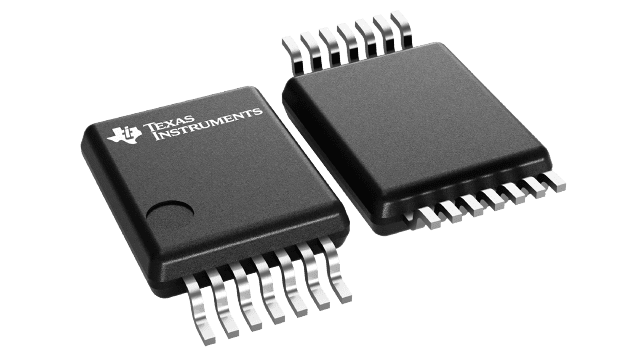

SN74CB3T3125 3.3-V Low-Voltage Quadruple FET Bus Switch with 5-V Tolerant Level Shifter

* $1.36 - * $2.28
Distributor SKU Stock MOQ 1 10 50 100 1000 10000 Purchase
DigiKey 296-33856-5-ND 290 $2.12 $1.57 $1.21 $1.07 $0.94 $0.87 Buy
Arrow Asia SN74CB3T3125PW 360 360 $0.97 $0.91 $0.86 Buy
Arrow Europe SN74CB3T3125PW 25 1 $1.46 $1.35 $1.35 $1.16 $0.89 $0.89 Buy
Arrow North American Components SN74CB3T3125PW 0 360 $1.93 $1.65 $1.65 $1.42 $0.97 $0.00 Buy
AVNET Europe SN74CB3T3125PW 180 90 * $1.36 * $1.04 * $1.04 Buy
AVNET Express SN74CB3T3125PW 14346 1 $1.61 $1.60 Buy
element14 APAC SN74CB3T3125PW 7 1 * $2.28 * $2.28 * $2.28 * $2.28 * $2.28 * $2.28 Buy
Farnell SN74CB3T3125PW 1 * $2.20 * $1.73 * $1.73 * $1.41 * $0.93 * $0.93 Buy
Mouser Electronics 595-SN74CB3T3125PW 3 1 $2.12 $1.57 $1.57 $1.22 $1.15 $1.05 Buy
Newark SN74CB3T3125PW $2.06 $1.75 $1.75 $1.41 $1.01 $1.01 Buy
Texas Instruments SN74CB3T3125PW 36730 1 $1.76 $1.76 $1.76 $1.45 $0.79 $0.79 Buy
Verical Marketplace SN74CB3T3125PW 51 7 $0.97 $1.65 $1.71 $1.42 $0.97 $0.00 Buy
Win Source SN74CB3T3125PW 16000 75 Buy

Parts in family

Technical Specifications

Lead Free Status Yes
ROHS Compliance Yes
Additional Features Low Power,5-3.3V Translation,IOFF
Approx. Price (US$) 0.65 | 1ku
Bandwidth(MHz) 100
Configuration SPST
ESD Charged Device Model(kV) 1
ESD HBM(kV) 2
ICC(Max)(uA) 20
Input/Ouput Voltage(Max)(V) 5.5
Input/Ouput Voltage(Min)(V) 0
Input/Output Continuous Current(Max)(mA) 128
Number of Channels(#) 4
Operating Temperature Range(C) -40 to 85
Package Group TSSOP,TVSOP,VQFN
Package Size mm2
Rating Catalog
Ron(Max)(Ohms) 9.5
Ron(Typ)(Ohms) 5
VCC(Max)(V) 3.6
VCC(Min)(V) 2.3
